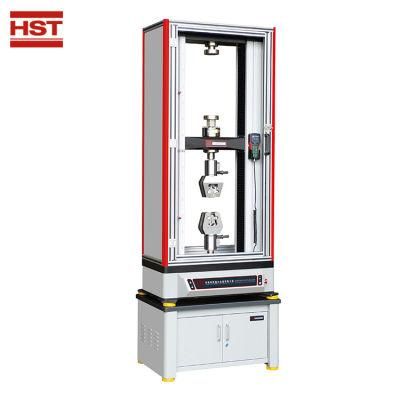

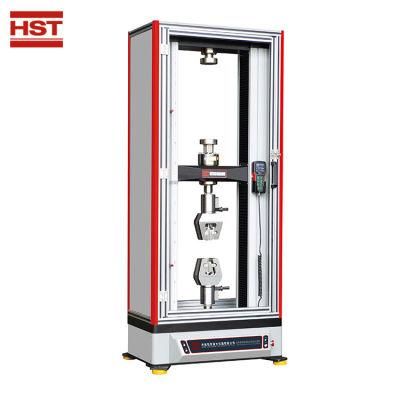

100/300/600/1000kn We Digital Mechanical Metal Materials Tensile Stress Tests Instrument
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：<1000KN
Base Info
- Model NO.：WE-100,300,600,1000D
- Accuracy Grade：1
- Load Way：Hydraulic
- Loading Method：Static Load
- Display：Computer
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Delivery Time：3 Days After Get Tt Payment
- Structure：6 Columns
- Load Accuracy：1 Percent
- Load Resolution：1,300000
- Load Range：2%~100%Fs
- Piston Speed：0-140mm,Min
- Crossbeam Lifting Speed：190mm,Min
- Max. Effective Tension Test Space：750mm (Can Be Customized)
- Center Spacing Between Columns：490mm
- Max. Piston Stroke：250mm
- Transport Package：Standard Export Packing
- Specification：1100*780*2200mm
- Trademark：HST
- Origin：China
- HS Code：9031809090
- Production Capacity：200 Sets Per Month
Description
250mm
