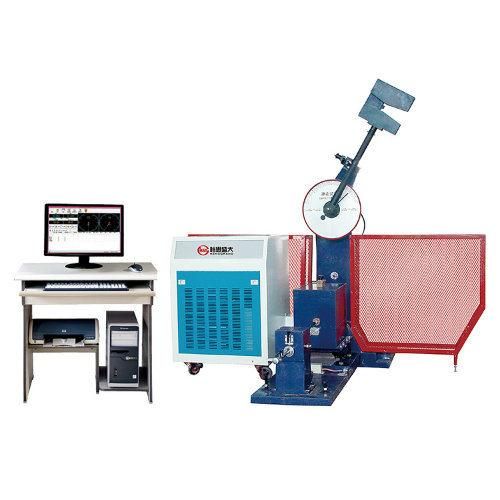

Touch Screen Impact Tester (JBS-500B)
Jinan Kason Testing Equipment Co., Ltd.- Type：Impact Testing Machine
- Maxcapacity：150j, 300j, 250j, 500j
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
Base Info
- Model NO.：JBS-500B
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC380V
- Product Name：Digital Charpy Impact Test Machine
- Application：Impact Strength Test for Metal Materil
- Pre-Rising Angle of The Pendulum：150c
- Specimen Bearer Span：40+0.2mm
- Round Angle of The Jaw：R1-1.5mm
- Round Angle of Impact Edge：R2-2.5mm,R8±0.05mm
- Angle Accuracy：0.1c
- Standard Specimen Dimension：10mm*10(7.5,5)mm*55mm
- Warranty：12months
- Power Supply：3phs, 380V, 50Hz or 220V,60Hz
- Transport Package：Standard Exporting Plywood Case
- Specification：1000*1000*1560mm
- Trademark：HST
- Origin：China
- HS Code：9024109000
- Production Capacity：100 Set,Month
Description
6502300 4. Features:
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.

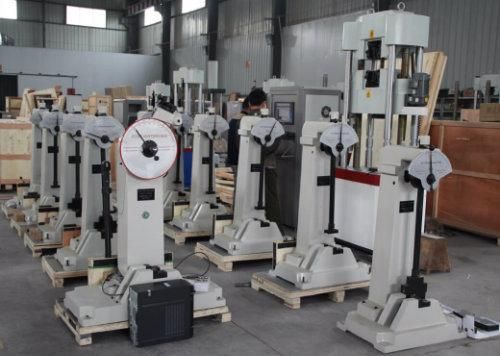

Batch production of the impact test machine
Other models of impact test machine for your choice:
Standard exporting plywood case with free fumigation:
Impact test machine with CE and ISO approval
