Laboratory Equipment Jb-500b 500/250j Charpy Impact Test Machine

Jinan Kason Testing Equipment Co., Ltd.
  • Max Diameter of Workpiece:<500mm
  • Mass Scope of Workpiece:<900kg
  • Type:Impact Testing Machine
  • Maxcapacity:300j,500j,800j
  • Accuracy Grade:1
  • Load Way:Electronic Load

Base Info

  • Model NO.:JB-500B
  • Loading Method:Static Load
  • Display:Needle
  • Control:Manual Control
  • Weight:500-1000Kg
  • Power Source:AC220V
  • Oil Cylinder Position:Under
  • Delivery Time:3 Days After Get Tt Payment
  • Impact Speed:5.2m,S
  • Specimen Bearer Span:40-40.2mm
  • Pre-Rising Angle of The Pendulum:150
  • Transport Package:Standard Export Packing
  • Specification:2200× 650× 1960mm
  • Trademark:HST
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:900 Sets Per Month

Description

JB-300BJB-500BJB-800Bimpact energy150/300J250/500J500/800JThe distance between the
pendulum shaft and impact  point750mm850mm800mmImpact speed5.2m/s5.4 m/s5.9m/sPre-rising angle of the pendulum150°Specimen bearer span40+0.2mmRound angle of the jawR1-1.5mmRound angle of impact edgeR2-2.5mm,R8±0.05mmAngle accuracy0.1°Standard specimen dimension10mm×10(7.5/5)mm×55mmPower supply3phs, 380V, 50Hz Or 220V,60HzDimensions (mm)2124 x 600 x 13402200 ×650 ×19602450 x 1200 x 2455
 Net Weight (kg)45065023004. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net;
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JB-300BJB-500BJB-800B
150J/300J--2 pcs250J/500J--2 pcs500J/800J--2 pcs

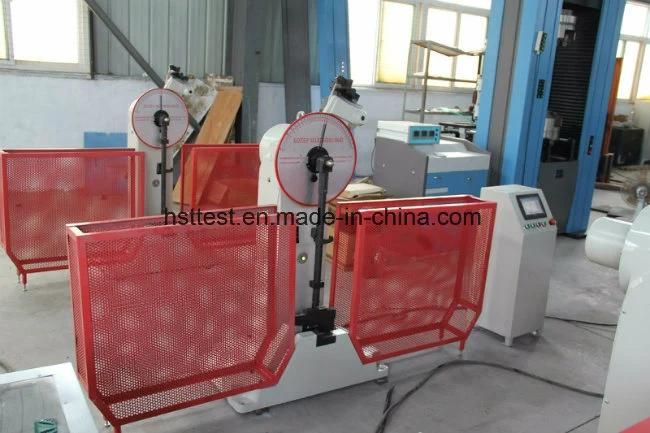

Machines in store show:
Laboratory Equipment Jb-500b 500/250j Charpy Impact Test Machine

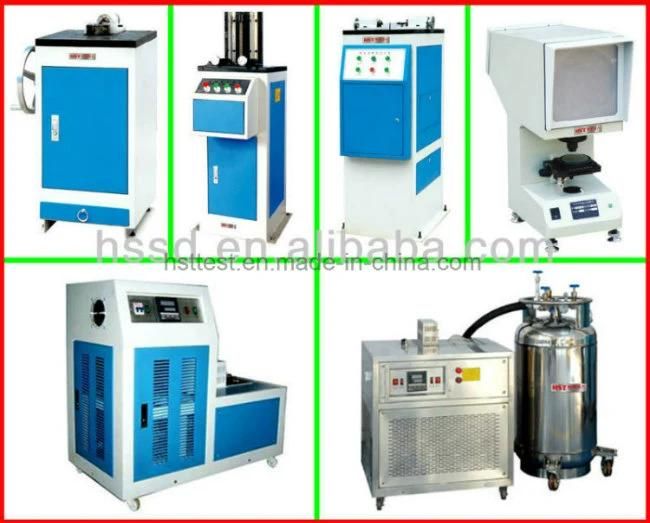

Dear Customer, we also have the below impact teters and attached machines for choice:
Dial Display impact testing machines
Digital control impact testing machines
Computer display impact testing machines
Computer automatic low temperature impact testing machines from minus 60 to 190 degree
Projector for impact specimen
Broaching machine for specimen
Impact testing low temperature chambers

Laboratory Equipment Jb-500b 500/250j Charpy Impact Test Machine
