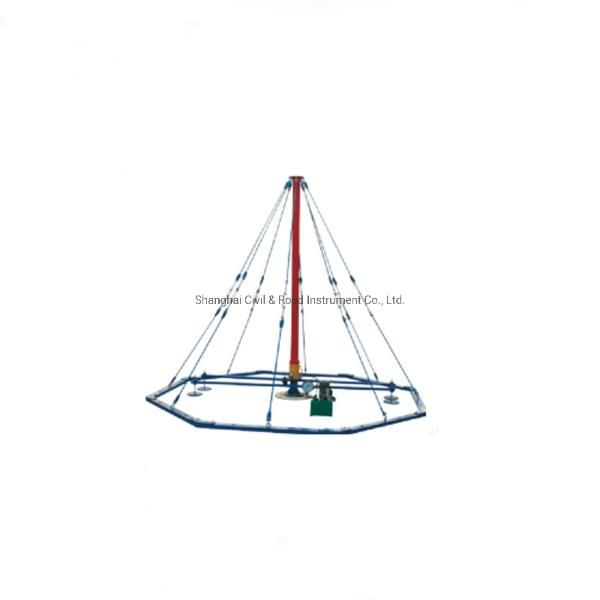

500kn Plate Bearing Testing Apparatus
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：75kgs
- Type：Plate Bearing Equipment
- Maxcapacity：No
Base Info
- Model NO.：STK-50
- Accuracy Grade：1
- Load Way：Plate Bearing Equipment
- Loading Method：No
- Display：Digital
- Control：Manual Control
- Weight：200kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stk-50 500kn Plate Bearing Testing Apparatus
- Application：Estimate Bearing Capacity of Road Base or Ground B
- Load Plate：2500 Cm2 1000cm2
- Hydraulic Jack Max. Load：50t
- Hydraulic Jack Journey：80mm
- Electric Oil Pump Rated Pressure：63MPa
- Pressure Range：0-500kn
- Transport Package：Wooden Case
- Specification：1CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STK-50 Accuracy Grade 1 Load Way Plate Bearing Equipment Loading Method No Display Digital Control Manual Control Weight 200kgs Power Source AC220V Oil Cylinder Position No Product Name Stk-50 500kn Plate Bearing Testing Apparatus Application Estimate Bearing Capacity of Road Base or Ground B Load Plate 2500 Cm2 1000cm2 Hydraulic Jack Max. Load 50t Hydraulic Jack Journey 80mm Electric Oil Pump Rated Pressure 63MPa Pressure Range 0-500kn Transport Package Wooden Case Specification 1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STK-50 500KN Plate Bearing Testing Apparatus| Product name | STK-50 500KN Plate Bearing Testing Apparatus |
| Application | Plate Bearing Testing Apparatus used to estimate bearing capacity of road base or ground base ,which is filled and compacted after coarse and fine grained soil, also can used to count deformation modulus of even groundsill. |
| Load plate | 2500 cm2 1000cm2 |
| Hydraulic jack Max. load | 50T |
| Hydraulic jack journey | 80mm |
| Electric oil pump rated pressure | 63MPa |
| Pressure range | 0-500kN |
