Laboratory Water Immersion Test Chamber Drip Rain Simulation Test Equipment

Dongguan Haida Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Accuracy Grade：0.5
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V

Base Info

  • Model NO.：HD-E710-4
  • Warranty Period：12 Months
  • Actory Production：OEM,Obm
  • Application：Ipx3,4, 5,6,7,8
  • Model：Rain Spray Tester
  • Studio Size：(D*W*H)80 *130 *100cm
  • Swing Pipe Diameter：80cm
  • Testing Temperature：Room Temperature
  • Specimen Rotative Speed：1-3r,Min (Adjustable)
  • Power：1 Phase, 220V, 5kw
  • Model Type：HD-E710
  • Transport Package：Strong Wooden Case
  • Trademark：Haida
  • Origin：China
  • Production Capacity：60 Sets,Month

Description

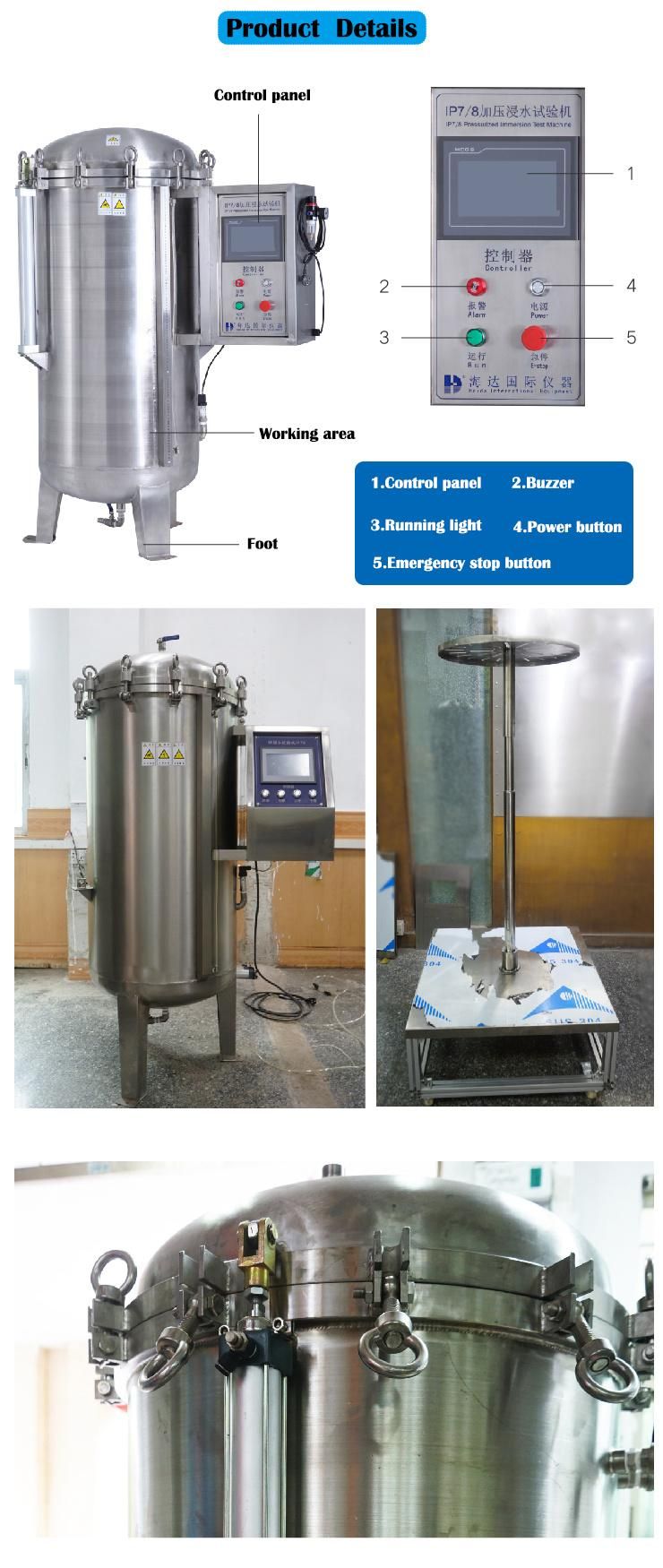

ItemSpecificationInternal dimensionDiameter 1000* height 1000mmChamber materialSUS#304, thickness 2mmWater depthSimulate 50m depth by air compressorWater pressureAmbient to 0.5MPa, pressure gauge accuracy 0.25 degreeTimer0 ~ 99min, 99secSample lift devicePortable stainless steel basketWater level displayWater pipe with scaleProtection devicePressure protection and anti-explosive device, water drain and pressure release deviceSafety protectionPower overload protection, short circuit protection, grounding protection, alarm display

Classify:

Rain Testers With Good Quality, A complete set of IP waterproof test equipment is:
IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
IPX3/4 handheld drench water test equipment (with lift stents);
IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
Auxiliary water supply, filter system (with the above products, especially blunt water device).

Application:

Rain tester manufacturer applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; It provide an important testing data for scientific research, product development and quality control

Laboratory Water Immersion Test Chamber Drip Rain Simulation Test Equipment
