PC Servo Tensile Test Machine Rubber Strength Tester

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Tensile Testing Machine
  • Maxcapacity：2000kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-B607-S
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Test Speed：25~300 mm,Min (Convertible)
  • Load Accuracy：< ± 0.5%
  • Display and Control：Computer
  • Temperature Range：-40 to 150 Degree
  • Stroke：700mm or Custom
  • Motor：AC Servo Motor
  • Rotation Method：High Precision Ball Screw Rod
  • Operation Mode：Controlled by PC
  • Effective Width：400 mm
  • Transport Package：Strong Wooden Case
  • Specification：ASTM D903 Cns-11888 JIS K6854, Pstc-7
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Set Per Month

Description

ItemsSpecificationCapacity (optional)2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kgUnit (Switchable)G, KG, N, KN, LBLoad Resolution1/100,000Load Accuracy< ± 0.5%Stroke (exclude the grips)400   500   600 mm (can be adjusted  higher by requirements)Test speed0.1~500 mm/min  SelectableEffective Width400 mmOperation ModeControlled by PCWeight (exclude the grips)130 KgDisplayPC  (can be programmed any of the customer's data )MotorAC Servo MotorDimension(L×W×H)-Main Unit1200×600×1500cmDimension of the testing space400×400×700mmTesting width40cm ( can be widened by requirements)Power1#, 220V, 10ARotation methodhigh precision ball screw rodFixturecan be customized stretching and compressing fixtureItemsSpecificationTemperature range-40°C ~150°CControl methodP.I.D Automatic calculationHumidity range20%~98%Tem & Hum accuracy±0.5°C, ±2.5% RHTemp& Humid regularity±2°C, ±3% RHCompressorFrance TecumsehCooling Speed1 °C/ minCounterLED,0~9999.99Inner materialSUS 304 Stainless steelInner Chamber size(L×W×H)40×40×70cm (can custom)

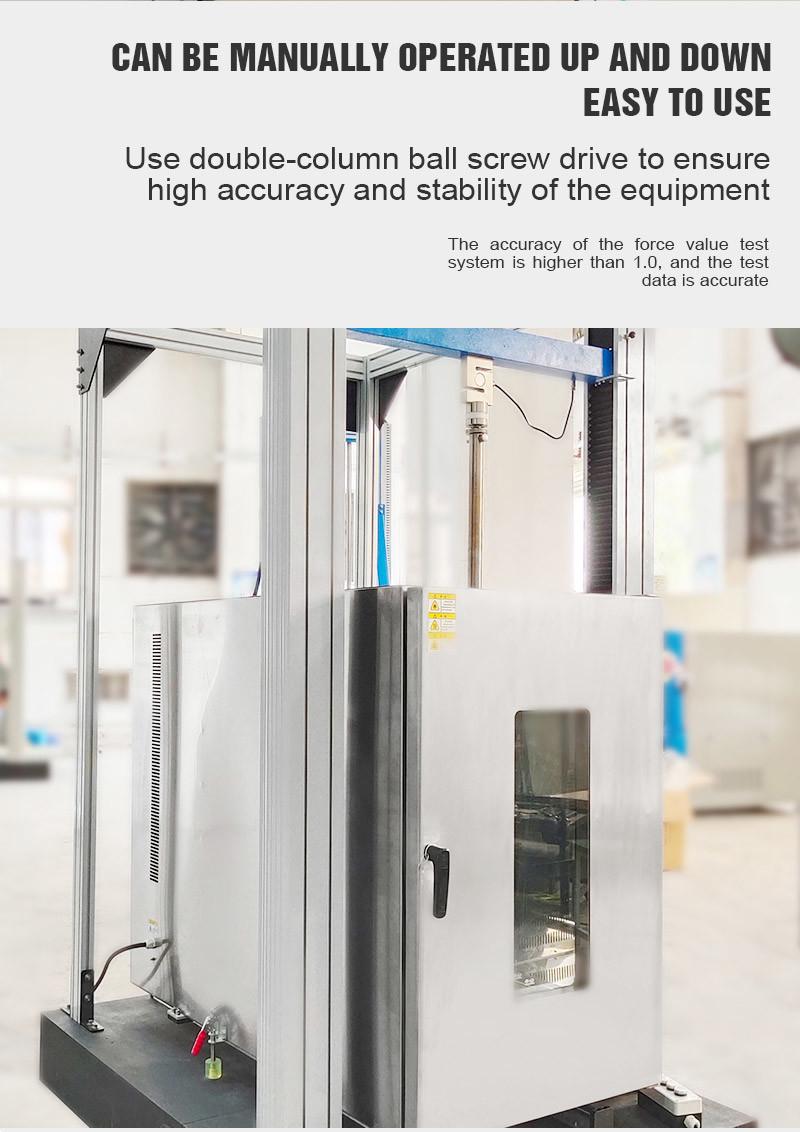

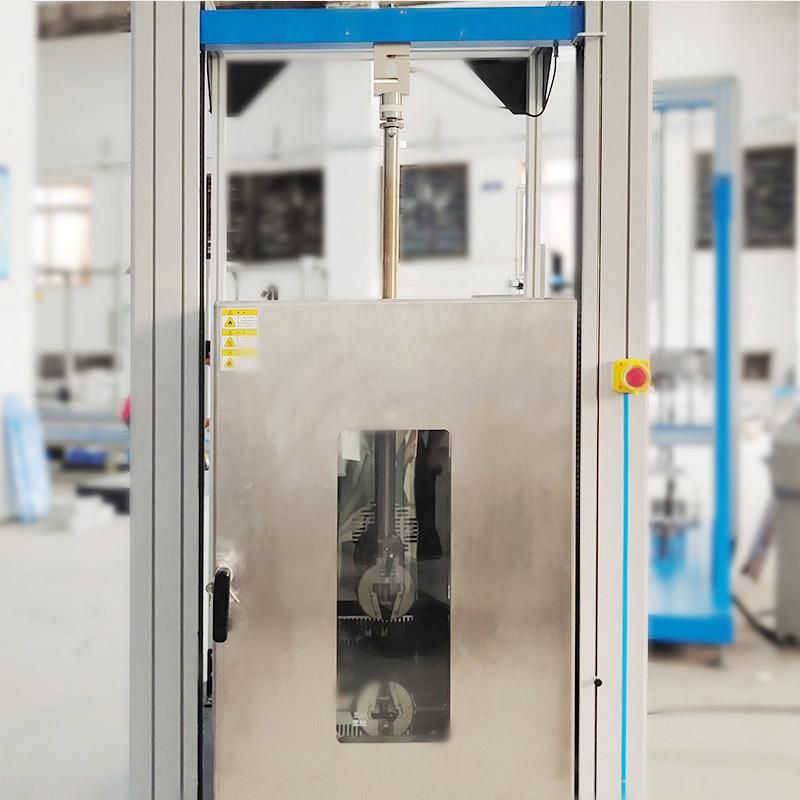

Features of High Low Temperature Universal Tensile Testing Machine:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
3. Data transmission: RS232.
4. Displacement resolution: 0.001mm.
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Languages:English.
PC Servo Tensile Test Machine Rubber Strength TesterPC Servo Tensile Test Machine Rubber Strength TesterPC Servo Tensile Test Machine Rubber Strength Tester

Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

PC Servo Tensile Test Machine Rubber Strength Tester
FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve  problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the  product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
