• Model NO.：GD-3536-1
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• ASTM D92：Cleveland Flash and Fire Point Apparatus
• Cleveland Flash Point Tester：for All Petroleum Products Except Fuel Oils
• Test Method：Cleveland Open Cup
• Applicable Standards：ASTM D92
• Measurement Range：Room Temperature~400c
• Application：Test Petroleum Products with Flash Points Above 79
• Features：Semi-Auto Model, Reliable, High Cost-Effective Per
• Packing Size：73*41*40cm
• Gross Weight：10kg
• Warranty Period：1 Year
• Transport Package：Packed in Veneer Case
• Specification：ASTM D92
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. GD-3536-1 Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under ASTM D92 Cleveland Flash and Fire Point Apparatus Cleveland Flash Point Tester for All Petroleum Products Except Fuel Oils Test Method Cleveland Open Cup Applicable Standards ASTM D92 Measurement Range Room Temperature~400c Application Test Petroleum Products with Flash Points Above 79 Features Semi-Auto Model, Reliable, High Cost-Effective Per Packing Size 73*41*40cm Gross Weight 10kg Warranty Period 1 Year Transport Package Packed in Veneer Case Specification ASTM D92 Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

GD-3536-1 Cleveland Flash and Fire Point Tester by Cleveland Open-Cup Method ASTM D92



Introduction:

The flash point is only one of a number of properties that should be considered in assessing the overall flammability hazard of a material.

The Semi-automatic cleveland flash and fire point tester is used to determine flash and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C (175°F).

The Cleveland Open Cup Flash Point Tester can accurately determine the flash and fire point temperatures of viscous petroleum products including oils and bitumens over an extended temperature range.



Features:

1. The Cleveland Open Cup Flash Point Tester adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously adjustable.Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. The Cleveland Open Cup Flash Point Tester is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. The Cleveland Open Cup Flash Point Tester is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
Accurate heating rate.The instrument can do test automatically.
Attention: Operator only need to observe the flash point appearing. The cost performance is high.


Specifications:

1. Power supply:  AC(220±10%)V, 50Hz.
2. Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400ºC.
3. Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.
4. Temperature display: LCD shows temperature parameters. The display range is 0ºC~400ºC, display accuracy is 0.1ºC.
5. Flash point detecting device: It applies the test flame automatically.
6. Temperature sensor: RTD, PT100
7. Igniting device: (1) Ignition source: coal gas (or civil gas); (2) Flame diameter is 3.2mm~4.8mm
8. Ambient temperature: (-10∼50)ºC
9. Relative humidity: ≤85%
10.Maximum power consumption: 650W
11.Dimension: 340mm*320mm*450mm (Temperature sensor is included)

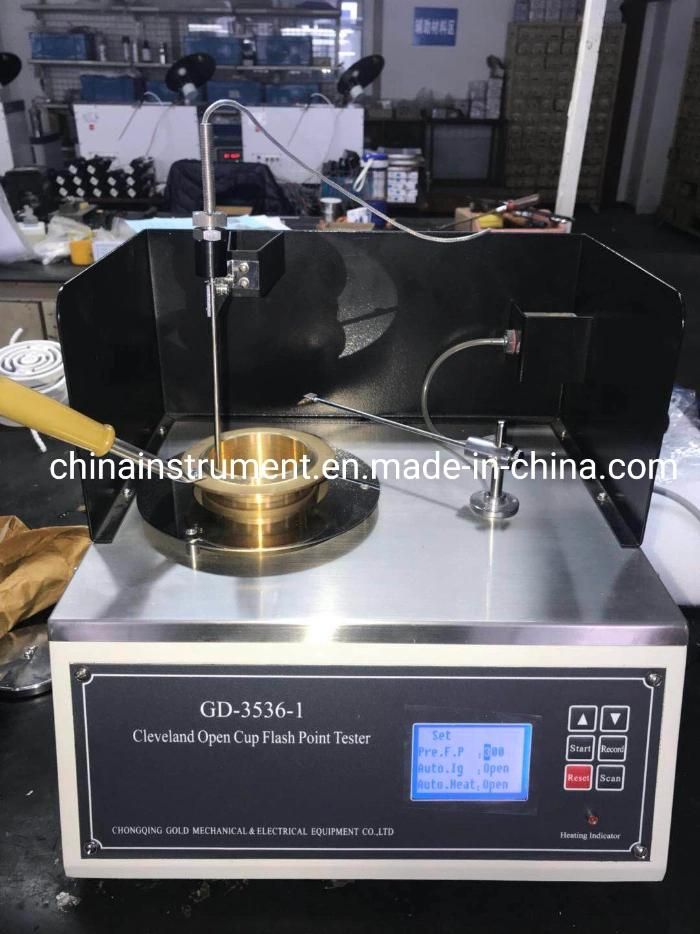

Real Picture of ASTM D92 Cleveland Open Cup Flash Point Tester
