• Model NO.：GD-8019
• Production Capacity：200units,Month

Basic Info.

Model NO. GD-8019 Production Capacity 200units/Month

Product Description

GD-8019 Evaporation Bath Method Existent Gum Content Tester for Aviation Gasoline and Engine Fuels



Summary





This instrument is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels

 by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable

to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent

gum content of aviation turbine fuel)



Features:



I. Main technical features

1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.

2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled

by an independent flowmeter. It can do 3 determinations at the same time.

3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet

requirements of standard.



II. Main technical specifications

1. Power supply:    AC(220±10%)V,50Hz,2500W

2. Dimension of evaporation bath:   φ260mm×130mm

3. Sample positions:   3 positions

4. Dimension of sample positions:   φ51mm×70mm

5. Working temperature:    (160~165)ºC

6. Temperature control:     Automatic

7. Temperature display:     Digital display

8. Flow display:    Displayed by a ball float type flowmeter.

9. Working pressure of air reducing valve:  0.035MPa.

10.Air source:     External connection,over (1000±150)mL/s

11.Dimension:    590mm×480mm×340mm(Thermometer holder is not included)

Note:A air compressor is equipped

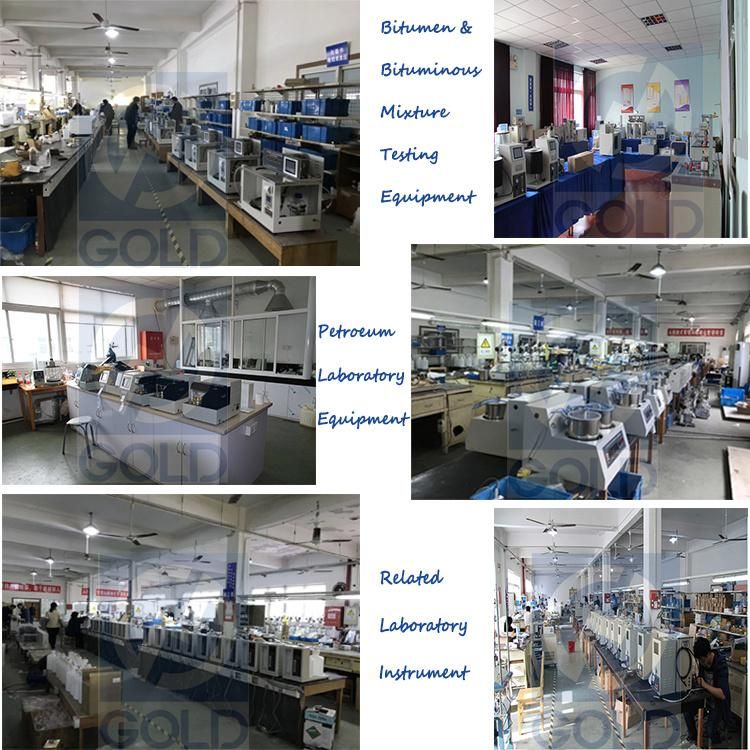

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.



At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.







Gold Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:steel tensile test

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service



Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And

we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.



Packing & Delivery

Goods are packed in veneer case, which is firm and safe for oversea shipment.
