• Model NO.：GD-0193
• Weight：0-100Kg
• Power Source：AC220V
• Rpvot：Lubricating Oil Oxidation Stability Tester
• Oxidation Stability：Test The Oxidation Stability of Steam Turbine Oil
• ASTM D2272：Test The New Mineral Insulating Oil Containing 2
• Rbot：ASTM D2272 Oxidation Stability Test
• Temperature Control Range：Room Temperature - 200.0 C
• Features：Automatically Determine Pressure, Record Data, Cal
• Test Method：Rotating Pressure Vessel Method
• Sample Quantity：2PCS
• Power Supply：220V 50Hz
• Warranty：1 Year
• Transport Package：Venner Case
• Specification：89*70*112CM
• Trademark：GOLD
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. GD-0193 Weight 0-100Kg Power Source AC220V Rpvot Lubricating Oil Oxidation Stability Tester Oxidation Stability Test The Oxidation Stability of Steam Turbine Oil ASTM D2272 Test The New Mineral Insulating Oil Containing 2 Rbot ASTM D2272 Oxidation Stability Test Temperature Control Range Room Temperature - 200.0 C Features Automatically Determine Pressure, Record Data, Cal Test Method Rotating Pressure Vessel Method Sample Quantity 2PCS Power Supply 220V 50Hz Warranty 1 Year Transport Package Venner Case Specification 89*70*112CM Trademark GOLD Origin Chongqing China HS Code 9031809090 Production Capacity 100 Set/Month

Product Description

Oxidation Stability Test Apparatus of Steam Turbine Oils (RPVOT) per ASTM D2272



Oxidation Stability Tester:

The Oxidation Stability Tester can be applied to Turbine Oil Testing, Wear Metals Testing and Oil Condition Monitoring Testing. And the it is mainly used for lubricants with antioxidant additive packages to help monitor fluid health and provide an estimate of remaining life.

RPVOT is a more proactive approach because you can respond to pending problems before permanent harm is done to the oil or machine. The test is ideal for large oil volumes with low makeup fluid requirements and also severe-duty applications.


Application:

1. Oxidation stability testing of formulated engine oils
2. Oxidation stability testing of turbine oils
3. Oxidation stability testing of base oils


Features:

1. The Oxidation Stability Tester can automatically perform pressure detection, data recording, oxidation time calculation on the oil sample to be tested, and can automatically end the test.
2. The whole test process of this instrument is carried out automatically without human participation, which reduces the labor intensity of the operator and improves the accuracy of the test results. It is the best choice for modern enterprises.
3. The Oxidation Stability Tester can display the test curves and results on the screen, or save them automatically and print them as required.
4. The key feature of this Oxidation Stability Test Apparatus is: the automatic control of the test process is realized by the laptop computer. The test process does not require manual intervention, and can be used for parallel testing of two samples.



Specifications:

1	Power supply	AC220V±10%
2	Heating tube power	2500W
3	Range for pressure sensor	(0~1.6)MPa,accuracy:±2‰
4	Temperature controll range for oil bath	Room temperature~200.0ºC, continuously adjustable.150.0ºC in common use
5	Temperature control accuracy	±0.1ºC
6	Test sample	Two-bomb design, can do two samples at one time. Convenient to do parallel test
7	Rotation speed	(100±5)r/min
8	Included angle between oxygen bomb and water level	30°
9	Volume of oil bath	30L
10	Dimension	550mm×800mm×1000mm
11	Net weight	About 45Kg

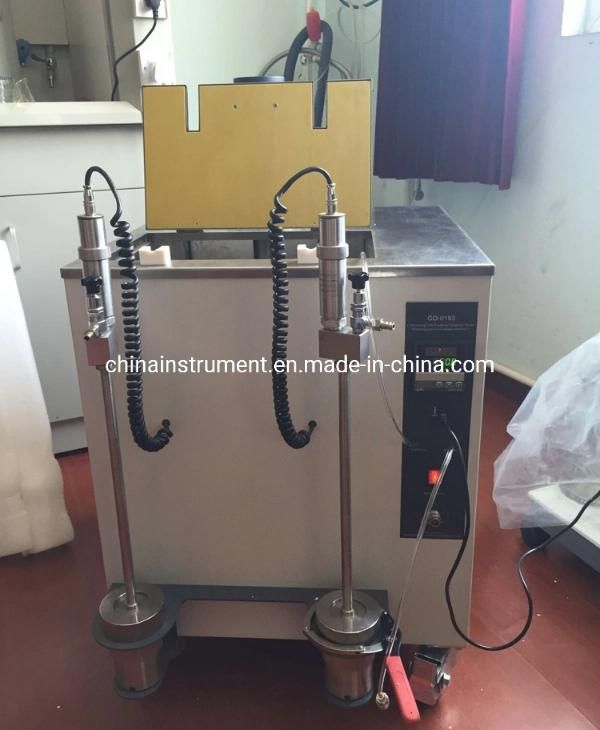

Real Picture of RPVOT ASTM D2272 Oxidation Stability Test Apparatus:
