• Model NO.：GD-7305A
• Temperature Control Range：(Room Temperature ~ 99.9)C
• Application：Lubricating Oil
• Temperature Control Accuracy：+,-1c
• Stirring Rate：(1500+,-15)R,Min
• Ambient Temperature：(Room Temperature ~ 35)C
• Display Display：It Adopts LCD to Show The Diagram
• Warranty：12 Months
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：100 Units , Month

Basic Info.

Model NO. GD-7305A Temperature Control Range (Room Temperature ~ 99.9)C Application Lubricating Oil Temperature Control Accuracy +/-1c Stirring Rate (1500+/-15)R/Min Ambient Temperature (Room Temperature ~ 35)C Display Display It Adopts LCD to Show The Diagram Warranty 12 Months Transport Package Plywood Trademark GOLD Origin Chongqing China HS Code 9031809090 Production Capacity 100 Units / Month

Product Description

ASTM D2711 Demulsibility Bath for Demulsibility Characteristics of Lubricating Oils



Introduction:

The Oil Demulsibility Bath is designed and made as per standards GB/T7305 Petroleum oils and synthetic fluids--Determination of demulsibility characteristics, GB/T7605 Determination of demulsibility characteristics of turbine oils in service and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. The Demulsibility Tester is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.


Key Features:

1. This Demulsibility Bath adopts small bath and desktop structure. It is easy to operate and good-looking. It is the improved product of our company.
2. It adopts electric motor to stir automatically. The temperature is accurate and uniform. It can do determination for 3 samples one by one.
3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.
4. It adopts LCD to show the diagram. Intuitive and clear.
5. Man-machine dialog. Menu type input. Easy to use.


Main Parameters:


1	Power supply	AC(220±10%)V,  50Hz
2	Temperature control range	(Room temperature ~ 99.9)ºC
3	Temperature control accuracy	±1ºC
4	Stirring rate	(1500±15)r/min
5	Ambient temperature	(Room temperature ~ 35)ºC
6	Relative humidity	≤85%
7	Maximum power consumption	≤2000W
8	Dimension	550mm*340mm*720mm

Note: If the control temperature is required to be lower than room temperature, you can equip our company's ZL-1 Portable Refrigerator.

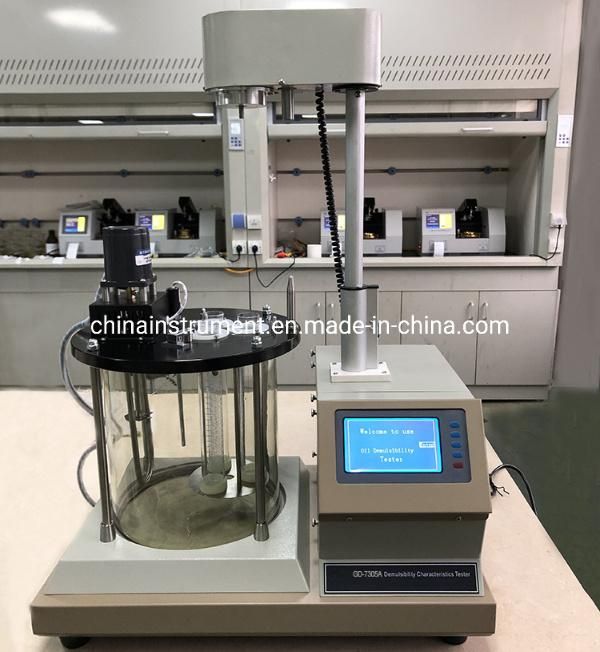

Real Picture:
