100kv Automatic Insulating Oil Dielectric Strength Tester Transformer Oil Bdv Test Machine

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Standards：IEC60156,Is6792,BS5874,VDE0370-5, Astmd877, Astmd1
  • Output Voltage：AC 0V~80kv
  • Measurement Accuracy：±(1% of Full Scale + 2 Digits)
  • Resolution：0.1kv
  • Temperature Measurement Range：0°c to 70°c, or Better
  • Temperature Resolution：1°c, or Better

Base Info

  • Model NO.：GDYJ-502A
  • Data Storage：100 Groups
  • Weight：38kg
  • Power Supply：AC220V, 50Hz
  • Transport Package：Standard Wooden Case
  • Specification：620*430*330mm
  • Trademark：GOLD
  • Origin：Chongqing China(Mainland)
  • HS Code：9031809090
  • Production Capacity：500pieces,Month

Description

No.ParametersSpecifications1StandardsIEC60156/IS6792/BS5874/VDE0370-5, ASTMD877, ASTMD18162Output voltageAC 0V~80KV3Rate of voltage rise0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%4Measurement accuracy±(1% of full scale + 2 digits)5Max. test times96Stir time0~999s7Wait time0~999s8Resolution0.1KV9Temperature measurementYes10Temperature measurement range0°C to 70°C, or better11Temperature resolution1°C, or better12Data storage100 groups13Weight38kg14Size550 mm*500mm*580mm15Power supplyAC220V, 50Hz16Working environmentRoom temperature to 45°C, humidity<85%17Display7 inch colorful LCD with touch pad18PrinterYes19Oil Vessle1

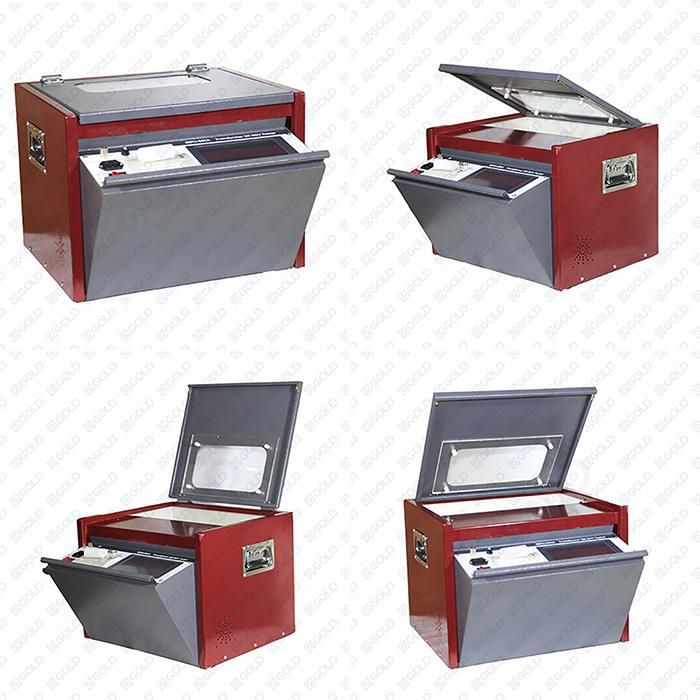

  • Product Show:
100kv Automatic Insulating Oil Dielectric Strength Tester Transformer Oil Bdv Test Machine

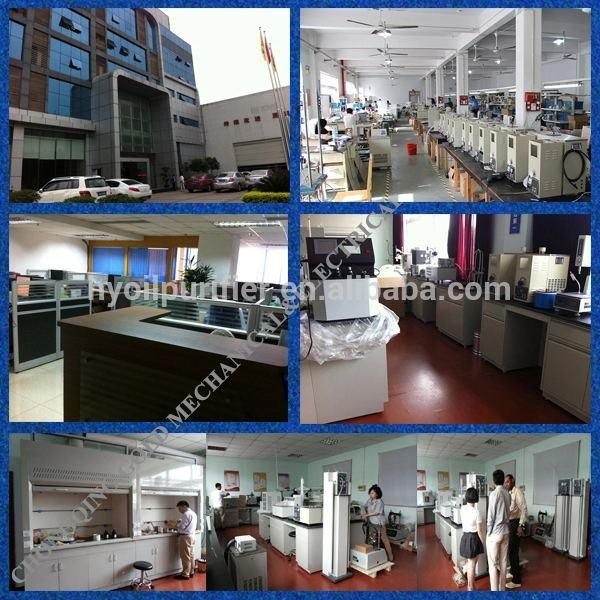

2. company information



CHONGQING GOLD MECHANICAL & ELECTRICAL EQUIPMENT CO., LTD

        100kv Automatic Insulating Oil Dielectric Strength Tester Transformer Oil Bdv Test Machine

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.

And we have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!

3. Overseas exhibition

100kv Automatic Insulating Oil Dielectric Strength Tester Transformer Oil Bdv Test Machine


4. Our Services

Pre-sale Service:

♣Inquiry will be replied within 24 hours.

♣Welcome to visit our factory.

♣Technical datas and operation manual sent for evaluation.

After-sale Service:

♣Training how to install the machine, training how to use the machine at our factory.

♣Engineers available to service machinery overseas at customers' cost.


5. FAQ
  • What's the delivery lead time?

"For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person."

  • What's the payment term?

"For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable."

  • What's the warranty period?

"Warranty period is 1 year"
