• Model NO.：GD-IEC 60754
• Control Way：Computer
• Size：1,500 (W) *500 (D) *600 (H)mm
• Warranty：12 Months
• Transport Package：Standard Exported Case
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD-IEC 60754 Control Way Computer Size 1,500 (W) *500 (D) *600 (H)mm Warranty 12 Months Transport Package Standard Exported Case Trademark GOLD Origin China HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

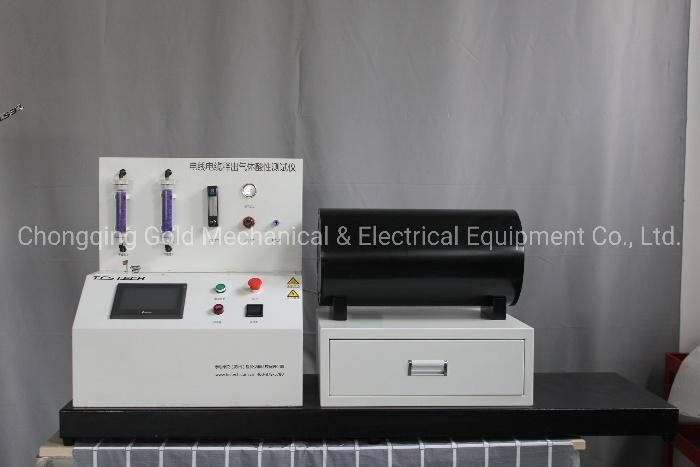

Cable Corrosion Test Machine of Cable Flammability Analyzer IEC 60754

Introduction:
Cable corrosion test apparatus is used to test the acidity of the gas that released during combustion from cable or optical cable components material; The equipment is designed and produced on the basis of GB/T 17650 and IEC 60754.The cable material is processed by prius tube furnace, and then the pH value and conductivity of the gas that generated in combustion process are measured,so that the cable material of acidic,as well as concentration of halogen acid gas volume, PH, conductivity, etc, can be determined.

Standard
1. IEC 60754-1 Ed. 2.0 b:1994
2. IEC 60754-2 Ed. 1.0 b:1991
3. GB/T 17650
 Feature:1, The tester designed with optimized structure, logical layout and easy to operate.
2, Al the fixtures are made of stainless steel.
3, The effective length of the tube-type furnace is 500~600mm, inner diameter is 40~60mm, with adjustable electric systems.
4, Equipped with imported thermocouple from United States.
5, The size of the combustion boat is length 45~100mm, width 12~30mm, depth 5~10mm.
6, The electrical conductivity measuring range is 0.01uS/mm~100uS/mm.

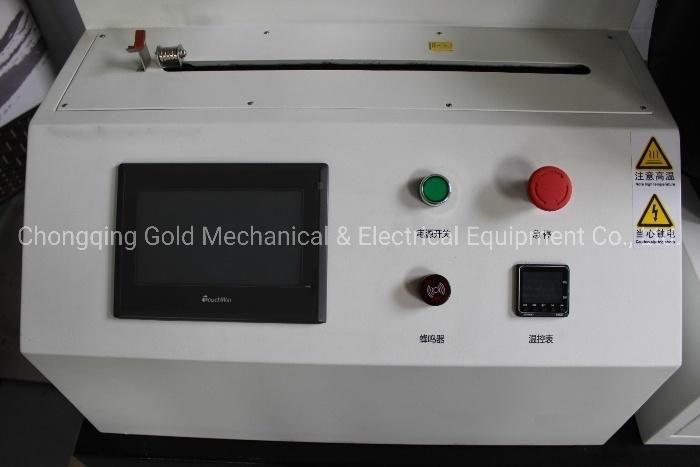

7, The control system using an electronic temperature control, intelligent control tube furnace temperature.

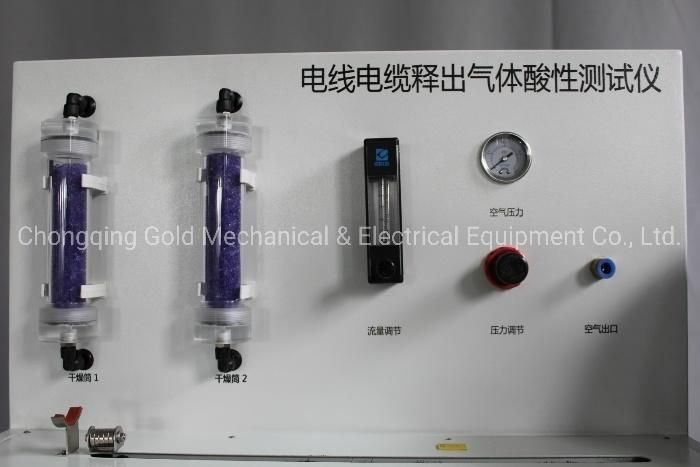

8, Equipped with two gas collection bottles.





Specification:

Size	1,500 (W) x 500 (D) x 600 (H) mm
Power	AC 220V, 50 / 60Hz, 15A
Warranty	12months
Manual	supplied
Weight	60KG
Control way	computer
