• Model NO.：GD-0623
• Saybolt Viscometer：Saybolt Viscometer Bath
• Instrument Structure：Desk Type
• Working Mode：Parallel Test
• Receiving Flask：(60+,-0.0)5ml
• Heating Power of Bath：1000W
• Working Temperature of Bath：Room Temp.~240.0c
• Temperature Control Accuracy：+,-0.1c
• Timing Range：0.0s~999.9s
• Timing Accuracy：+,-0.1s
• Transport Package：Wooden Case
• Trademark：GOLD
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0623 Saybolt Viscometer Saybolt Viscometer Bath Instrument Structure Desk Type Working Mode Parallel Test Receiving Flask (60+/-0.0)5ml Heating Power of Bath 1000W Working Temperature of Bath Room Temp.~240.0c Temperature Control Accuracy +/-0.1c Timing Range 0.0s~999.9s Timing Accuracy +/-0.1s Transport Package Wooden Case Trademark GOLD Origin Chongqing China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

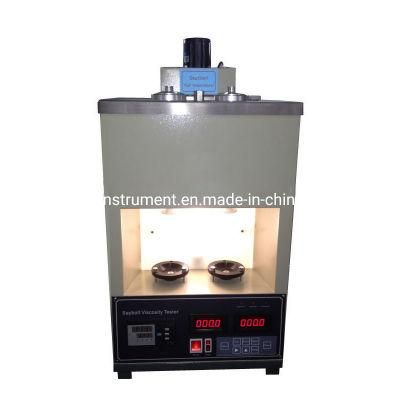

ASTM D88 Saybolt Furol Viscometer for Saybolt Furol viscosity Test



ASTM D88 Saybolt Viscometer:
 1. The Saybolt Furol Viscometer accurately determines the viscosity of petroleum liquids at temperatures from ambient to 464°F (240°C).
2. The Saybolt Furol Viscosity Bath has an available automatic timing feature for viscosity determinations.
3. The ASTM D88 Saybolt Furol Viscometer is designed and made according to T0623-1993 "Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method)" in the People's Republic of China Industry Standard JTG E20-2011 "Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering". It is suitable for determining the Sabot viscosity of asphalt at a constant temperature according to the requirements specified in the T0623-1993 standard. This instrument is also meeting the requirements of ASTM D88 Standard Test Method for Saybolt Viscosity.


Features:

1. This Saybolt Furol Viscometer is mainly composed of bath, bath temperature controller, measurement parameter display calculator (calibration coefficient, time, viscosity, etc.).
2. This Saybolt Furol Viscometer adopts microcomputer control technology and has the function of dual-channel simultaneous detection. It can perform parallel testing on two samples at the same time, digital display of measured parameters, and can automatically calculate the arithmetic average.
3. The instrument can also convert the measured Sapot viscosity to Engler viscosity or kinematic viscosity instantly. It means three kinds of viscosity data can be obtained in one test, with high working efficiency and reliable test data.

Specifications:

1. Power supply:  AC(220±10%)V, 50Hz
2. Instrument structure:  Desk type
3. Working mode:   Double lines, parallel test
4. Receiving flask:   (60±0.0)5ml
5. Heating power of bath:  1000W
6. Working temperature of bath:  Room temp.~240.0ºC
7. Temperature control accuracy:   ±0.1ºC
8. Timing range:   0.0s~999.9s
9. Timing accuracy:   ±0.1s
10. Ambient temperature:   ≤35ºC
11. Relative humidity:    ≤85%
12. Overall dimension:   360mm*360mm*790mm
