• Model NO.：GDGS
• Max Output Current：200mA
• Max Output Capacity：2000va
• CVT Range：10∽10000
• Measuring Range：15PF < Cx <300NF
• Tan Delta Value：Unlimited
• Transport Package：Plywood Case for Transformer Tan Delta Tester
• Specification：25KG
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：500 Pieces,Month

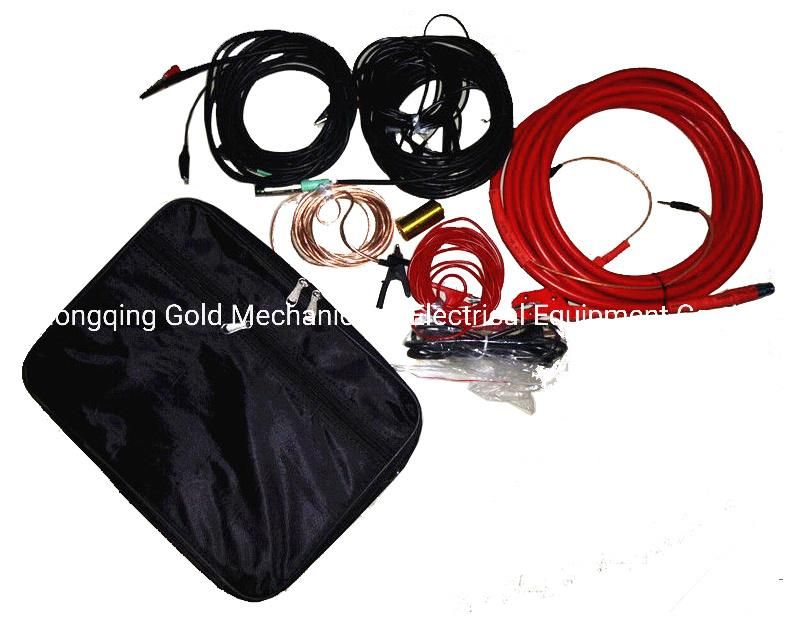

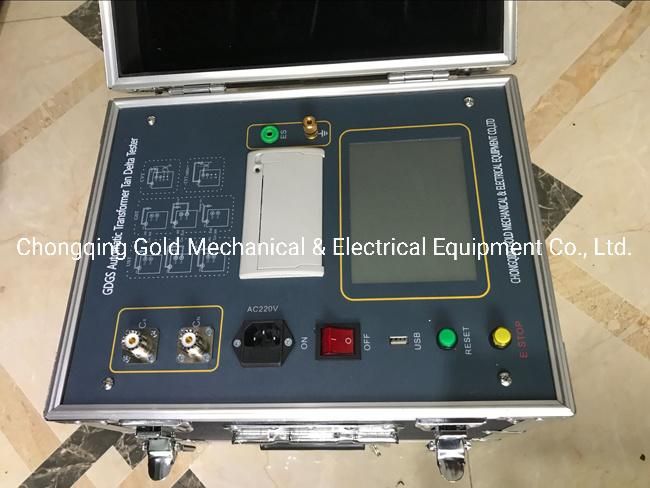

GDGS Automatic Transformer Power Factor Tester

1

Use conditions

-15ºC∽40ºC

RH<80%

2

Anti-interference

Frequency conversion

3

Power

AC 220V±10%



4

High output

0.5KV∽10KV

Every 0.1kV

Precision

2%

Maximum current

200mA

Capacity

2000VA

5

Self-excited power

AC 0V∽50V/15A

45HZ/55HZ 47.5HZ/52.5HZ

55HZ/65HZ 57.5HZ/62.5HZ

Automatic double frequency

6

Resolving power

tgδ: 0.001%

Cx: 0.001pF

7

Precision

△tgδ:±(Reading*1.0%+0.040%)

△C x :±(Reading*1.0%+1.00PF)

8

measuring range

tgδ

Unlimited

C x

15pF < Cx < 300nF



10KV

Cx < 60  nF



 5KV

Cx < 150 nF



 1KV

Cx < 300 nF

CVT test

Cx < 300 nF

9

CVT range

10∽10000

accuracy

0.1%

Resolving power

0.01

10

Exterior dimension

350(L)×270(W)×270(H)

11

Memory size

The 200 group supports U disk data storage

12

Weight

28 Kg

Characteristics

1) The instrument uses the complex current method to measure capacitance, dielectric loss and other parameters. The test result has high precision, which is convenient for automatic measurement.

2) The instrument adopts frequency conversion technology to eliminate 50Hz power frequency interference on site, and reliable data can be measured even in the environment of strong electromagnetic interference.

3) The instrument adopts a large-screen LCD display, and the test process is intuitive and easy to operate through English character menu prompts.

4) The instrument is easy to operate and the measurement process is controlled by the microprocessor. As long as the appropriate measurement method is selected, the data measurement can be automatically completed under the control of the microprocessor.

5) Integrated model with standard capacitor and high voltage power supply, which is convenient for on-site testing and reduces on-site wiring.

6) The instrument has high measurement accuracy and can meet the requirements of oil dielectric loss measurement. Therefore, only a standard oil cup and a dedicated test line are needed to achieve oil dielectric loss measurement.

7) With CVT test function, it can realize CVT self-excitation method test, no external accessories are needed, only one measurement is required, and capacitance and dielectric loss of C1 and C2 are all measured.

8) The reverse wiring test adopts ivddv technology, which eliminates the phenomenon that the reverse wiring data is unstable in the past.

9) With reverse wiring low-voltage shielding function, in the case of 220kVCVT busbar grounding, C11 can be measured without disconnecting 10kV reverse wiring dielectric loss

10) It has the function of measuring high-voltage dielectric loss, and can use high-voltage transformers or series resonance to conduct dielectric loss tests over 10kV.

11) Ground protection function, when the instrument is not grounded or the ground is poor, the instrument does not enter the normal procedure and does not output high voltage. Overcurrent protection function, the instrument is not damaged when the test product is short-circuited or broken down.

12) Electric shock protection function, when the instrument operator accidentally gets an electric shock, the instrument will immediately cut off the high voltage to ensure the safety of the test personnel.

Success Case

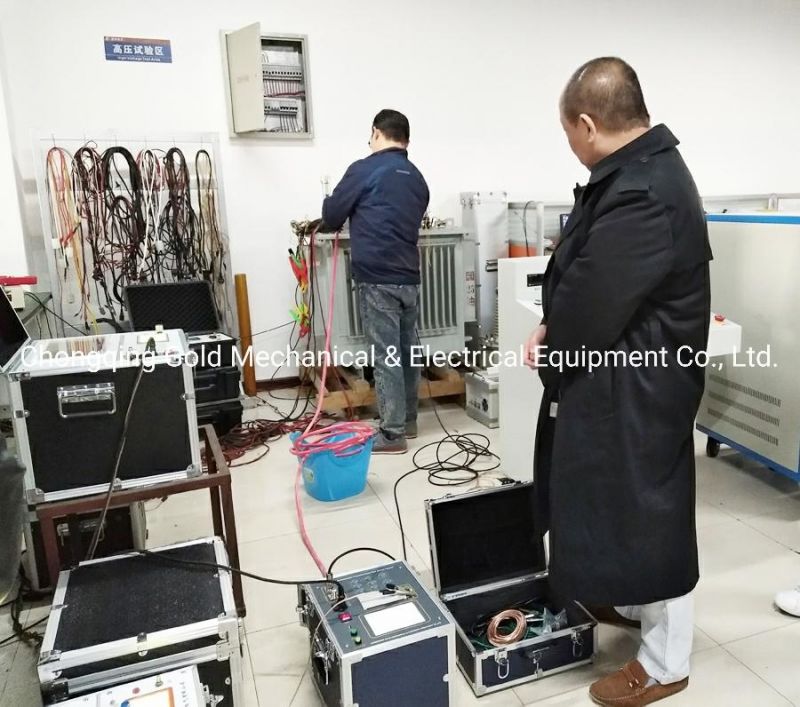

 Philippines Customer Inspection Our GDGS Transformer Tan Delta Tester
