• Model NO.：TS-252-C
• Temperature Control Accuracy：+,-0.5 Degree C
• Distribution Accuracy：+,-2degree C
• Compressor：French "Tecumseh" Brand
• Application：Electronic Products
• Transport Package：Wooden Case
• Specification：150 Liters
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：80 Sets,Month

Model

TS-80(A~C)

TS-150(A~C)

TS-252(A~C)

TS-450(A~C)

Internal Dimension WxHxD (mm)

500x400x400

600x500x500

700x600x600

800x750x750

External Dimension WxHxD (mm)

1550x1950x1550

1600x2000x1700

1700x2100x1750

1800x2200x1900

Temperature Range of Testing zone

Type A:-40 °C~+150°C

( 200°C is Optional)

Type B:-55°C ~+150°C

( 200°C is Optional )

Type C:-65°C ~+150°C

( 200°C is Optional)

High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);

Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC

Exposure Time of High/Low Temperature

Exposure Time of High Temperature: +60°C ~ +150°C (200°C is Optional) 30Mins

Exposure Time of Low Temperature : -10°C~Type C -65°C 30Mins

Temperature of Heat-Storing Slot / Heating Time

RT~200°C/About  45mins

Temperature of Cool-storing Slot / Cooling Time

RT~-75°C/ About 100mins

Temperature Recovery Time / Conversion Time

≤5min/≤5sec

Control Accuracy / Distribution Uniformity

±0.5°C/±2°C

Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.

Insulation Material

High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Mechanics

P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System

Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Security Protection Devices

Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch , failure warning system, electronic alarm

Accessories

viewing window(special order)

Compressor

French 'Tecumseh' Brand, Germany Bizer Brand

Power

AC380V 3 ph 5 lines ,50/60HZ

Weight (Approx)

600 Kg

750 Kg

900 Kg

1300 Kg

Thermal Shock Test Machines Manufacturer Features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

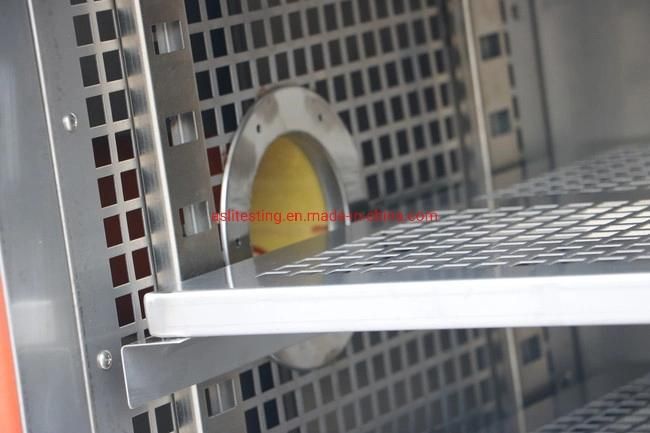

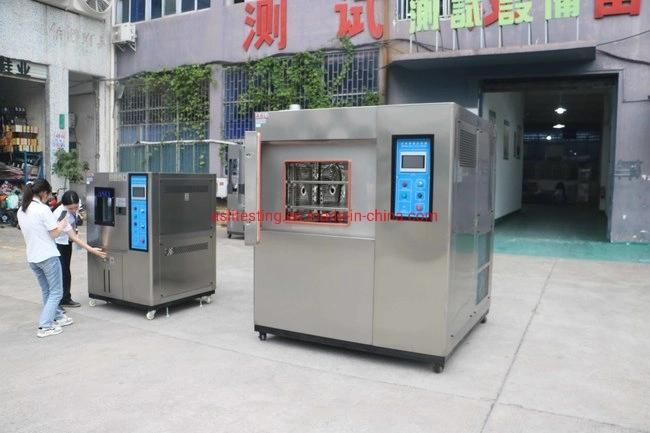

Product Pictures



Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.


Our service:
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

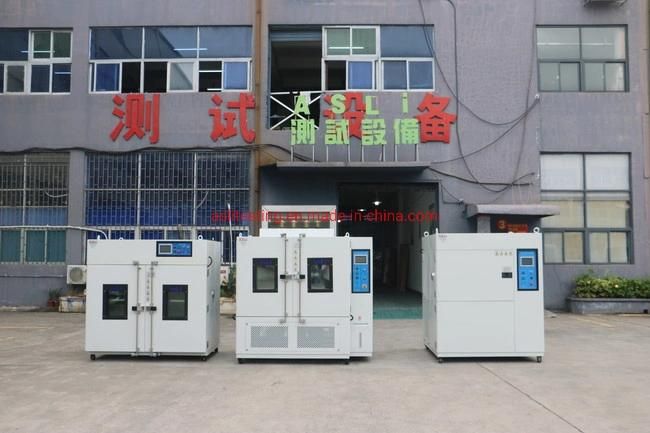

Customers' Visit ASLi Factory:



Exhibition:



Company Information

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Laboratory Programmable Heating Thermal Shock Test Machines Manufacturer for Electronic Products is our star products , and we had obtained the CE certification for this machine .

Certificate:


FAQ

1. Are your company a trading one or a factory?

Factory ,28 years focusing on test instruments field,4 years exporting experience.


2. After an order is placed, when to deliver?

Generally about 20 days,  If  we have finished products, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.


3. How to install and training?

   3-1. If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.

    3-2. If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.

ASLI Company is a good laboratory programmable heating thermal shock test machines manufacturer for electronic products
