• Model NO.：YES-2000
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Power Source Type：Hydraulic
• Transport Package：Wooden Case
• Specification：840× 400× 1260mm
• Trademark：Yiyu
• Origin：China
• HS Code：90248000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YES-2000 Control Manual Control Weight 500-1000Kg Power Source AC380V Oil Cylinder Position Under Power Source Type Hydraulic Transport Package Wooden Case Specification 840× 400× 1260mm Trademark Yiyu Origin China HS Code 90248000 Production Capacity 100sets/Month

Product Description

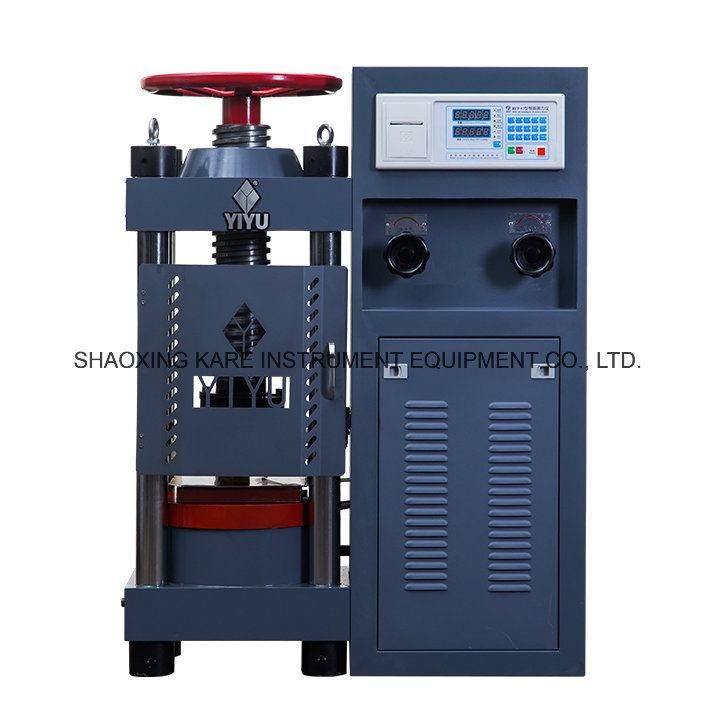

YES-2000 digital display Compression Testing Machine
 Function
It is used for testing the compression strength detection for concrete, stone and other building materials.

Applications
It mainly used in the project construction such as the railroad, road, bridge, port, high-rise etc. it is applicable for the tensile strength resistant test to the concrete, construction parts, building materials etc. it can also be used for the strength test to the metal other non-metallic material, construction parts.

Standards
Comply with ISO, BS, ASTM and EN or other standards. ASTM E4, EN12300-5, ISO7500, ISO6892, and BS4449:1998 and so on.

Security protection
Test force safeguard; The piston max movable span safeguard; over-temperature protect, and so on

Main technical parameters

Max. test force	2000KN
Force range	200~2000KN
Testing space	240×240×80~450mm
Piston max. stroke	80mm
Readout accuracy	≤±1%
Motor power	0.75kW
Machine size	840×400×1260mm
Net weight	600Kg
