• Model NO.：UV resistance test chamber
• Specimen Holder Size：150X750mm
• UVA Wavelength：315~400nm
• UVB Wavelength：290~315nm
• UV Light：40W, 1200mm Long
• Irradiation Value：0.3~3W,M2
• Transport Package：Strong Plywood Case
• Specification：CE, TUV, SGS Certificate
• Trademark：Yuanyao
• Origin：China
• HS Code：90319090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. UV resistance test chamber Specimen Holder Size 150X750mm UVA Wavelength 315~400nm UVB Wavelength 290~315nm UV Light 40W, 1200mm Long Irradiation Value 0.3~3W/M2 Transport Package Strong Plywood Case Specification CE, TUV, SGS Certificate Trademark Yuanyao Origin China HS Code 90319090 Production Capacity 100 Sets/Month

Product Description

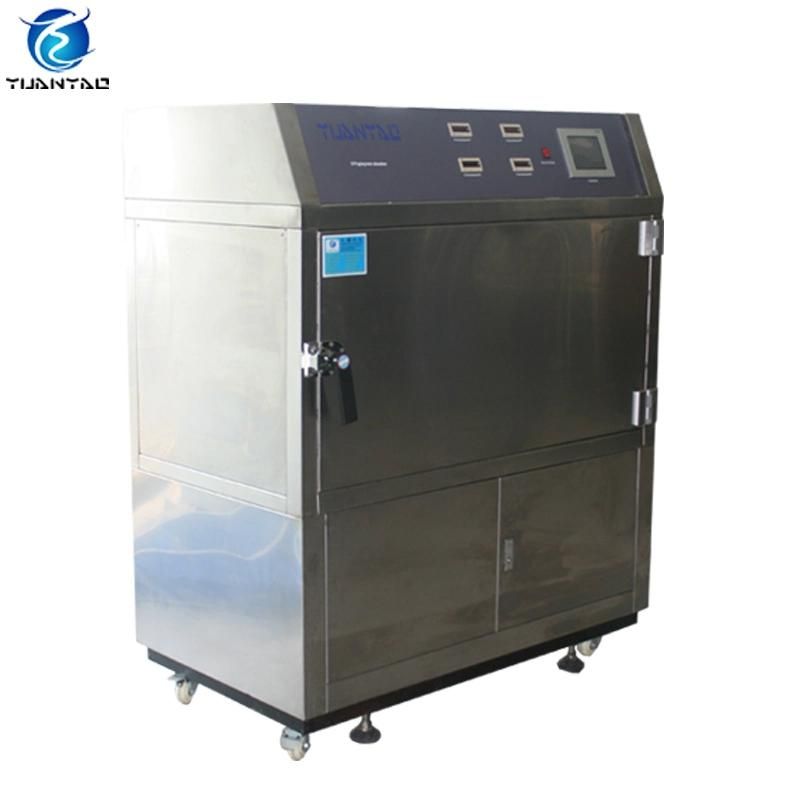

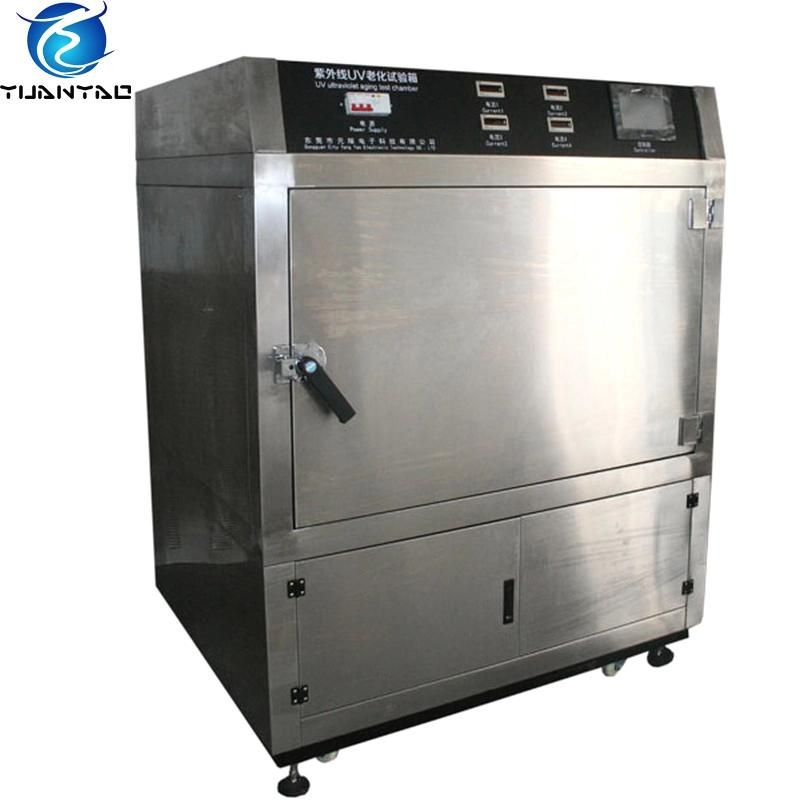

PVC labels UV resistance test chamber

Product introduction:
UV resistance test chamber is used for the examination of the ultraviolet irradiation resistance capacity when the materials/ products are exposed in ultraviolet irradiation  environment. Ultraviolet light is a term used to describe electromagnetic radiation with ultraviolet waves shorter than light visible to humans. UV light is present in sunlight and can cause chemical reactions in certain materials. This reaction caused them to glow, which is called fluoresce. It is widely applied to coating ink, paint, resin, plastics, printing, packaging,aluminum profile,cement, automobile, motorcycle, cosmetics, metal, electronic, electroplating,medicine, etc.

International test standard:
ASTM D4329, D499, D4587,D5208, G154, G53-54; JIS D0205; SAE J2020; GB/T14522-93,GB/T2424.14-1995, GB/T14522-93; ISO4892-3, ISO 11507; EN534; PREN 1062-4 and other related standards.

Technical parameters:

Model No	YUV-178
Control system	The man-machine interface,color LCD touch screen
Temperature range	RT+10 °C~70°C
Temperature fluctuation	±3°C
Humidity range	45%~90%RH
Inner chamber size	1140×390×400mm (WXHXD)
Exterior chamber size	1300×1360×500mm (WXHXD)
Irradiance	1.0W/m2, adjustable
Center distance of lamp	65~70mm
Distance between sample and tube center	55 mm
Wave length	UV-B Wave (280~315nm) or
Specimen size and quantity	75x150 mm 48 pcs
Water and consumption	Distilled water, 8 liters / day
Studio size	W1165xD450xH500mm
Power supply	AC 220V 50HZ   5KW
Tube quantity	8 lamps, imported from America
Weight	Approx 150KG

 Features:
1) High precision temperature control instrument.

2) Programmable time controller(set test time,illumination time,condensation time,spraying time).

3) France Tecumseh refrigeration compressor.

4) Working room, sample shelf,liner and shell are made from SUS304. Automatic control for inflow.

5) Stainless steel heater is equipped with water-break protection device.

Besides UV resistance test chamber, we also can supply following equipments:
Temperaure humidity test chamber/thermal shock test chamber/fast temperature change rate chamber/
high altitude chamber/drying oven/vacuum oven/clean oven/ozone test chamber/water proof test chamber/
dust proof test chamber/drop tester/xenon lamp solar aging test chamber/salt spray test chamber/ universal tensile tester/automatic liquid dispensing robot/automatic soldering robot.

If you are interested in UV resistance test chamber, please directly contact  us, we will be here to reply you within 24hours during the working time, many thanks for your attention.
