• Model NO.：HD-E808
• Certificate：ISO9001: 2008
• Warranty Period：12 Months
• Delivery Time：15 Days After Receive The Order
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Design Criteria：Cns, JIS, K5400, Z2371, ASTM
• Power：AC220V
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008, CE
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Certificate ISO9001: 2008 Warranty Period 12 Months Delivery Time 15 Days After Receive The Order pH Nss Acss6.5~7.2 Cass 3.0~3.2 Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Design Criteria Cns, JIS, K5400, Z2371, ASTM Power AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

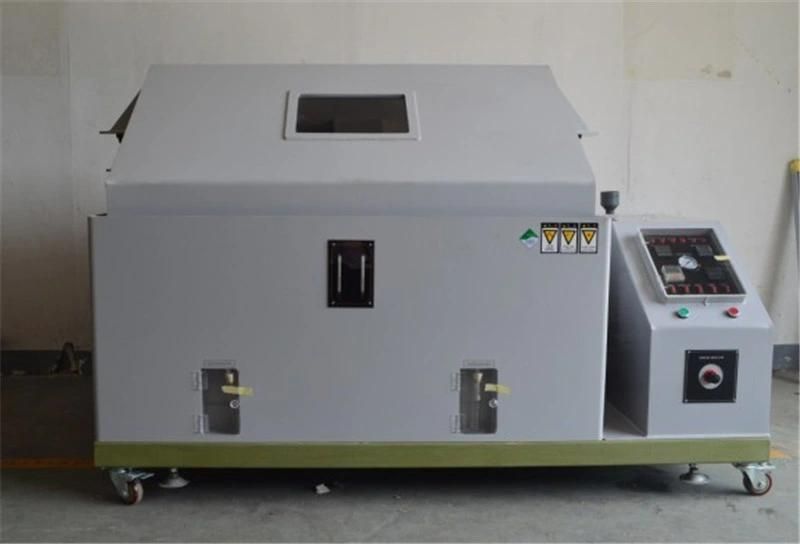

                 Programmable Rubber Salt Spray Testing Chamber With Long Life

Product Description:
Programmabe Salt spray Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Design standard:
CNS:3627,3385,4159,7669,8886;
JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.

Chamber Structure:
1. Salt spray chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.

2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Standard Parameters

Model	HD-E808-120
Inner Box Size (L× W× H)	120× 100× 50 cm
Outside Box Size(L× W× H)	190× 130× 140 cm
Equipment Material	Both inside & outside shell of Salt  spray  test  equipment adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic boar
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	600L
Brine Tank Capacity	40L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B-117, B268

Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
