• Model NO.：PHZY-1.6,5,16
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Place of Origin：Shanghai, China
• Brand Name：Jp
• Output Power：0.23kw DC
• Gross Weight：200kg
• Power Supply：220V or Custom
• Delivery Time：Within 25 Days
• Packaging Details：Fumigated Wood Box
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP jianping
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHZY-1.6/5/16 Control Computer Control Weight 0-100Kg Power Source AC380V Oil Cylinder Position Under Place of Origin Shanghai, China Brand Name Jp Output Power 0.23kw DC Gross Weight 200kg Power Supply 220V or Custom Delivery Time Within 25 Days Packaging Details Fumigated Wood Box Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP jianping Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

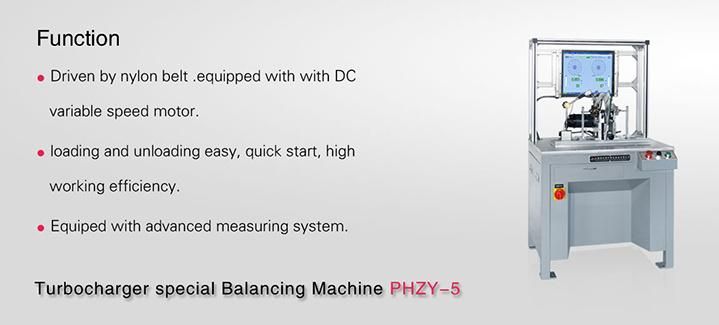

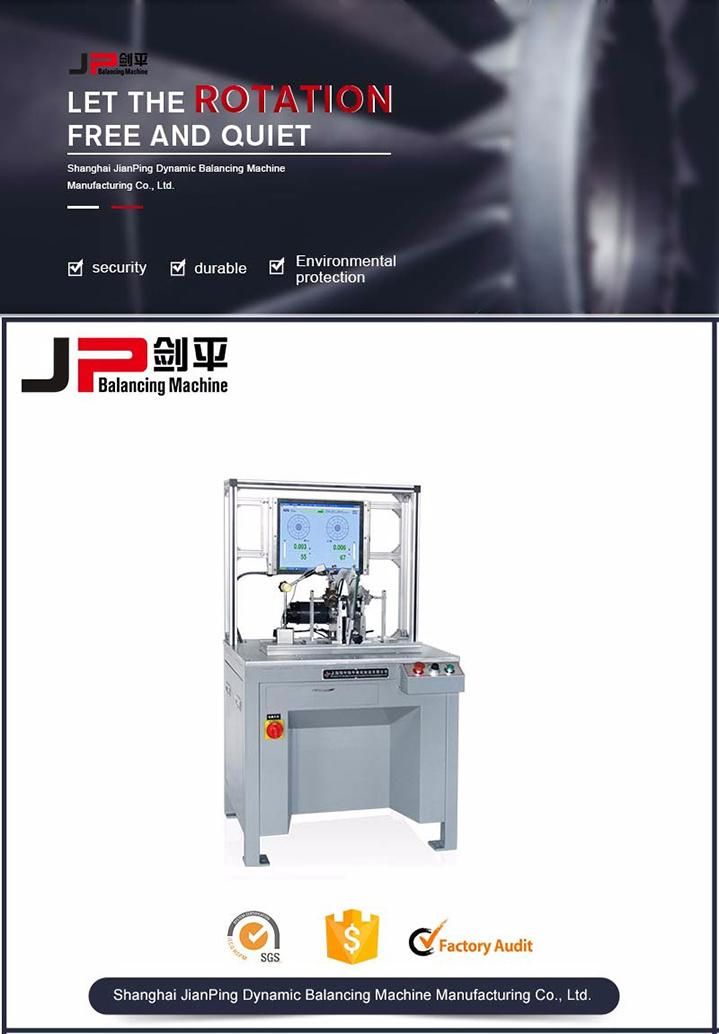

Hot Sale Jp jianping turbo rotor dynamic balancing instrument





Quick Details

Place of Origin: Shanghai, China (Mainland)
Brand Name: JP
Model Number: PHZY-1.6/5/16
Power: Electronic
Usage: Balancing Machine
Output Power: 0.23KW DC
Length: 800mm
Width: 700mm
Height: 1400mm
Gross Weight: 200kg
Number of Packing: 1pcs
Delivery time: Within 25 days
Power Supply: 220V or Custom
Site: shjpbalancer.en.made-in-china.com
Item: Wind turbine rotor balance testing machines
Packaging & Delivery
Packaging Details: Fumigated Wood Box
Delivery Detail: Within 25 days after confirming the order
Specifications

Wind turbine rotor balance testing machines
Auto-positioning bed, 17 inch LCD screen, large tool carriage structure
Dedicated br

Package and transport


Production Description

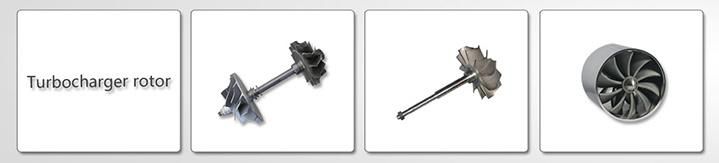

? Widely used in balancing turbocharger, turbocharger impellers, turbocharger compressors, turbocharger turbines etc.
? Auto-positioning bed, 17#LCD screen, large tool carriage structure
? Dedicated bracket, driven by Nylon belt, variable speed motor 230W

Delivery inspection


Range of Application

This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.

Certificates

Technical data at a glance	PHZY-1.6/5/16
Maximum weight of workpiece(kg)	1.6/5/16
Maximum diameter of workpiece(mm)	300
The distance between two bearing pedestals (mm)	25-480
Journal diameter on roller carriages(mm)	3-40
Belt driving diameter(mm)	15-150
Rotation speed when the diameter of operating transmission is 100mm(r/min)	~1470
Motor power (kw)	0.23DC
Minimum achievable residual unbalance (emar)	<=0.3g.mm/kg
