• Model NO.：(BFDRD-6000)
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Product：Plastic Ampoule
• Output：4000PCS Soft Bag ,Hour
• Testing Method：High Frequency, High Voltage, Sparks Discharge
• Nput Voltage：380V 50Hz 3p
• Operation Height：850+,- 50mm
• Compressed Air：5kg,Cm2 10L,Min
• The External Shape Size：L3000 * W800 * H1200
• Transport Package：Export Standard Wooden Case
• Specification：Meet GMP Standard
• Trademark：BSIT
• Origin：Made in China
• HS Code：8422303090
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. (BFDRD-6000) Control Computer Control Weight 0-100Kg Power Source AC380V Oil Cylinder Position Under Product Plastic Ampoule Output 4000PCS Soft Bag /Hour Testing Method High Frequency, High Voltage, Sparks Discharge Nput Voltage 380V 50Hz 3p Operation Height 850+/- 50mm Compressed Air 5kg/Cm2 10L/Min The External Shape Size L3000 * W800 * H1200 Transport Package Export Standard Wooden Case Specification Meet GMP Standard Trademark BSIT Origin Made in China HS Code 8422303090 Production Capacity 20 Sets/Year

Product Description

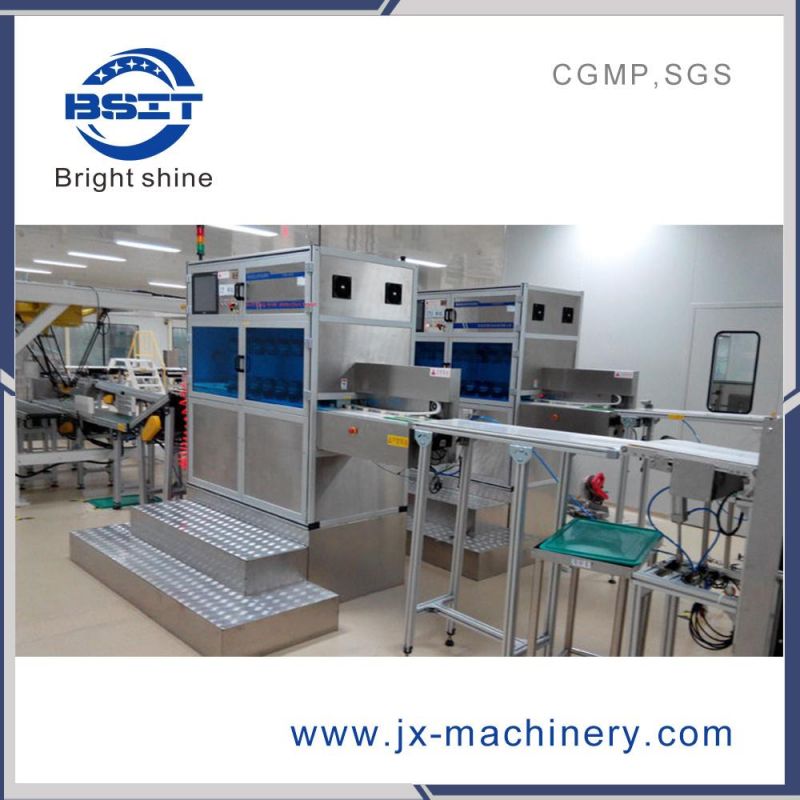

                             Leak Inspection for IV Soft Bag Solution (BFDRD-6000)

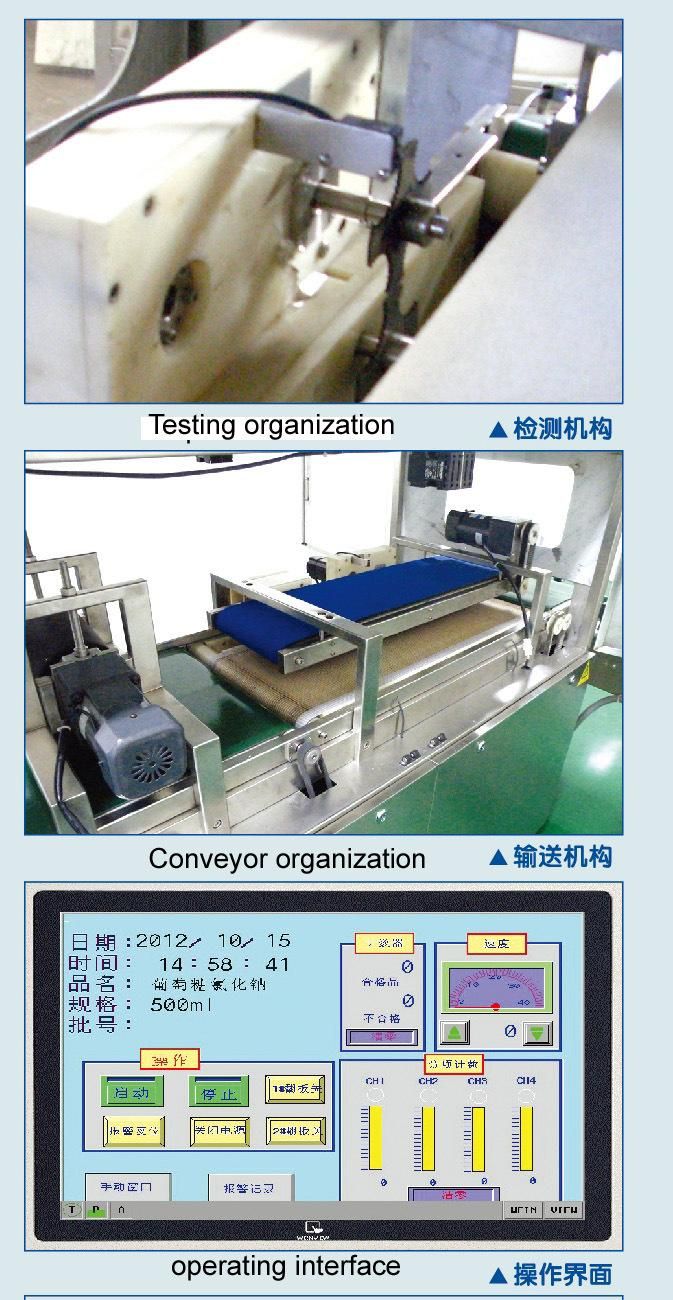

Testing device

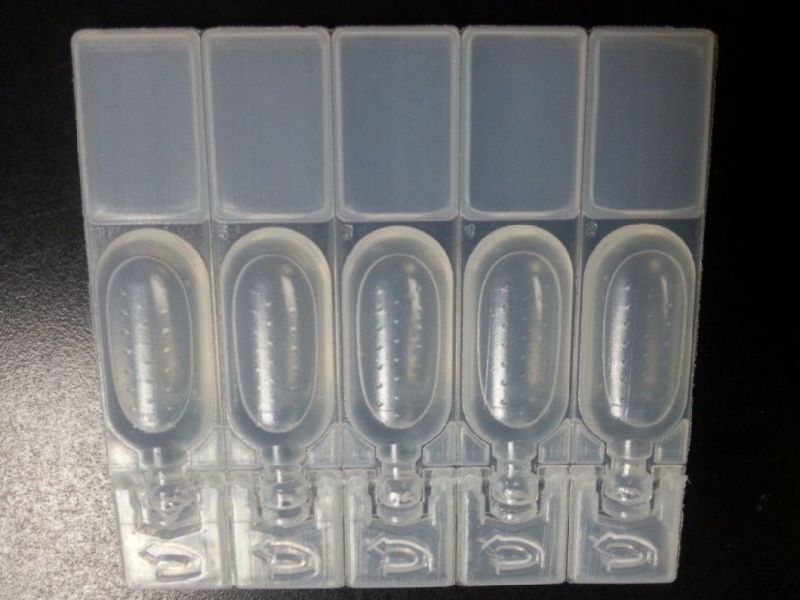

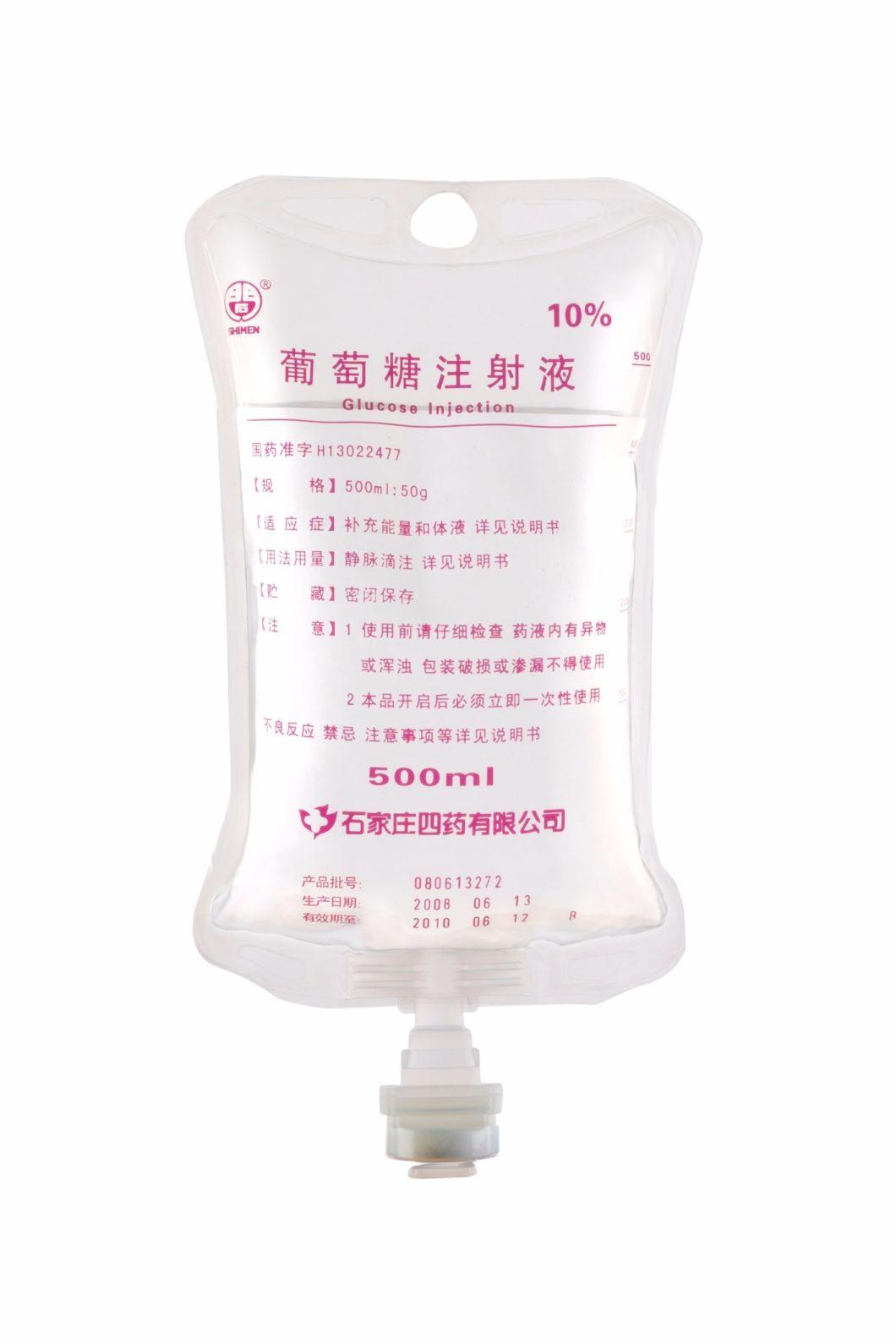

sample:






Operational Principle:

Factories provide 220V 50Hz electricity mainly through frequency conversion by frequency power transformer and then boost through transformer. As detect power, applying a high voltage for product testing part, detecting current changes are received and sensor recognition, to the industrial computer, and to determine whether or not qualified products based on computers according to appropriate logic, signal will be sent to the implementing agencies and reject the substandard products.

Scope:

Apply to non- PVC soft belt after filling with a large infusion of airtight detection. Checking 3000ml, 1000ml, 500ml, 250ml, 100ml and all kinds of specifications without changing the mould

Technology Parameters:

Testing Method: High Frequency, high voltage, sparks discharge
Input Voltage: 3*380V 50HZ 3KW
Operation Height: 850+/- 50mm
Compressed Air: 5kg/cm2 10l/min
The External Shape Size: L3000 * W800 * H1200
Production Capacity: 4000pcs/H
Weight: 1000Kg

Technical Features:

Continuous automatic operation of the machine, industrial computer control, with manual control function, automatic input detect products, automatic testing, rejecting the substandard products automatically, and qualified products go to next procedure automatically.

Inspecting the product at the mouth of the welding cap once, inspect the ship interface and film welding interface once. Completion of all operations on the touch screen, include automatic running, manual operation, inch, adjustment and the setting of the running parameters.


Recording the inspecting product quantities, qualified products quantities, substandard products quantities and quantities of all the substandard products in all inspecting places automatically. Result will be showing on the screen.

Fault alarm indicator will be showing on the screen.

Security: The high voltage parts of the machinery have the protect function, when open the protect door abnormally, it will be self-locking automatically, the machine will cut off the high voltage power automatically and alarming with alarming information.
