• Model NO.：HD-E808-120
• Certificate：ISO9001: 2008
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Deposit
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Design Criteria：Cns, JIS, K5400, Z2371, ASTM
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Color：White
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008, CE
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808-120 Certificate ISO9001: 2008 Warranty Period One Year Delivery Time 15 Days After Receive The Deposit pH Nss Acss6.5~7.2 Cass 3.0~3.2 Design Criteria Cns, JIS, K5400, Z2371, ASTM Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Color White Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

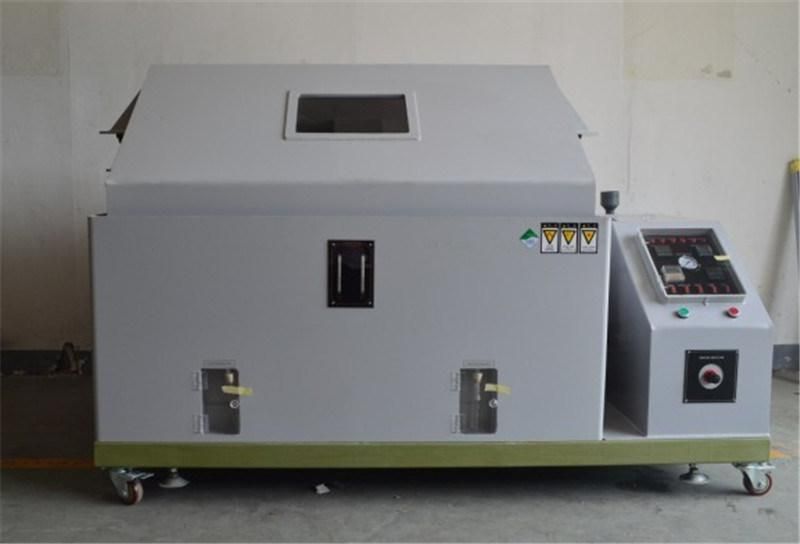

                Electronic Salt Spray Test Machines with Competitive Price

Product Description:
Salt spray tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Design standard:
CNS:3627,3385,4159,7669,8886;
JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.

Purpose:
Programmable Salt Spray chamber is applicable for the salt spray corrosive test for the protection layer of components,parts, electronic and electrical parts and metal materials and industrial products. Salt Spray Test Instrument

Control System:
High precision P.I.D.temperature control meter with its error ±0.1°C.

Chamber Structure:
1. Salt spray chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Main Technical Parameter

Model	HD-E808-120 salt spray tester
Inner Box Size (L× W× H)	120× 100× 50 cm
Outside Box Size(L× W× H)	190× 130× 140 cm
Equipment Material	Both inside & outside shell of salt spray test machine adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2)   Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	600L
Brine Tank Capacity	40L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B-117, B268

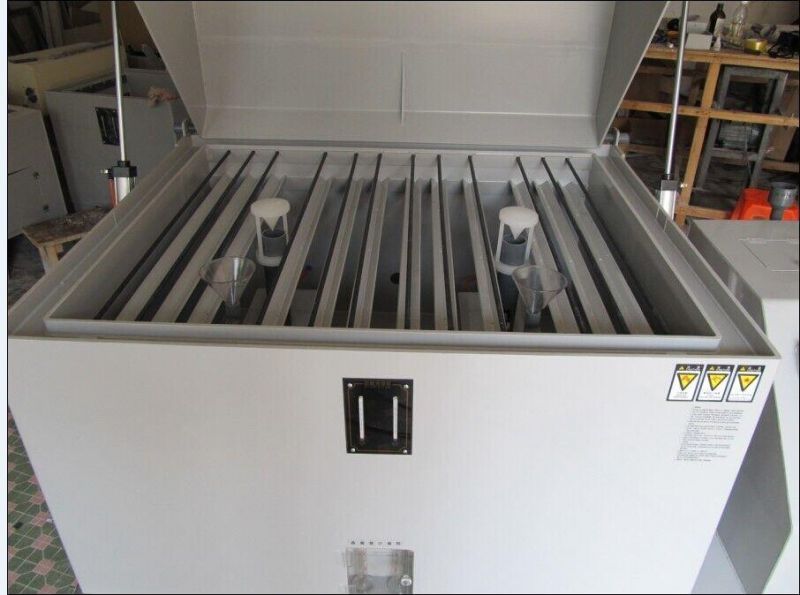

Box structure

1. The overall molded by high temperature welding, corrosion-resistant, easy to clean, no leakage phenomenon.
2. Tower spray system, and equipped with salt filter system, no crystallization nozzle, salt spray evenly distributed, the amount of settlement free adjustment.
3. The lid is transparent with a transparent material to clearly see the test items and spray conditions.
4. Between the lid and the box with water-sealed structure, no salt overflow.
5. Line control panels and other gas components are fixed in the location where easy inspection and maintenance, adopt side door with door lock opening ,not only beautiful, and easy maintenance.

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
