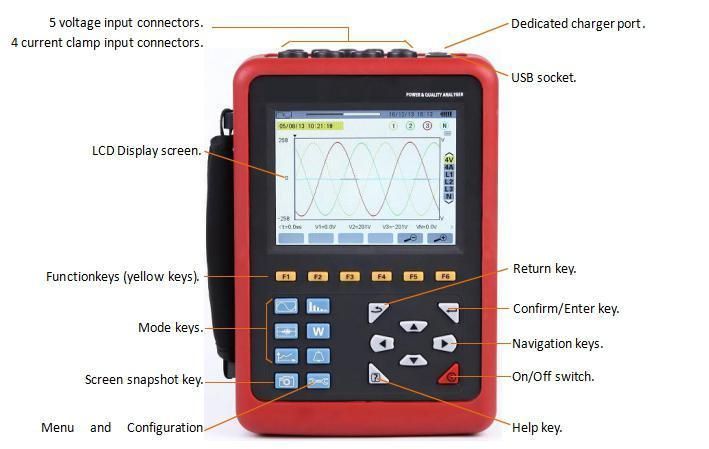

Pqa Portable Touch Screen Three Phase Power Energy Quality Analyzer
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Mass Scope of Workpiece：<900kg
- Type：Power Quality and Energy Analyzer
- Display：Digital
- Control：Computer Control
Base Info
- Model NO.：HZCR-5000
- Weight：0-100Kg
- Power Source：AC220V
- Accuracy Class：0.2
- Fundamental Voltage Error：≤0.5%F.S
- Harmonic Voltage Measurement：≤0.1%
- Three-Phase Voltage Unbalance：≤0.2%
- Name：Power Quality Analyzer
- Feature：3 Phase Handheld
- Size：320mmx240mmx130mm
- Voltage：0-400V(Auto)
- Current：(Clamp Type) 5A,25A 100A,500A
- Frequency Testing Range：45~55Hz
- Transport Package：Wooden Box with Foam Inside
- Specification：CE,ISO,IEC
- Trademark：HuaZheng
- Origin：Hebei, China
- HS Code：9028309000
- Production Capacity：100 PCS,Month
Description
WeightHost: 1.6kg (with battery). 10Asmall sharp current clamp: 170g×4; 100A circle current clamp: 190g×4; 1000Acircle current clamp: 510g×4; Test wires and power adapter: 900g; Total weight: about 7.8kg (with packaging). Length of voltage test wire 3m. Length of current sensor wire 2m. Working temperature and humidity -10°C~40°C; below 80%Rh. Storage temperature and humidity -10°C~60°C; below 70%Rh. Input impedance Input impedance of test voltage: 1MΩ. Withstand voltage Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. Insulation Between instrument wiring and shell ≥10MΩ. Structure Double insulation, with insulation vibration-proof sheath. Safely rules IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

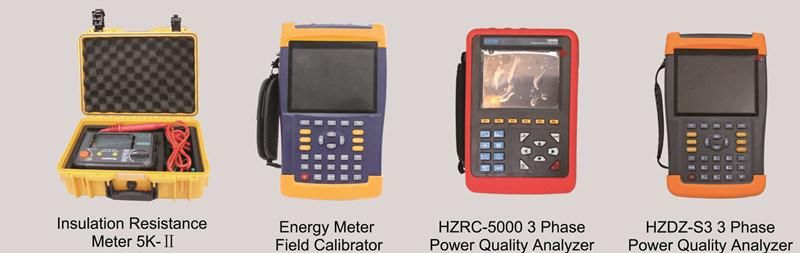

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
VI. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
VII.Customer Visit
VIII.Exhibition
IX.Similar Recommendation
