• Model NO.：HZZB-II
• Model Number：Hz-3120
• Test Report：Yes
• Measurement Accuracy：± (0.2%+2)
• Work Power：110V-400V Adjustable
• Work Temperature：-10°c~ 50°c
• Environment Humidity：≤85%Rh
• Power Frequency：50±1Hz
• Sharpness of Separation：1
• Output Current：20A 10A 5A 2A 1A
• Size：370mm*235mm*225mm
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030332000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZZB-II Model Number Hz-3120 Test Report Yes Measurement Accuracy ± (0.2%+2) Work Power 110V-400V Adjustable Work Temperature -10°c~ 50°c Environment Humidity ≤85%Rh Power Frequency 50±1Hz Sharpness of Separation 1 Output Current 20A 10A 5A 2A 1A Size 370mm*235mm*225mm Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030332000 Production Capacity 100 PCS/Month

Product Description

Transformer DC Winding Resistance Meter And Turns Ratio Test Set

I.Introduction
At present, transformer DC resistance test and transformer ratio group test are the necessary items for transformer outage maintenance. To complete the above-mentioned test, transformer DC resistance tester and transformer ratio group tester need to be equipped separately. However, there are many manufacturers of the above two kinds of instruments, and their functions and wiring are different. In addition, two kinds of instruments are needed to be carried in each test, namely, transformer DC resistance tester and transformer ratio group tester. Because of the different functions of the two instruments, it is necessary to do two test preparations and two wiring and disconnection, which will greatly reduce the work efficiency. HZZB-II transformer DC resistance ratio tester solves the above problems. One instrument can carry out two tests: direct resistance test and ratio test. The screen adopts large screen high-resolution LCD screen, which is convenient for field use, has menu prompt function, easy and intuitive operation, completes three-phase direct resistance test and three-phase ratio test at one time, and has fast test speed and high accuracy.

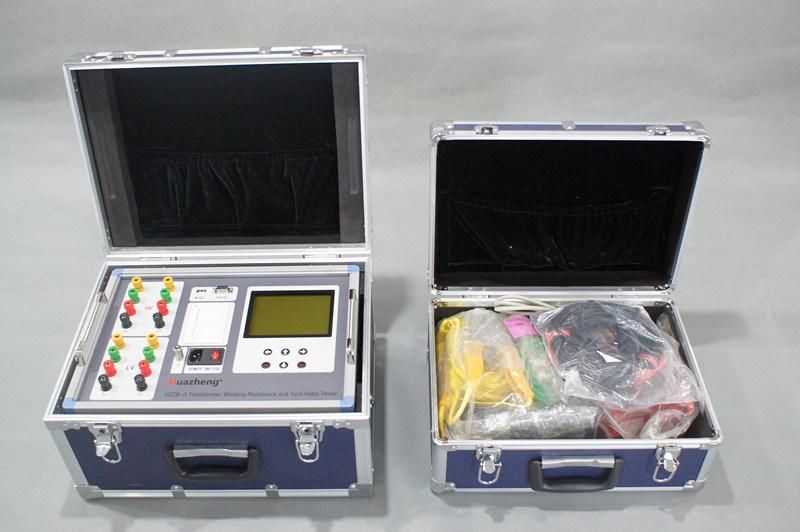

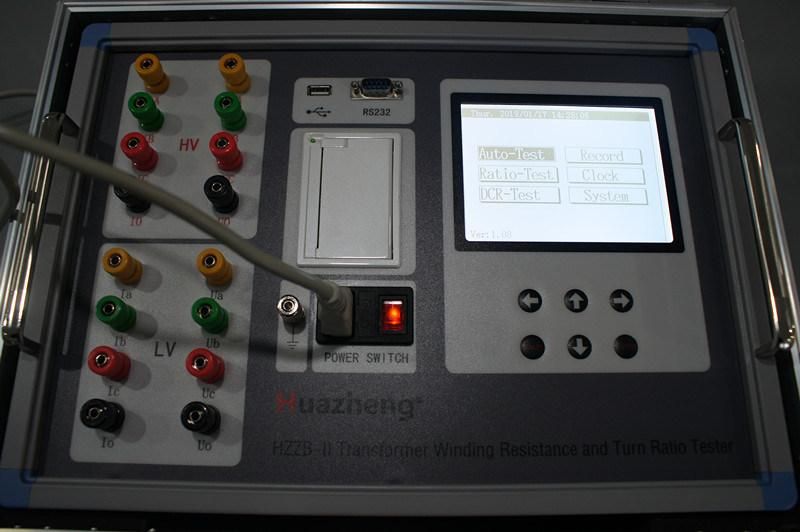

II.Photos





III.Technical Index

3.1 Variable ratio test

3.1.1 Range:0.9~10000

3.1.2 Accuracy:±(reading×0.1%+2 words)(≤ 500)

±(reading×0.2%+2 words)(>500 ≤ 3000)

±(reading×0.3%+2 words)(>3000)

3.1.3 Resolution ratio:0.9~9.9999(0.0001) 100~999.99(0.01)  10000

10~99.999(0.001) 1000~9999.9(0.1)

3.2 Direct resistance test

3.2.1 Range:10A      1.000mΩ~1Ω      1  A      100.0mΩ~20Ω

5 A      10.00mΩ~4Ω      0.2A      1.000 Ω~100Ω

5A + 5A  10.00mΩ~1Ω      0.2A+0.2A  1.000 Ω~50Ω

1A + 1A  100.0mΩ~5Ω

3.2.2 Accuracy:±(reading×0.2%+2 words)

3.2.3 Maximum resolution ratio:0.01uΩ

3.3 Working power supply:AC220V±10%, 50/60Hz

3.4 Environment temperature:-10ºC~50ºC  Relative humidity:<90%,No condensation

3.5 Instrument Dimensions:390mm×280mm×190mm

3.6 Instrument weight:9kg(Excluding test lines)

IV.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
