Electronic Temperature Hot Cold Thermal Shock Tester (HD-216TST)
Dongguan Haida Equipment Co., Ltd.- Type:Thermal Shock Tester
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Display:Digital
- Control:Computer Control
- Weight:500-1000Kg
Base Info
- Model NO.:HD-E703
- Power Source:AC220V
- Certificate:ISO9001: 2008
- Warranty Period:12 Months
- Scalable Device:Temperature Recorder, RS-232 Communication Interfa
- Model:HD-216tst
- Interal Dimension:(W* H* D) 60* 60* 60cm
- Outside Dimension:170* 225* 182cm
- Damper Device:Forced Air Drived Damper
- Cooling Method:Air or Water
- Ambient Temperature:0 Centigrade Degrees to 30centigrade Degrees
- Simulated Load IC:5.0kg
- Transport Package:Strong Wooden Case
- Specification:ISO9001: 2008
- Trademark:Haida
- Origin:China
- Production Capacity:60 Sets,Month
Description
Basic Info.
Model NO. HD-E703 Power Source AC220V Certificate ISO9001: 2008 Warranty Period 12 Months Scalable Device Temperature Recorder, RS-232 Communication Interfa Model HD-216tst Interal Dimension (W* H* D) 60* 60* 60cm Outside Dimension 170* 225* 182cm Damper Device Forced Air Drived Damper Cooling Method Air or Water Ambient Temperature 0 Centigrade Degrees to 30centigrade Degrees Simulated Load IC 5.0kg Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin China Production Capacity 60 Sets/MonthProduct Description

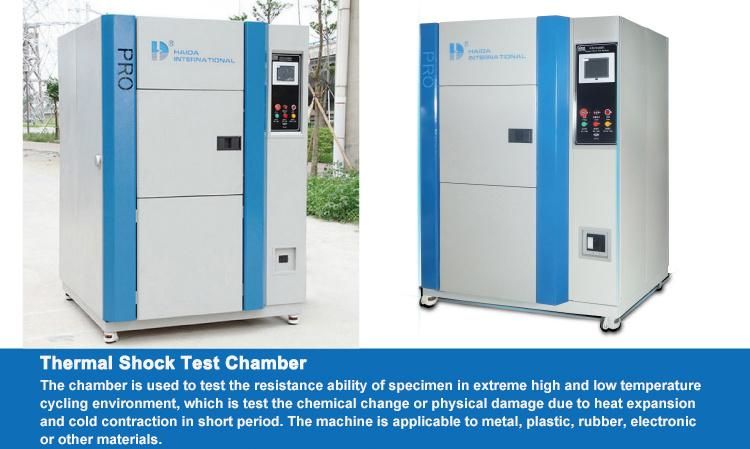

Electronic Temperature Thermal Shock Tester (HD-E703)Electronic Temperature shock tester is used to test most commercial products to see how they withstand drastic temperature changes. It applies to Metal, rubber, plastic, electronic and so on, which provide the reference to improve the product quality.
The tester is subject to a product to the most extreme temperature conditions, instantly.
The purpose of testing a product under these circumstances by the Thermal shock test chamber is to observe changes in the products characteristics and check for failure occurrence of different materials and thermal expansion coefficients.
Product Features:
1, The recover time of high and low temperature shock is in 5 minutes, which can meet the standard of MTL, IEC, JIS, GJB.
2. The tester has perfect outlook and easy operation ans RS-232 interface.
3. It adopts to Japan imported color LCD touch screen, which can display in both English and Chinese.
Model | HD-E703 |
Interal Dimension | (W× H× D) 60× 60× 60cm |
Outside dimension | 170× 225× 182cm |
Structure | Three chambers design(the hot chamber, the cold chamber and the testing chamber) |
Damper device | Forced air drived damper |
Interior material | SUS#304 Stainless steel plate |
Exterior material | SUS#304 Stainless steel plate |
Basket material | SUS#304 Stainless steel plate |
Refrigeration | Cascade refrigeration system |
Cooling method | Air or Water |
Ambient temperature | 0 centigrade degrees to 30centigrade degrees |
Preheating temperature | +60.00centigrade degrees to +200.00centigrade degrees |
Precooling temperature | -10.00centigrade degrees to -70.00centigrade degrees |
H. T. Shocking | +60.00centigrade degrees to +150.00centigrade degrees |
L. T. Shocking | -10.00centigrade degrees to -65.00centigrade degrees |
Temperature uniformity | ± 2.00centigrade degrees |
Simulated load ic | 5.0kg |
HT IN-Zone | -65.00 centigrade degrees to +150.00centigrade degrees/5min |
LT IN-Zone | +150.00centigrade degrees to -65.00centigrade degrees |
Preheating time | 30MIN |
Precooling time | 60MIN |
Senor | T× 4 |
Controller | OYO-8226 |
Setting range | Temperature: -100.00centigrade degrees to +200.00centigrade degrees TIME: OHIM to 999H/CYCLE: 0 to 9999 |
Resolution | Temperature: 0.1centigrade degrees |
Output mode | PID+SSR (control method) |
Power(K. W) | AC380V 50HZ 30KW |

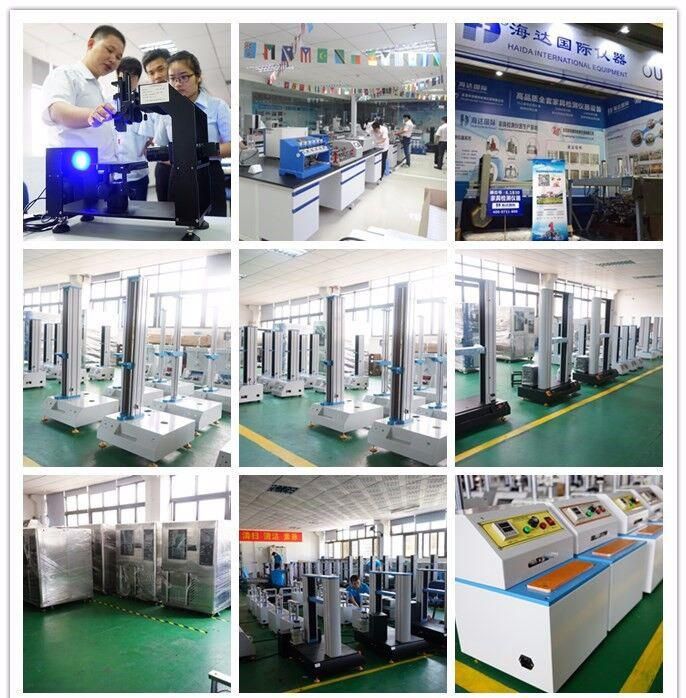

Company Show
