• Model NO.：HD-R804
• Display：Digital
• Control：Manual Control
• Weight：65kg
• Power Source：AC220V
• Temperature Control：Room Temperature -450 ºC
• Temperature Control Accuracy：± 0.5 ºC
• Instrument Size：400mm * 500mm * 600mm
• Test Item：Plastic
• Transport Package：Strong Wooden Case
• Specification：ISO1133: 1997
• Trademark：HAIDA
• Origin：China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. HD-R804 Display Digital Control Manual Control Weight 65kg Power Source AC220V Temperature Control Room Temperature -450 ºC Temperature Control Accuracy ± 0.5 ºC Instrument Size 400mm * 500mm * 600mm Test Item Plastic Transport Package Strong Wooden Case Specification ISO1133: 1997 Trademark HAIDA Origin China Production Capacity 1000 Sets/Year

Product Description

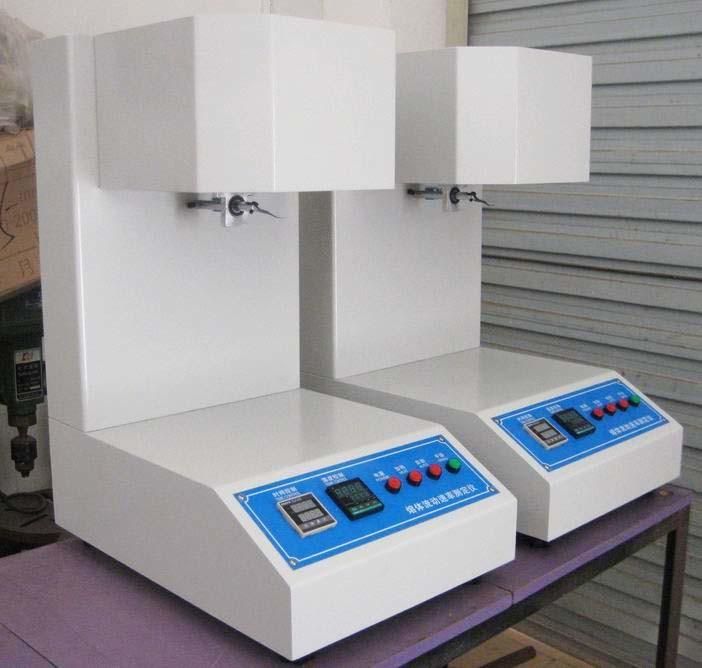

Melt Flow Index Tester for Testing Plastic (HD-R804)

Product Introduction:
Melt flow index tester  is an instrument for measuring the flowability of plastic polymers at high temperatures. It uses a high-temperature heating furnace to bring the measured object into a molten state under the specified temperature conditions. The test object in this molten state is subjected to an extrusion test through a small hole of a certain diameter under the load gravity of a predetermined weight. In the production of plastics in industrial enterprises and in the research of scientific research units, "melt (mass) flow rate" is often used to indicate the physical properties of polymer materials such as fluidity and viscosity in the molten state.

Specification:
1. XNR-400W melt flow rate tester adopts industrial PLC programmable controller, touch screen operation platform, Chinese character LCD display.

2. Melt flow index test machine's automatic temperature control is divided into three cutting methods: manual, time-controlled and automatic from the operation method, which can realize two test methods: mass method (MFR) and volume method (MVR).

3. Melt flow index test machine can measure the melting density of raw materials at the test temperature, and the system also has a temperature calibration function.

Main Technical Parameters:

Measuring range	0.1-800.00g / 10min (MFR) 0.1-800.00 cm3 / 10min (MVR)
Temperature range	Room temperature -450 ºC
Temperature control accuracy	± 0.5 ºC
Timing accuracy	0.1S
Displacement accuracy	0.01mm
Load	full load
Cutting method	manual, time control, automatic
Barrel inner diameter	9.550mm ± 0.025mm
Barrel length	160mm
Bush Die	Material is tungsten carbide, length: 8.000mm ± 0.025mm, inner diameter :2.095mm ± 0.005mm
Power	0.45KW
Power supply	AC220V, 50Hz
Instrument size	400mm * 500mm * 600mm
Net weight of instrument	65Kg

Images:


The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback:

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
