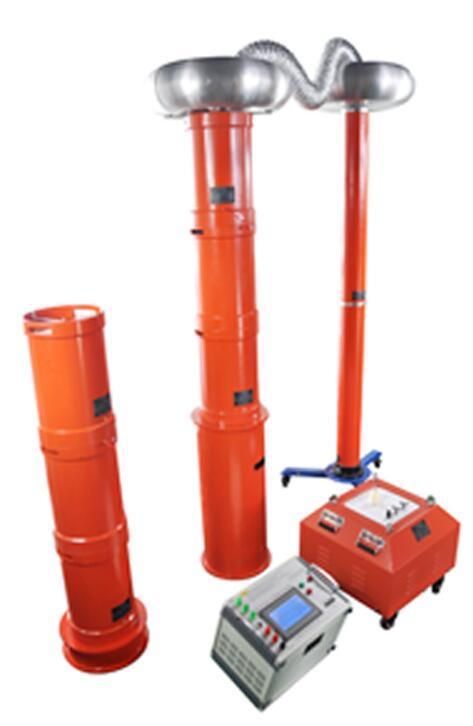

AC Resonance Test System GDTF-120kVA/120kV
HV Hipot Electric Co., Ltd.- Connectors：USB
- Test Mode：Saved Test
- Usage：Power Cable
- Test Region：Forming Cable
- Cable Type：Shielded
- Power：Electricity
Base Info
- Model NO.：GDTF-120kVA,120kV
- Certification：ISO9001
- Customized：Customized
- Color：Red
- Rated Capacitiy：120kVA
- Rated voltage：30kV; 120kVA
- Rated current：4A; 1A
- Working time：constant working of 5mins under rated load; worki
- System Quality Factor：Maximum Load >= 20
- Protective function：overcurrent, overvoltage and flashover protection
- Power Supply：220V or 380V Single-Phase
- Working Frequency：30-300Hz
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：China
- HS Code：9030849000
- Production Capacity：500PCS,Year
Description
III. Technical Data
2. Variable frequency power supply GDTF -6kW/220/380V (1 set)
4. Capactive Divider GDFR-120kV/800pF (1 set)
5. Compensated capacitor GDBC-120kV/8000pF (1 set)
V. Packing List
| No. | Name | Module No. & SPECS | Quantity |
| 1 | Exciting Transformer | GDJL-6kVA/2.5/5kV/0.4kV | 1 set |
| 2 | Variable frequency power supply | GDTF-6kW/220/380V | 1 set |
| 3 | HV Reactor | GDDK-30kVA/30kV | 4 sets |
| 4 | Capactive Divider | GDFR-120kV/800pF | 1 set |
| 5 | Compensated capacitor | GDBC-120kV/8000pF | 1 set |
| 6 | Connecting Cable | 1 set | |
| 7 | Factory Test Report | 1 copy | |
| 8 | User's Guide | 1 copy |
