• Model NO.：ENC 152515(PH10T)
• Accuracy Grade：Customization
• Load Way：Customization
• Loading Method：Customization
• Display：Customization
• Control：Customization
• Weight：1000-2000Kg
• Power Source：Customization
• Oil Cylinder Position：Customization
• Transport Package：Wooden Case
• Specification：Customization
• Trademark：ZHENHUAN
• Origin：China
• Production Capacity：10 PCS Two Months

Basic Info.

Model NO. ENC 152515(PH10T) Accuracy Grade Customization Load Way Customization Loading Method Customization Display Customization Control Customization Weight 1000-2000Kg Power Source Customization Oil Cylinder Position Customization Transport Package Wooden Case Specification Customization Trademark ZHENHUAN Origin China Production Capacity 10 PCS Two Months

Product Description

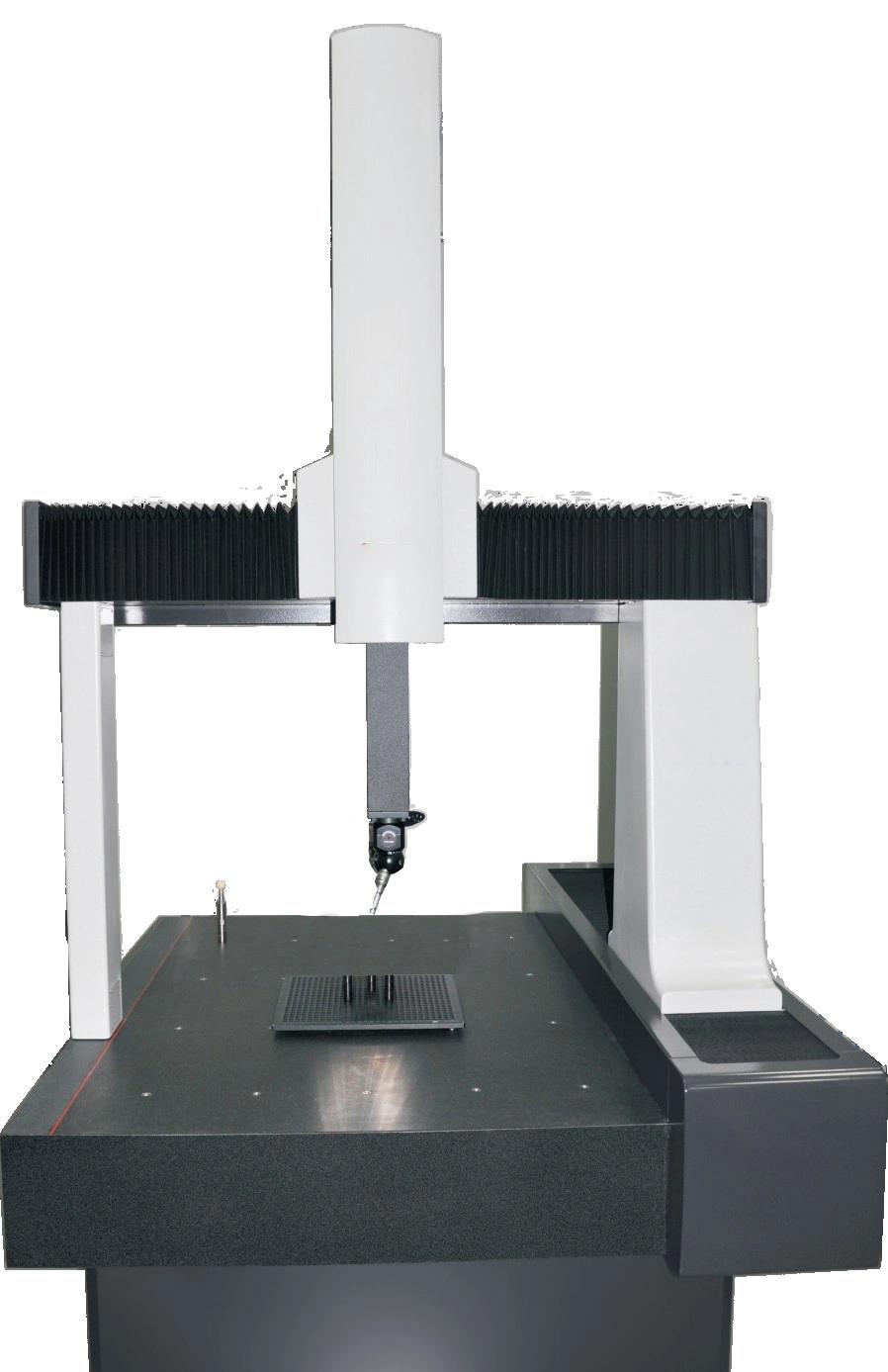

Coordinate measuring machine( Automatic)
ENC 152515 host 1set
Measuring range: x: 1500mm Y: 2500mm Z:1500mm
Structure type: moving bridge
Resolution: 0.5 μ M
The indicating accuracy: E3 = (3.4+ L/300) m (L: mm)
Detection error: R = 3.6 μ M
Machine weight: 28000kg
Weight: 11000kg
Table available size:2960mm X 1830mm
Transmission: flexible synchronous belt
Drive system: DC servo system
Indication system: British Ren I shaw self-adhesive open metal grating ruler
Work machine: high precision granite platform (level 00)
Guide rail type: high precision guide + pre load and high precision air bearing
Air source treatment: Japan SMC
*Distinctive TRICISION^TM bridge design for X beam provides optimum stiffness-to-mass ratio.  The light alloy bridge is 25 percent stiffer than traditional designs and the X rail has a 50 percent lower center of gravity for smooth, precise movement.  Wider bearing separation than competitive bridge designs assures improved control of bridge axis roll for precise volumetric measuring accuracy, reduced repeatability errors, increased acceleration/deceleration and greater measuring throughput.
* Patented precision-machined dovetail guideway in Y axis improves CMM's accuracy and repeatability.
All machine axes' transmission mode is timing belt, whose compact, nonskid structure makes it has excellence of high speed, low noise and easy maintenance.
*Pneumatic counterbalance (adjustable) for Z axis, which makes Z axis operate stably, with automatic brake on emergency condition and keep CMM in safety.
*The scales (gold and steel) of German Heidenhain are certified by PTB (Physikalisch-Technische Bundesanstalt), a German national institute of science and technology. Their excellent veracity and coherence of thermal expansivity ensure the exact and stable thermal compensation.
*Remote mounted drive motors reduce moving mass for faster setting, and dissipate heat away from the machine frame.
*Equipped with the powerful measuring software(PC-DMIS)which second to none, Inspector can handle any common shop measurement and inspection tasks.
