• Model NO.：GD-8019
• Power Supply：AC(220±10%)V, 50Hz, 3500W
• Warranty：1 Year
• Temperature Display：Digital Display
• Working Temperature：160~165 Celsius
• Transport Package：Wooden Case Gd-8019
• Trademark：Gold
• Origin：China
• Production Capacity：100 Piece,Pieces Per Month

Basic Info.

Model NO. GD-8019 Power Supply AC(220±10%)V, 50Hz, 3500W Warranty 1 Year Temperature Display Digital Display Working Temperature 160~165 Celsius Transport Package Wooden Case Gd-8019 Trademark Gold Origin China Production Capacity 100 Piece/Pieces Per Month

Product Description

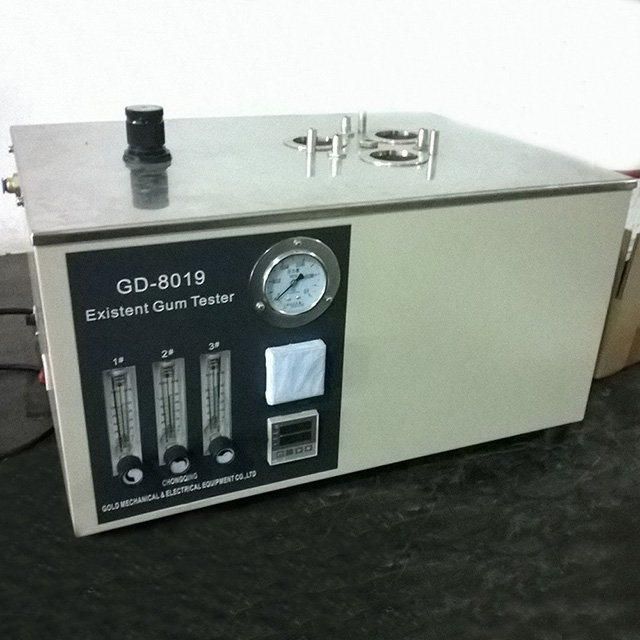

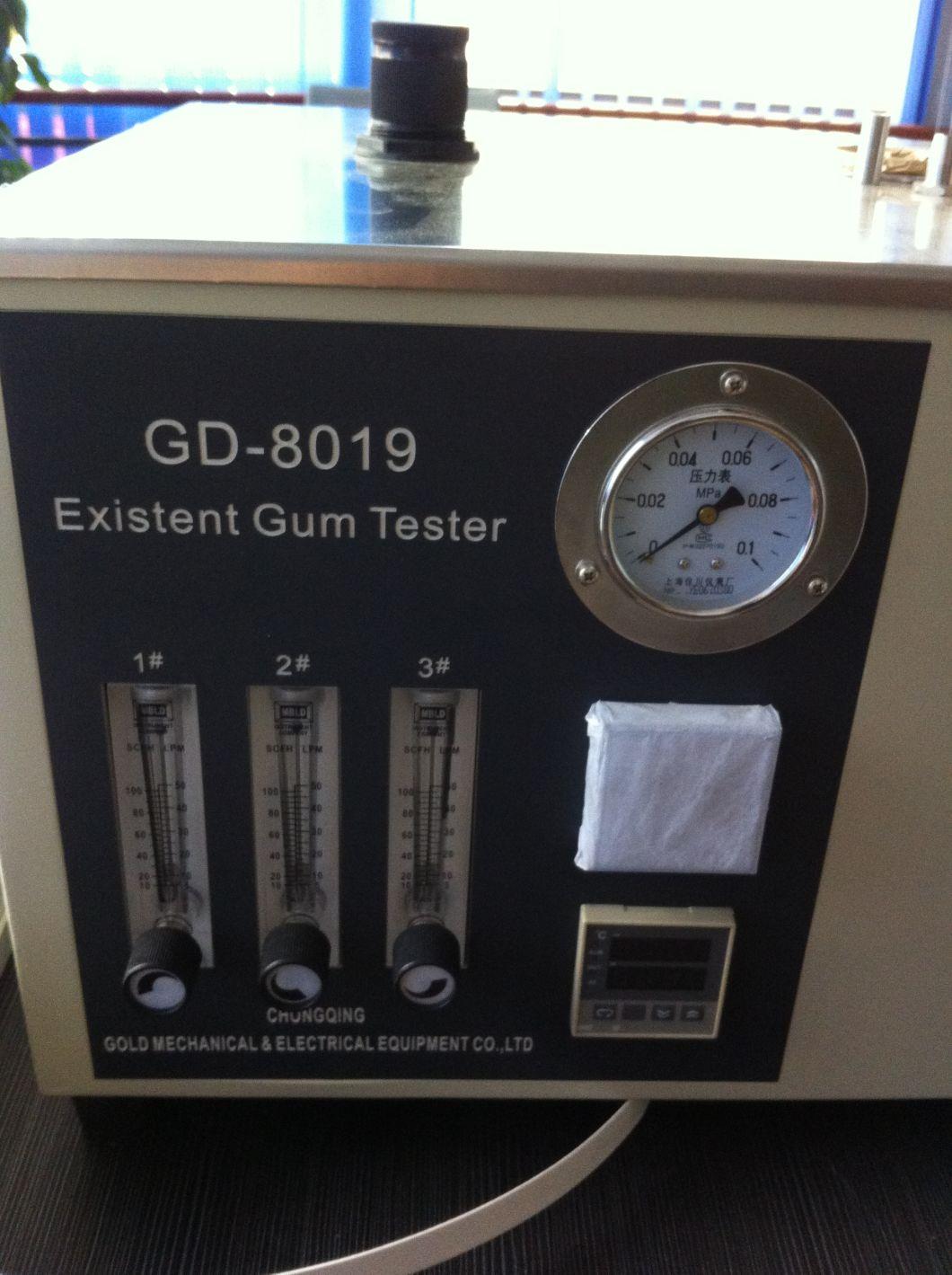

ASTM D381 GD-8019 Aviation Fuels Existent Gum Tester by Jet Evaporation



Introduction:
Aviation Fuels Existent Gum Tester is designed and made as per standard ASTM D381 Standard
test method for gum content in fuels by jet evaporation.

Aviation Fuels Existent Gum Tester is suitable to determine the existent gum content of aviation
gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)



Features:
1.Aviation Fuels Existent Gum Tester equips a specially designed heating bath. The gas circuit is
designed reasonably and the effect of evaporation is good.

2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and
controlled by an independent flowmeter. It can do 3 determinations at the same time.

3. Aviation Fuels Existent Gum Tester is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.


Specifications:

Product name	ASTM D381 GD-8019 Aviation Fuels Existent Gum Tester by Jet Evaporatiom
Power supply	AC(220±10%)V,50Hz,2500W
Dimension of evaporation bath	Φ260mm*130mm
Sample positions	3 positions
Dimension of sample positions	Φ51mm*70mm
Working temperature	(160~165)ºC
Temperature control	Automatic
Temperature display	Digital display
Flow display	Displayed by a ball float type flowmeter.
Working pressure of air reducing valve	0.035MPa
Air source	External connection, over (1000±150)ml/s
Dimension	590*480*340mm (Thermometer holder is not included)

Note: An air compressor is equiped.

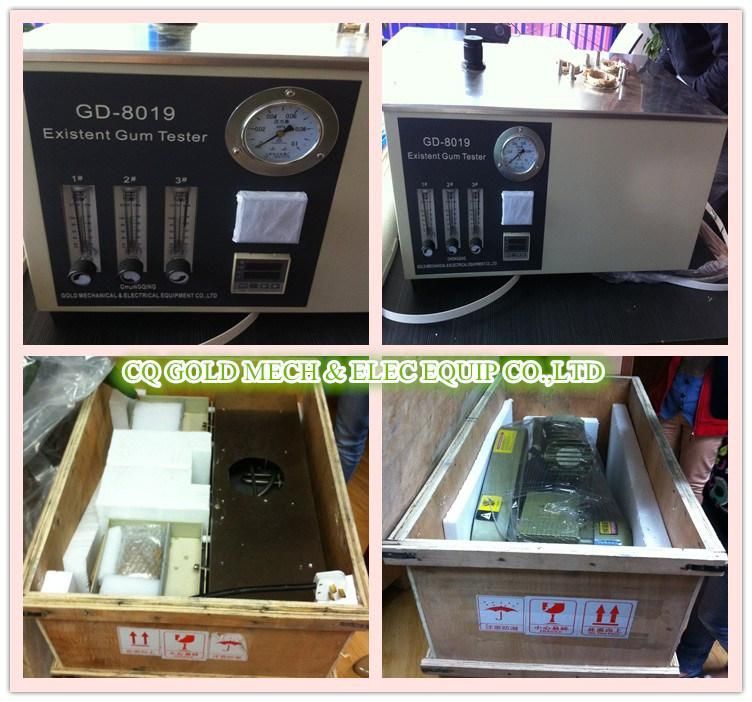

Product Packing:

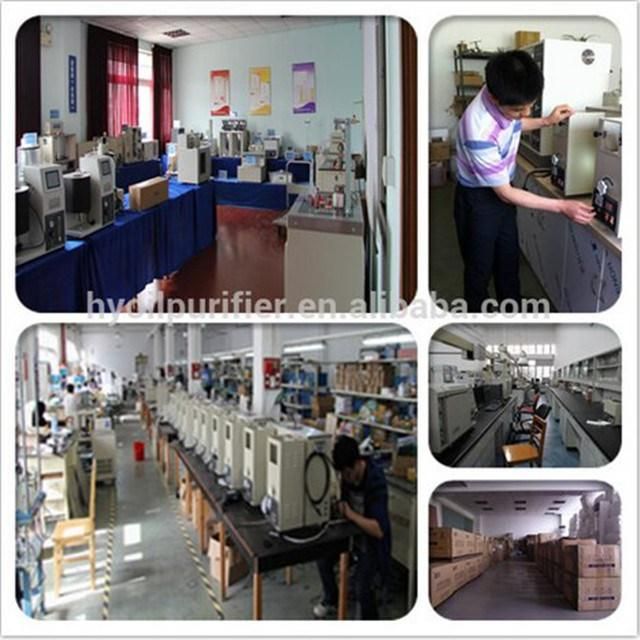

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
