• Model NO.：CY-150
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. CY-150 Production Capacity 5000pieces/Month

Product Description

 Laboratory High Precision Sample diamond cutting machine /cutting machine blades

Description of the low speed diamond saw:
CY-150 is CE certified low-speed diamond saw, which equips with the advanced digital micrometer and digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples, and even plastic samples.

Specification of the low speed diamond saw:

Voltage and Power	AC 110V/220V switchable for worldwide usage 110VDC Motor 8Amp fuse installed
Speed Range	Variable 0-600 rpm with LED digital display

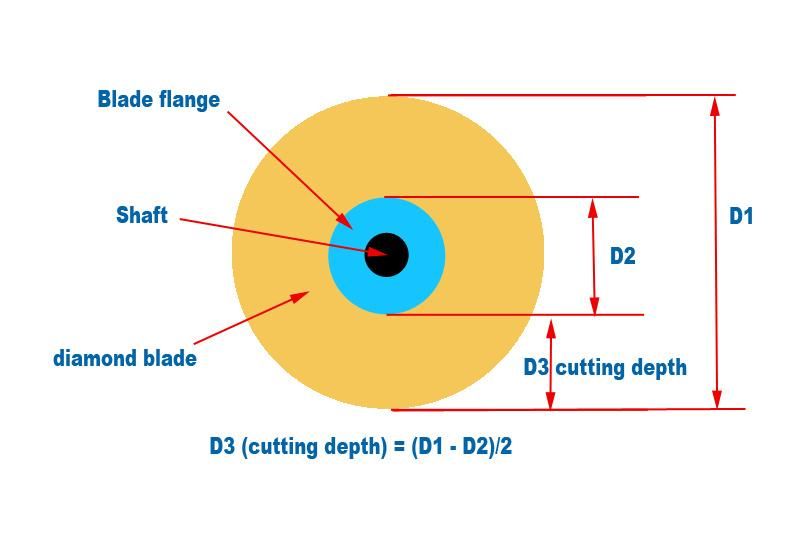

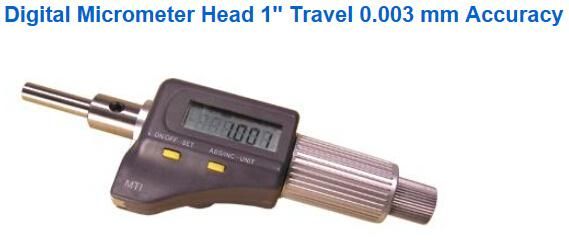

Cutting Width & Depth	The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. 32.5mm max. cutting depth (when using 35mm Dia. blade flange) Please click the pic below to know the cutting depth
Diamond Blades	Three blades are included for cutting various materials SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys. Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel. Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials Optional:For better result, please order our CBN blade & LubeCool -150 Smart Solid Lubricant for cutting ferrous materials
Sample Holder & Mini-vise	Two angle adjustable sample holder is included, please click picture below for the details (max. opening 26mm) One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.
Package Dimensions	19"(L) x 15"(W) x 15"(H)
Shipping Weight & Dimension	32 lbs, 18" x 14" x 14"
Warranty	Two years limited with lifetime support (not including rusted parts due to inadequate storage conditions)

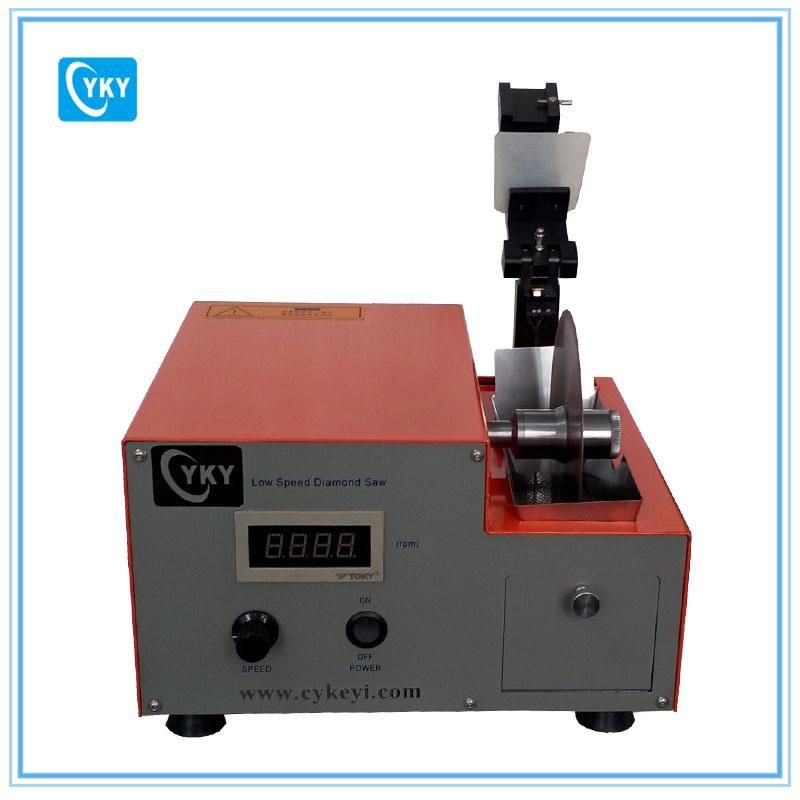

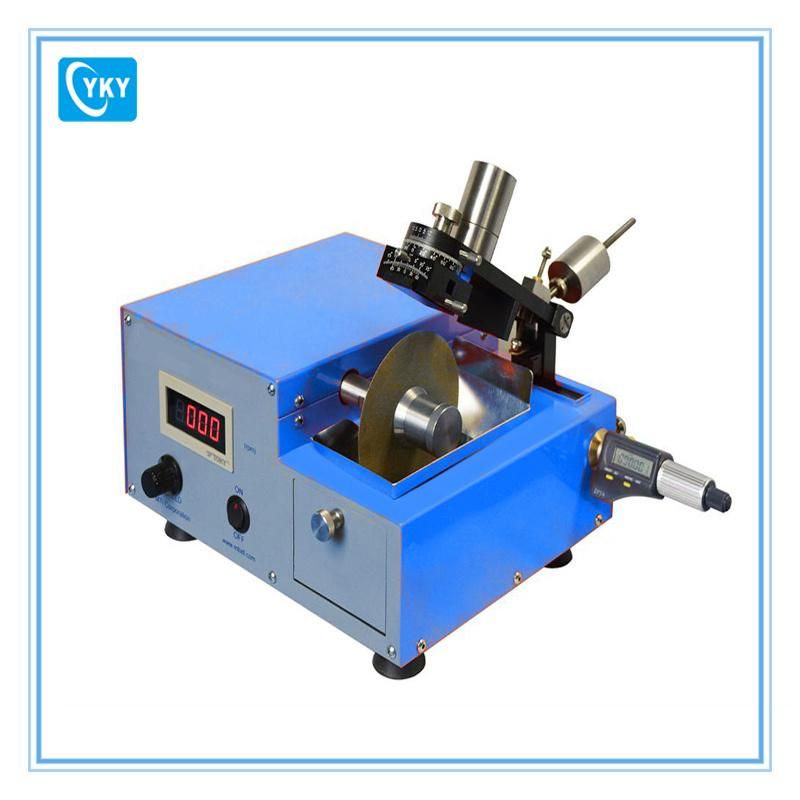

reference picture of the low speed diamond saw:

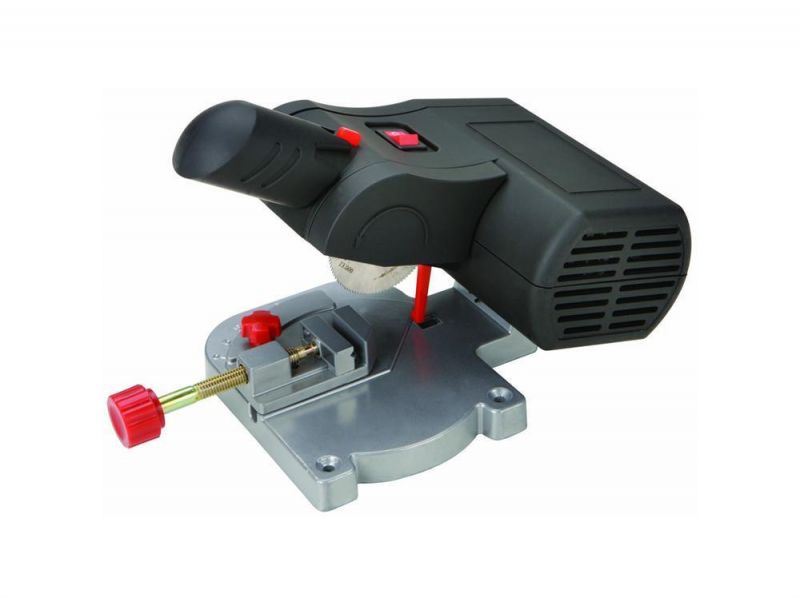

Other related cutting saw that you may need:

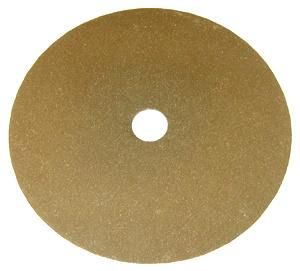

Cutting Blades Optional:
