• Model NO.：AS-1
• HS Code：90248000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. AS-1 HS Code 90248000 Production Capacity 500 Sets/Month

Product Description

Direct shear test machine

STANDARD: ASTM D3080, BS 1377:7, AASHTO T236 NF P094071-1/2

    To determine the shearing strength of the soil using the direct shear apparatus.
    In many engineering problems such as design of foundation, retaining walls, slab bridges, pipes, sheet piling, the value of the angle of internal friction and cohesion of the soil involved are required for the design. Direct shear test is used to predict these parameters quickly. The laboratory report cover the laboratory procedures for determining these values for cohesionless soils.
    Strain controlled direct shear machine consists of shear box, soil container, loading unit, proving ring, dial gauge to measure shear deformation and volume changes. A two piece square shear box is one type of soil container used.
    A proving ring is used to indicate the shear load taken by the soil initiated in the shearing plane.

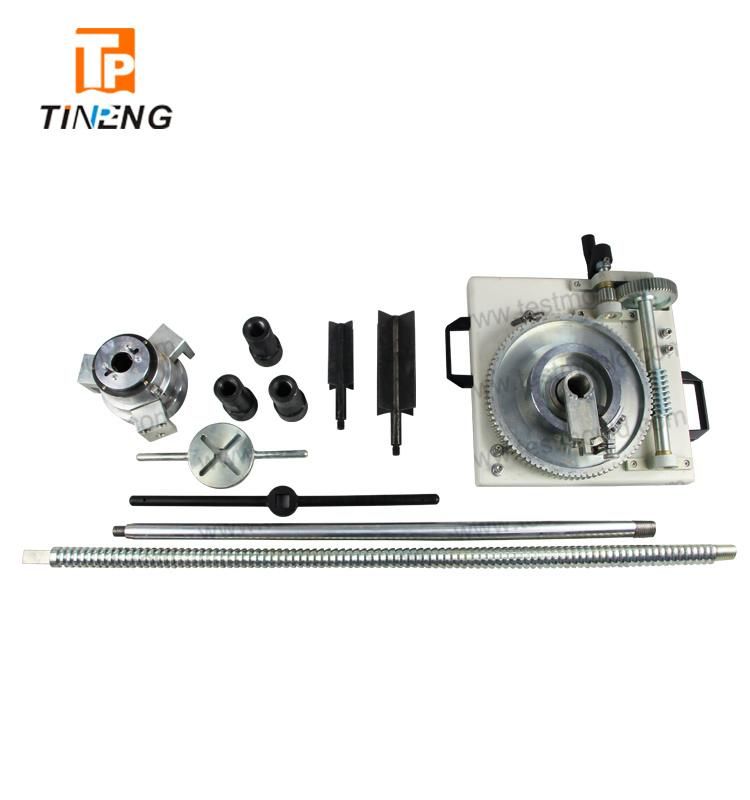

AS-1 (Cross plate) shear test machine
Cross board dimension: Ф75×150 mm, Ф50×100 mm
Steel ring torsion: 80N.m
Torsion accuracy: 0.55N.m
Guide rod: Ф30 x 1040mm
Dimension(mm): 430 x 910 x 220 (LxWxH)
Weight: 40 Kg
