Gd-F02-20 20L Small Volumn Automatic Asphalt Mixture Blender / Bitumen Mixture Blender

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type：Bench Type, Desktop Type, Not Portable
  • Display：Digital
  • Usage：Asphalt Mixture Blender
  • Mixer Type：Agitator
  • Product Type：Asphalt Mixture Blender
  • Max. Loading Capacity：20L

Base Info

  • Model NO.：GD-F02-20
  • Voltage：AC 380V;16A;50Hz
  • Power(W)：2000W
  • Dimension(L*W*H)：800*500*1500mm
  • Warranty：1 Year
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Product Name：Gd-F02-20 20L Small Volumn Automatic Asphalt Mixtu
  • Transport Package：Wooden Case for Gd-F02-20
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Product nameGd-F02-20 20L Small Volumn Automatic Asphalt Mixture BlenderBlending amount20LTemperature control rangeRoom temperature~200ºCTemperature control accuracy±5ºCTiming range (0~999) sTiming accuracy±0.1sRotation rate of paddleComplete revolution 47R/min, Autorotation 76R/minBlending motorAlternating current 380V, 550W;1400R/min;50HzLifting motorAlternating current 380V,250W;1400R/min;50HzOverall dimension600mm×400mm×1300mmNet weight215KgPower supplyAC (380±10%) V; 16A; 50Hz(three-phase four-wire with null line)Ambient temperature (-5~+50)ºC Relative humidity≤80%


Detail Images:

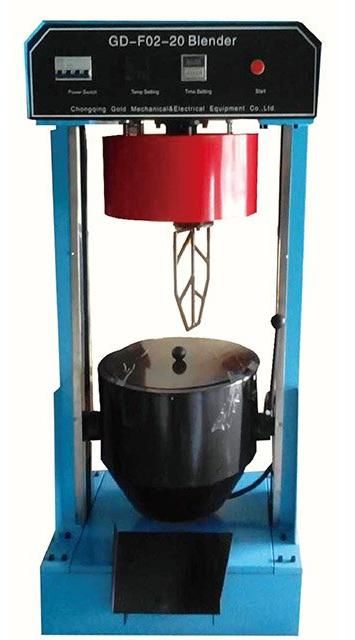

Gd-F02-20 20L Small Volumn Automatic Asphalt Mixture Blender / Bitumen Mixture Blender

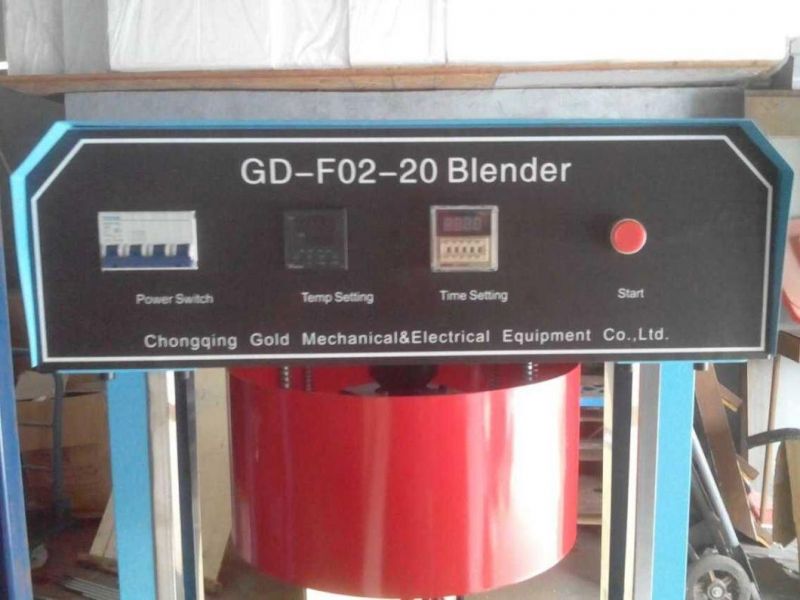

Gd-F02-20 20L Small Volumn Automatic Asphalt Mixture Blender / Bitumen Mixture Blender
