• Model NO.：GD-265H
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Na
• Kinematic Viscosity Tester Application：Petroleum Oil
• Kinematic Viscosity Tester Features：Automatic, Double Layer, Intelligent
• Testing Mode：Automatic
• Standards：Astmd 445
• MOQ：1 Set
• OEM Supply：Yes
• Warranty or Guarantee：1 Year
• Dimension：640mm*570mm*870mm
• Service：Engineer Available to Service Overseas
• Power Supply：AC(220±10%)V, 50Hz
• Heating Power：1700W
• Temperature Range：Ambient to 100.0ºC
• Temperature Control Accuracy：±0.01ºC
• Bath Capacity：20L
• Timing Range：0.0s~9999.9s
• Transport Package：Packed in Container
• Specification：640 Mm*570mm*870mm
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets, Month

Basic Info.

Model NO. GD-265H Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Na Kinematic Viscosity Tester Application Petroleum Oil Kinematic Viscosity Tester Features Automatic, Double Layer, Intelligent Testing Mode Automatic Standards Astmd 445 MOQ 1 Set OEM Supply Yes Warranty or Guarantee 1 Year Dimension 640mm*570mm*870mm Service Engineer Available to Service Overseas Power Supply AC(220±10%)V, 50Hz Heating Power 1700W Temperature Range Ambient to 100.0ºC Temperature Control Accuracy ±0.01ºC Bath Capacity 20L Timing Range 0.0s~9999.9s Transport Package Packed in Container Specification 640 Mm*570mm*870mm Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/ Month

Product Description

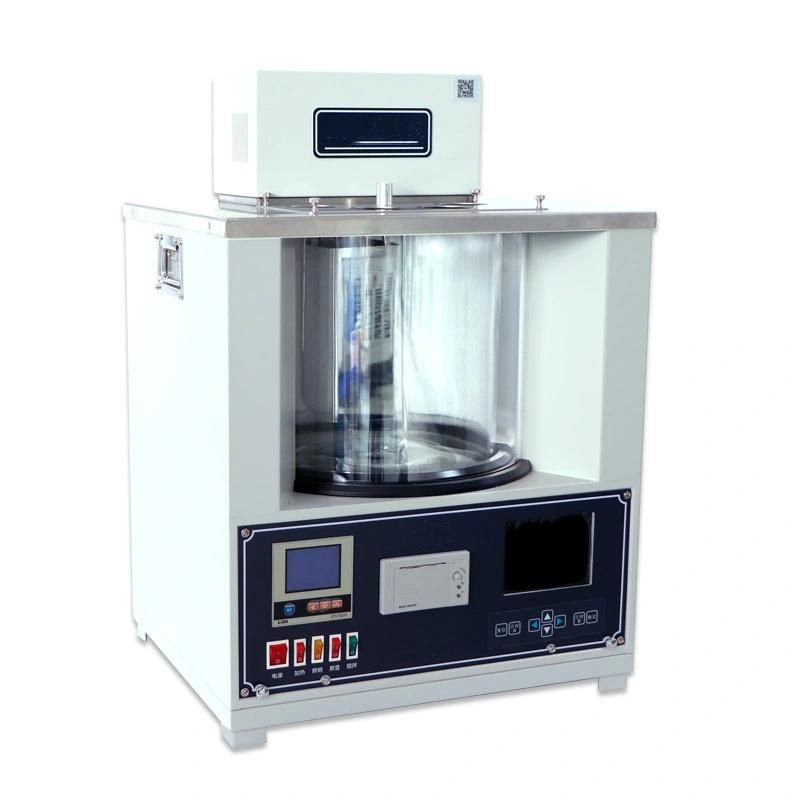

 ASTM D445 Automatic Petroleum Products Kinematic Viscosity Analyzer Test Machine


Introdution:
The instrument is designed and made as per GB/T265 "Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquids) at a certain temperature. The instrument is also in accord with SY/T5651 "Technical Condition for Petroleum Products Kinematic Viscosity Tester".

Features:
Two layers bath; Digital temperature controlling;
It can cut off a group of heater in time; Test time and test results shown by a color LCD.
It can time test time automatically, preset system parameters, calculate and print viscosity value at the end of test.

Specifications:
1. Power supply: AC 220 V± 10%, 50 Hz;
2. Heating power: 1700 W;
3. Temperature range: Ambient temperature~100.0Centigrade;
4. Temperature controlling accuracy: ± 0.01Centigrade;
5. Bath cubage: 20 L;
6. Timing range: 0.0s~9999.9s;
7. Timing accuracy: Not more than ± 0.05% in 60 min;
8. Sample quantity: 4 piece at the same time;
9. Stirring motor: 6 W, 1200 RPM;
10. Operation environment:
(1) Ambient temperature: -10~35Centigrade;
(2) Relative humidity: ≤ 85%;
11. Temperature sensor: Industrial platinum, Pt100;
12. Total power consumption: Not more than 1800 W;
13. Capillary Viscometer: 7 pieces in a group; Inner diameters of them are 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm respectively.

Model	GD-265B	GD-265C	GD-265D	GD-265D-1	GD-265H	GD-265H-1
Range	ambient~ 100	ambient~ 100	ambient~ 100	ambient~ 100	ambient~ 100	ambient~ 100
Temp. Control(Centigrade)	±0.1	±0.1	±0.01	±0.01	±0.01	±0.1
Style	continuous	continuous	continuous	continuous	continuous	continuous
Single/ Double	S	D	D	D	D	S
Samples	2	4	4	4	4	2
Timing	N	N	N	Y	Y	Y
Automatic calculate and print	N	N	N	N	Y	Y

Packing & Delivery


About us

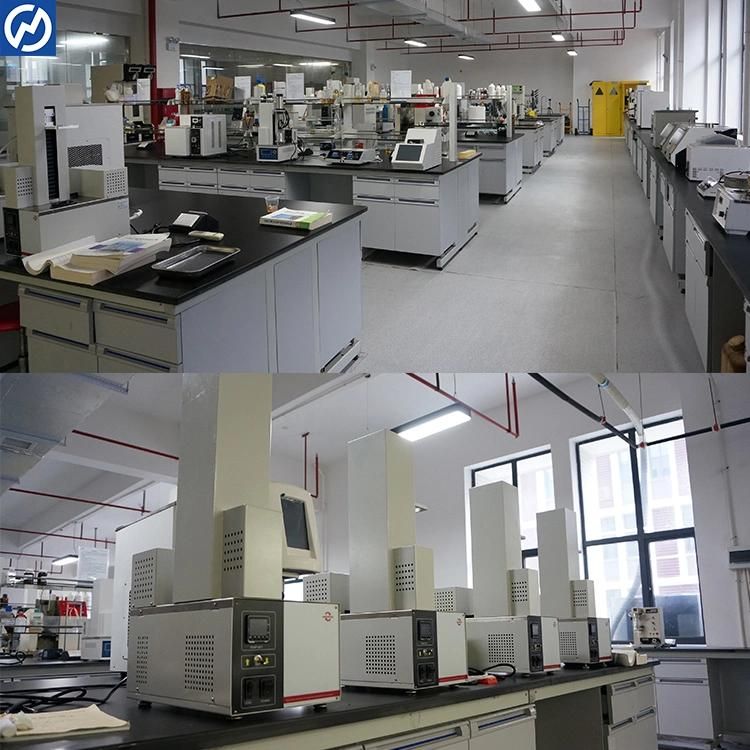

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. which is mainly design and manufacture the petroleum testing instrument, asphalt testing equipment and related lab equipment.After more than 20 years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument and asphalt testing instrument. We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.And we have gained strong advantage and high reputation in international market
