High Quality Fabric Bursting Strength Tester / Fabric Tensile Strength Tester
Beijing Ron-En Machinery & Integration Co., Ltd.- After-sales Service：Provide Solutions Within 24
- Warranty：1 Year
- Max Diameter of Workpiece：1000mm
- Mass Scope of Workpiece：>20000kg
- Type：Tensile Testing Machine
- Maxcapacity：>1000KN
Base Info
- Model NO.：Ronen-JC-10
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Max. Load(Kn)：2000
- Load Accuracy：Class1
- Load Range：2%~100%F-S
- Load Resolution：1,300000
- Accuracy of Displacement：Within±0.5%of Indicating Load
- Regulated Step of Stationary Grip(mm)：500
- Working Space Maximum Length (Not Includ：5000
- Cylinder Working Space(mm)：1500
- Grips Minimum Space(mm)：600
- Grips Maximum Space(mm)：3500
- Transport Package：Seaworthy Packing
- Specification：Metal
- Trademark：Ronen
- Origin：Hebei, China
- Production Capacity：10 Set,Sets Per Month
Description
Max. Load(kN)
2000
Load accuracy
Class 1
Load range
2%~100%F·S
Load resolution
1/300000
Accuracy of displacement
Within±0.5%of indicating load
Resolution of displacement (mm)
0.005
Regulated step of stationary grip(mm)
500
Working space maximum length (not including cylinder)(mm)
5000
Cylinder working space(mm)
1500
Grips minimum space(mm)
600
Grips maximum space(mm)
3500
Ronen Group domestic market share is more than 60%, and In recent years, we have exported our machines to USA, Europe, Russia, Egypt, Japan, Korea etc. more than 25 countries.
Ronen will always be here for you!
Application:

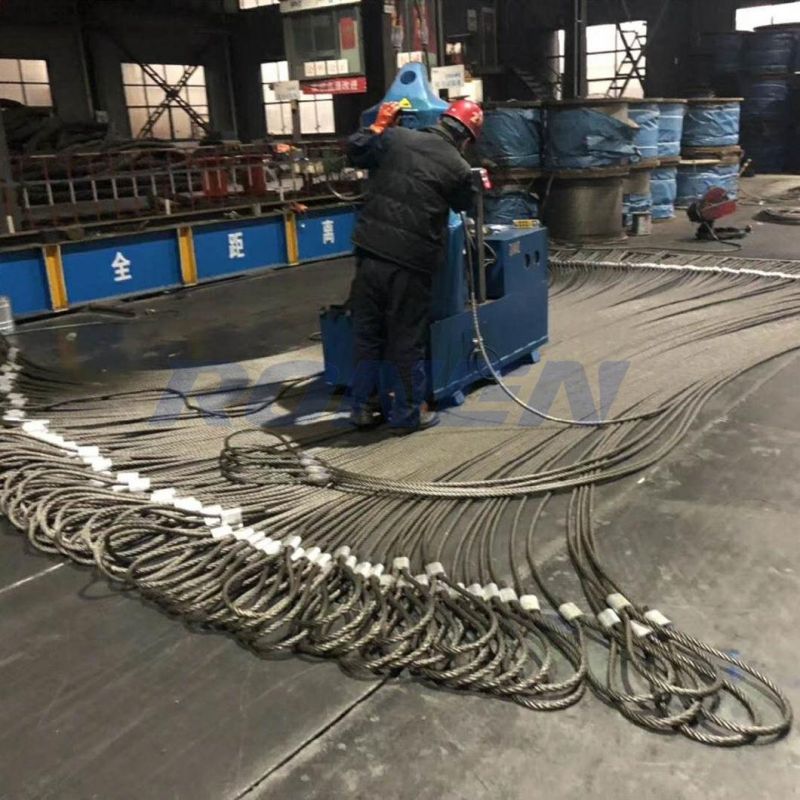

Material like wire rope, cable, nylon rope, sulators string and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user' programming function. It's widely used in some plants who produce longer materials.
