• Model NO.：SG-S05A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control, Computre Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Function：Meature About Vulcanization
• After Serveice：2 Year
• Curve：S′ , S′′ Ml, Mh, Ts1-T90....
• Transport Package：Standard Export Wooden Case
• Specification：Electronic
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. SG-S05A Loading Method Dynamic Load Display Digital Control Computer Control, Computre Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Function Meature About Vulcanization After Serveice 2 Year Curve S′ , S′′ Ml, Mh, Ts1-T90.... Transport Package Standard Export Wooden Case Specification Electronic Trademark Evertech Origin Shandong, China (Mainland) HS Code 84778000 Production Capacity 100 Set/Sets Per Month

Product Description

Product Description

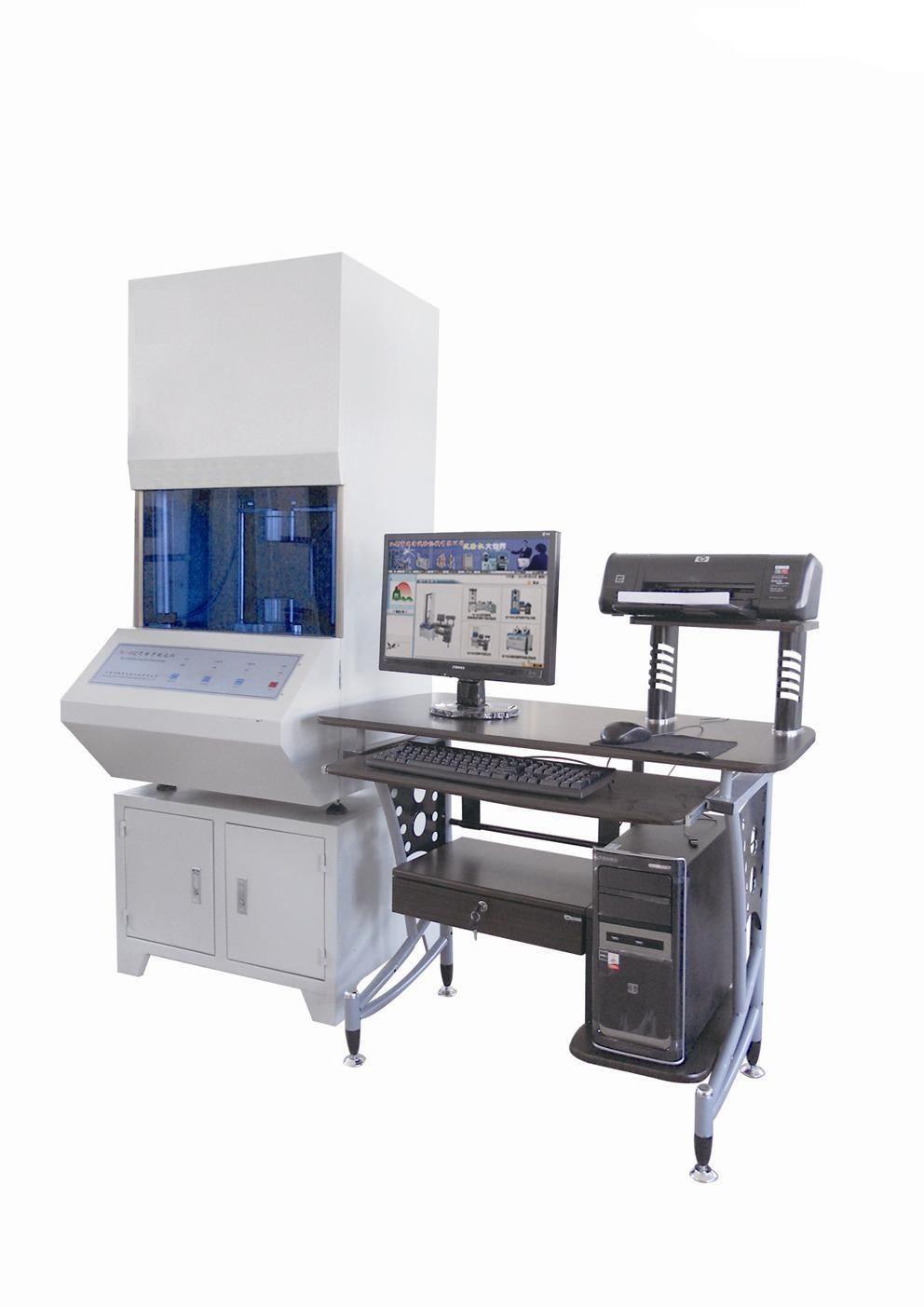

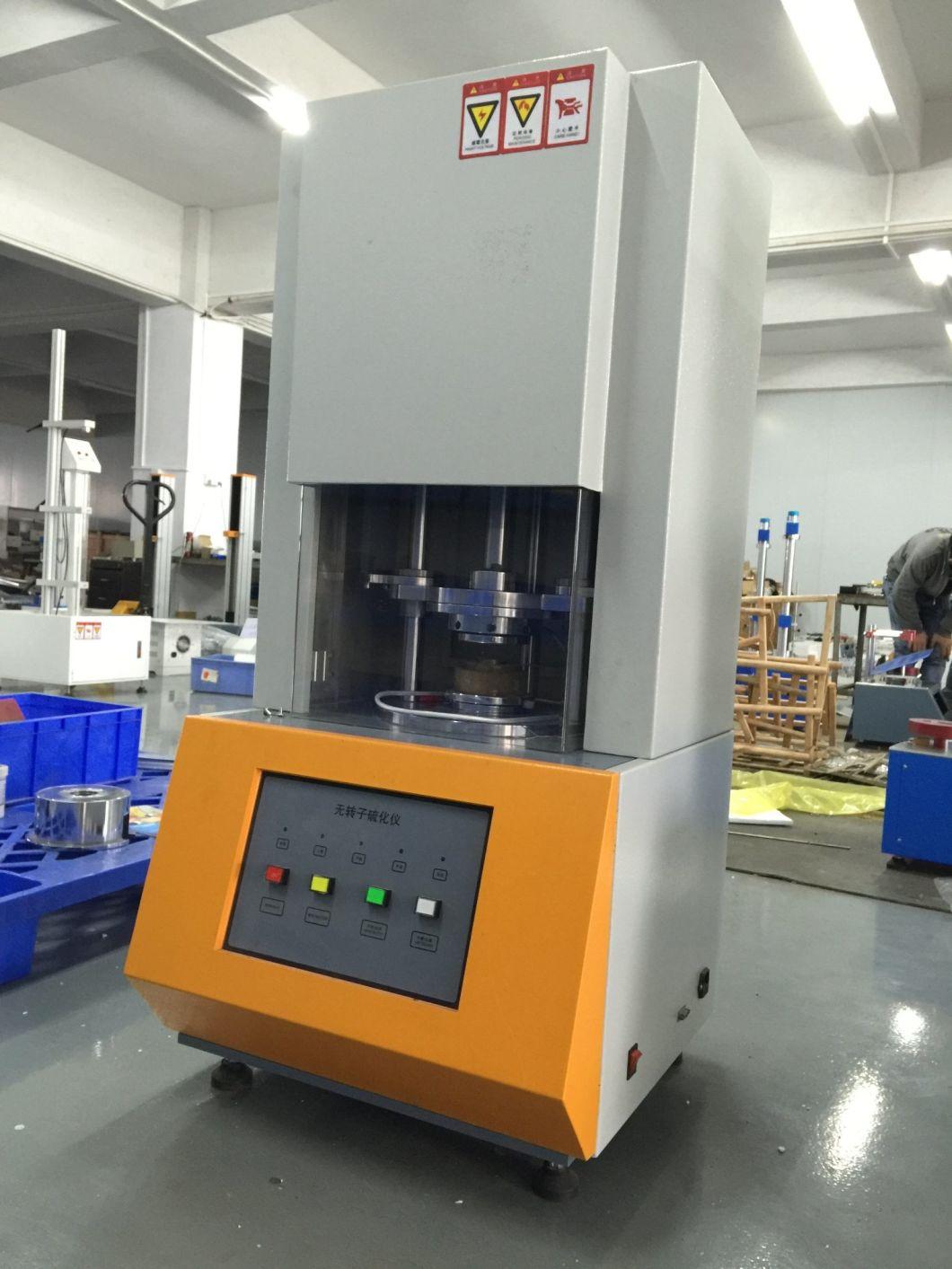

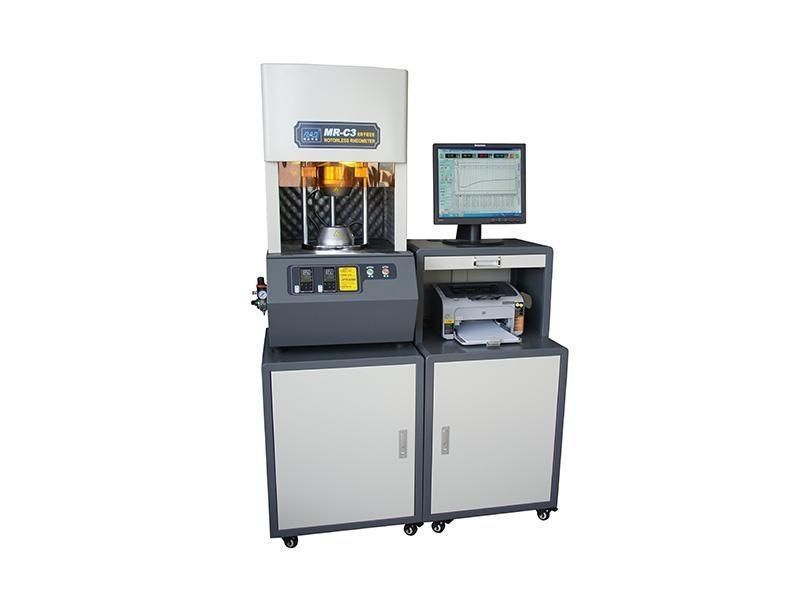

  SG-S05A MOVING DIE RHEOMETER(MDR)

Moving die Rheometer, Rotorless rheometer,viscometer rheometer



This tester is rotorless and moving die rheometer, it will satisfy the rubber industry`s needs in order to



measure vulcanization viscosity and elastic modulus. It will improve the quality and consistency. It tests the



feature about vulcanization and searches for the best suitable vulcanization time. It adopts digital intelligent



temperature-controller to adjust and sets easily.Its stability, reappear and accuracy is better than the general



rotor rheometer.The microcomputer uses import CMOS chip which has high dependability.It drawscalculates



and prints automatically,and has copy or blowwing up function. It adopts computer-control and interface to



collectstore or deal with data and print test result .This machine's function is better than other types and shows



high automatization features. It has functions about curve-comparing and blow up.It uses series of windows



operation system flat and graphical software operation interface.The data is dealed with much truly.And you



will automatism get TS1~T90, ML, MH, TanMH, ML, TanML, CRI, @MH etc.The user's test operation



becomes faster,flexibly and protect conveniently.





Model	DZ-321
Torque range	0-5N.M,0-10N.M,0-20N.M
Swing angle	±0.5 Centigrade ,±1 Centigrade , ±3 Centigrade
Effective test width	150mm
Pressure	0.4Mpa
Humidity range	55--75%R.H
Compressed air	0.35-0.40Mpa
Swing frequency	100r/min (about 1.67HZ)
Air-pressure requirment	0.5Mpa--0.65MPa (user prepare the dia 8 trachea)

Leave an inquiry for more details and  others testers,data,standard,packing, price, shipment, payment and discount...
