• Model NO.：HD-E801
• Power Source：AC220V
• Certificate：ASTM,ISO,RoHS,GB
• Warranty Period：12 Months
• Relative Humidity：60%Rh Above
• Manufacturing Material：SUS#304 Stainless Steel
• Ozone Concentration：1000pphm; Can Adjustable
• Model：HD-E801
• Ozone Produced Mode：Ozone Generator or UV Absorption Method
• Inside Air Velocity：Over 2 Feet , Sec
• Inside Size：500*500*600 mm
• Power：AC220V,60Hz or 50 Hz(According to The Reuqirement
• Transport Package：Strong Wooden Case
• Trademark：Haida
• Origin：China
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E801 Power Source AC220V Certificate ASTM/ISO/RoHS/GB Warranty Period 12 Months Relative Humidity 60%Rh Above Manufacturing Material SUS#304 Stainless Steel Ozone Concentration 1000pphm; Can Adjustable Model HD-E801 Ozone Produced Mode Ozone Generator or UV Absorption Method Inside Air Velocity Over 2 Feet / Sec Inside Size 500*500*600 mm Power AC220V,60Hz or 50 Hz(According to The Reuqirement Transport Package Strong Wooden Case Trademark Haida Origin China Production Capacity 150 Sets/Month

Product Description

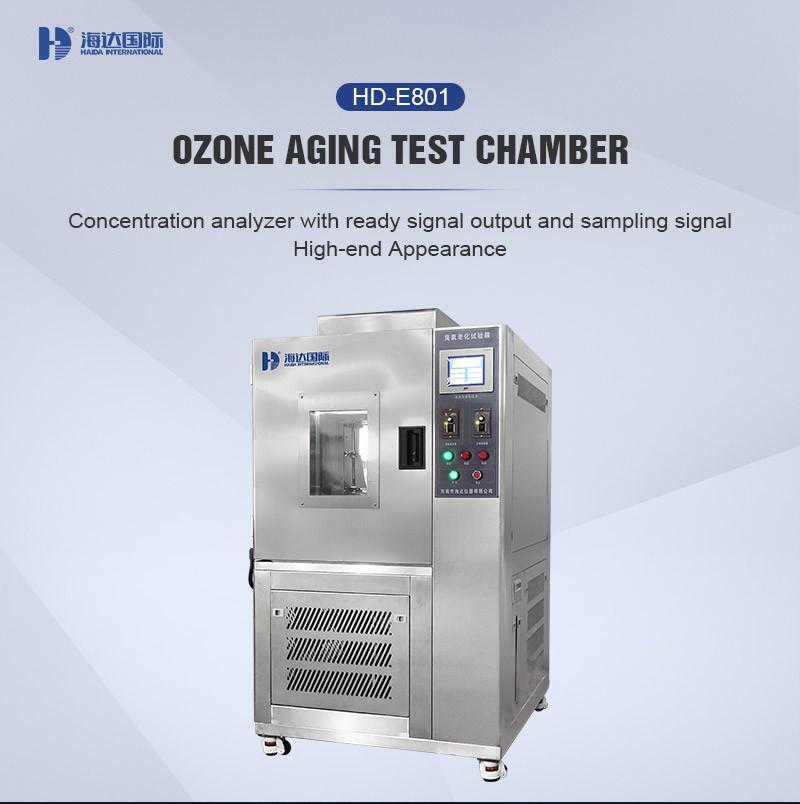

                                  Large Materials Ozone Climate Test/Testing Machine

Equipment summary:
Ozone levels in the atmosphere is the main factors of rubber cracking, aging tester simulation and strengthen the ozone in the atmosphere conditions, studied the effect of ozone on rubber, rubber resistance to ozone aging fast identification and evaluation of performance and the antiozonant shielding efficiency of the method, and then take effective measures, the anti aging in order to improve the service life of rubber products.


Applicable industries:
Rubber Ozone Test Chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; Automobile production; Wire and cable; Packing materials; Instruments and meters; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratories; Inspection arbitration, and technical supervision departments and other rubber products.



Corresponding standard:
JIS K 6259; ASTM1149; ASTM1171; ISO1431; DIN53509; GB7762; GB/T13642

Product characteristic
1.A wide range of concentration Settings (usually 20 to 250pphm, or as specified by the customer) can meet different customer needs;
2.A sophisticated ozone monitoring system can accurately control and measure the concentration of ozone;
3.Equipped with static and dynamic test fixture in accordance with international standards;
4.Good environmental control system: ozone concentration can be quickly balanced in continuous cycle test;
5.The test tank has automatic temperature holding function;
6.High efficiency and low cost: the test can be completed automatically after the simple test conditions are set.



Parameter

Model	HD-E801
Ozone concentration	5~200pphm (adjustable) 200~1000pphm(adjustable)
Relative humidity	No humidity, but can produce according to your requirement
Temperature	RT+10 ~ +70 °C
Ozone produced mode	Ozone  generator or UV absorption method
Inside air velocity	over 2 feet / sec
Degree of ozone concentration fluctuation	10%
Inside size	500*500*600 mm
Air flow	A.0-6 cfm  B. 10-20 cfh
weight	250kg
power	AC220V,60HZ or 50 HZ(according to the reuqirement )
Accessories	tensile fixture 6 groups

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Company Information:


Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
