• Model NO.：HD-A502S-1200
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Top
• Model：HD-A505s-1200
• Unit (Switchable)：Kg, Lb, N
• Capacity (Optional)：5 T
• Load Resolution：1,250,000
• Load Accuracy：≤0.5%
• Test Space (L×w×h)：1000×1200×1200mm
• Speed of Compression：10 ± 3 mm,Min
• Operation Mode：PC
• Report Items：Serial Number, Peak Value, Average Value, Designat
• Structure：Panasonic Servo Control System (Japan); Ordinary S
• Transport Package：Strong Wooden Case
• Specification：capacity2000Kgf
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A502S-1200 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Top Model HD-A505s-1200 Unit (Switchable) Kg, Lb, N Capacity (Optional) 5 T Load Resolution 1/250,000 Load Accuracy ≤0.5% Test Space (L×w×h) 1000×1200×1200mm Speed of Compression 10 ± 3 mm/Min Operation Mode PC Report Items Serial Number, Peak Value, Average Value, Designat Structure Panasonic Servo Control System (Japan); Ordinary S Transport Package Strong Wooden Case Specification capacity2000Kgf Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

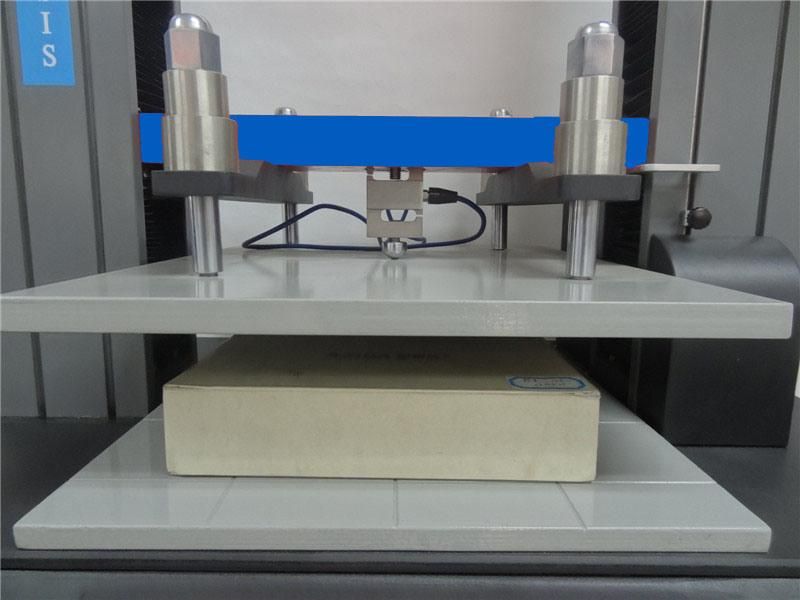

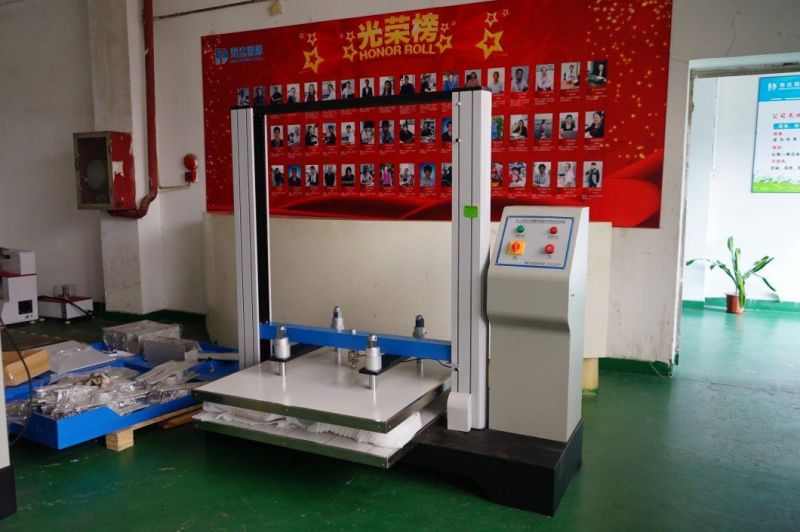

                     PC control electronic Packaging Testing machine

Company Services:

 All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.

The usage:

Box compression tester is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases

Feature:

1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11.With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

Main parameter:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Model	HD-A502S-1200
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2 T
Load Resolution	1/100,000
Load Accuracy	≤0.5%
Test Space (L×W×H)	1200×1200×1200mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor ( Taiwan); Ordinary screw rod
Dimension (L×W×H)	2000×1200×2030mm
Power	1ø, 220v/ 50Hz
Weight	Approx.730kg
Safety Devices	Overload protection, overvoltage protection & limited position
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





Our Company
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Customer Feedback


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
