• Model NO.：HD-A502S-1200
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Model：HD-502s-1200
• Capacity：2 T
• Load Resolution：1,100,000
• Test Space：1200×1200×1200mm
• Speed of Compression：10 ± 3 mm,Min
• Structure：AC Frequency Conversion Motor
• Dimension：2000×1200×2030mm
• Power：1ø, 220V, 50Hz
• Standard：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Safety Devices：Safety Devicestoverload Protection, Overvoltage Pr
• Transport Package：Strong Plywood Case
• Specification：capacity 2000,3000Kgf
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

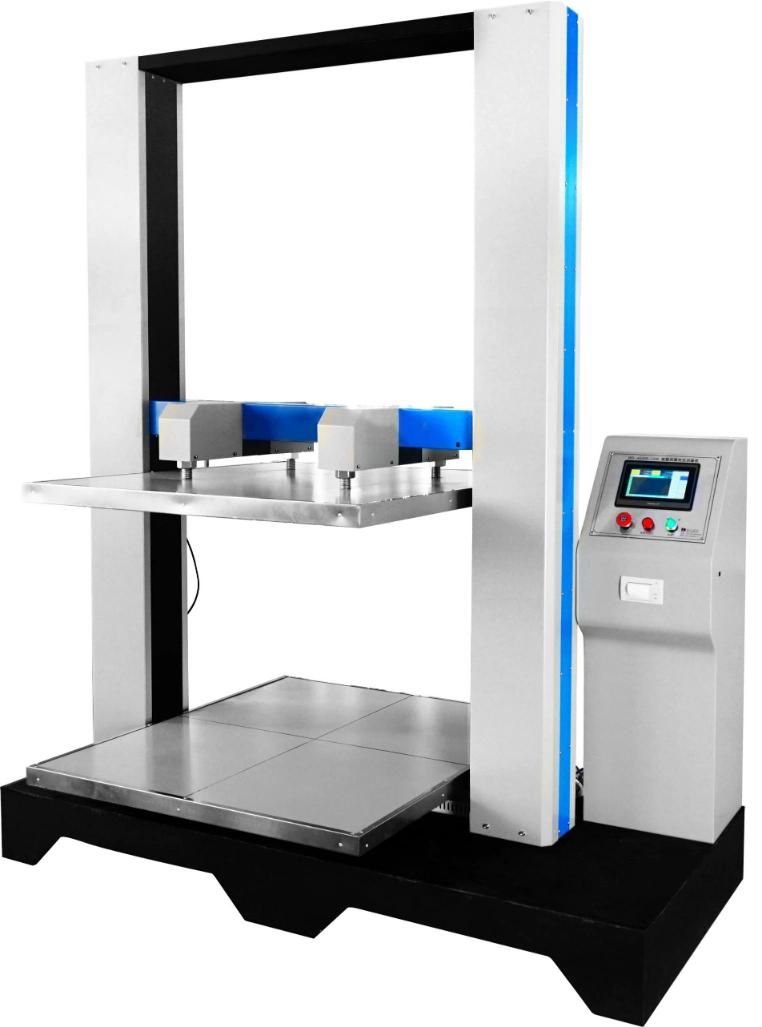

Computer Container Compression Testing EquipmentModelHD-A502S-1200 Unit (switchable) Kg, Lb, N Capacity (optional)2 TLoad Resolution1/100,000   Load Accuracy  ≤0.5% Test Space (L×W×H)1200×1200×1200mmSpeed of Compression10 ± 3 mm/minOperation ModePCReport ItemsSerial number, Peak value, Average value, Designated holding pressure value; all memorable StructureAC Frequency Conversion Motor ( Taiwan);
Ordinary screw rod Dimension (L×W×H)2000×1200×2030mm Power 1ø, 220v/ 50Hz Weight  Approx.730kgSafety DevicesOverload protection, overvoltage protection & limited position protection deviceStandardTAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 (The table parameters for the company Standard Model parameters, we support customer customization parameters)


Features:
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
 It can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
