• Model NO.：PHAS-16
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Length：1780 mm
• Width：800 mm
• Height：1150 mm
• Number of Package：1 Pieces
• Colour：Jp Standard or Custom
• Delivery：Within 25 Days
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHAS-16 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Length 1780 mm Width 800 mm Height 1150 mm Number of Package 1 Pieces Colour Jp Standard or Custom Delivery Within 25 Days Transport Package Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

Brief Introduction
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Range of Application

This balancing machine is widely used in various types of axial ,centrifugal fan single/double plane balance correction.

Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

Production Parameters

Technical data at a glance	PHAS-16
Max Mass of Workpiece (kg)	16
Max Diameter of Workpiece (mm)	Φ700
Distance between Two Support Bearings (mm)	200
Spindle speed	~900
Machine dimension	700x400x850
Motor Power (kw)	1.5 Frequency Conversion
Min Achievable Residual Unbalance Amount(emar)	<=4g. mm/kg(Single/Double plane)

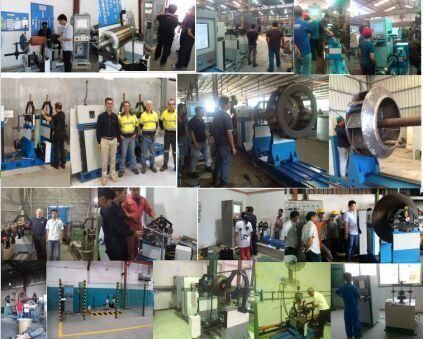

Factory customer
