• Model NO.：WAW-300B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1800kgs
• Power Source：AC380V
• Oil Cylinder Position：Under
• Product Name：Electro-Hydraulic Servo Universal Testing Machine
• Max.Testing Power：300kn
• Software Control：PC Controlled Electro-Hydraulic Servo Utm Software
• Testing Power Precision：Grade 1
• Max.Tension Distance：750mm
• Compress Distance：0-610mm
• Clamp Dia of Round Specimen：Dia10-32mm
• Clamp Thickness of Flat Specimen：0-15mm
• Clamp Width of Flat Specimen：80mm
• Size of Compression Plate：160mmx160mm
• Bending Stick Distance：350mm
• Bending Stick Width：140mm
• Bending Degree Allowance：100mm
• Main Frame Size：740X580X2045mm
• Controller Size：650X860X1040mm
• Transport Package：Wooden Case
• Specification：740x580x2045mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. WAW-300B Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 1800kgs Power Source AC380V Oil Cylinder Position Under Product Name Electro-Hydraulic Servo Universal Testing Machine Max.Testing Power 300kn Software Control PC Controlled Electro-Hydraulic Servo Utm Software Testing Power Precision Grade 1 Max.Tension Distance 750mm Compress Distance 0-610mm Clamp Dia of Round Specimen Dia10-32mm Clamp Thickness of Flat Specimen 0-15mm Clamp Width of Flat Specimen 80mm Size of Compression Plate 160mmx160mm Bending Stick Distance 350mm Bending Stick Width 140mm Bending Degree Allowance 100mm Main Frame Size 740X580X2045mm Controller Size 650X860X1040mm Transport Package Wooden Case Specification 740x580x2045mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

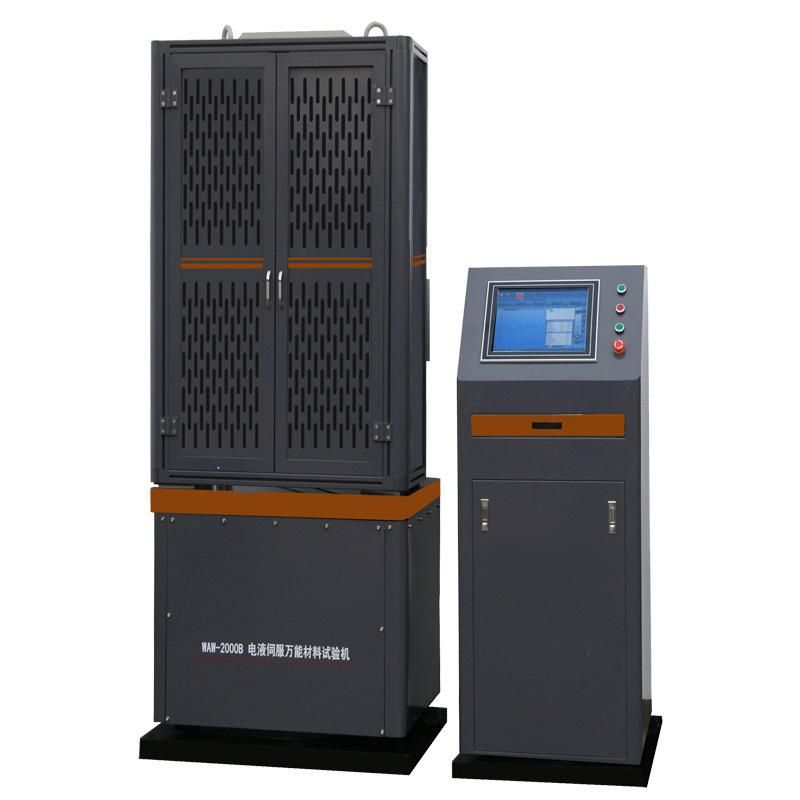

WAW-300 Microcomputer Controlled Electro-hydraulic Servo Universal Testing Machine

Use:
    It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
    The oil cylinder is set on the bottom in the machine, and with double space frames, the test space can be adjusted automatically. The control unit is composed of computer and control system, it process stress, strain and displacement control modes, the test data can be stored at will, andthe data and curves can be reanalyzed, part amplified and data re-edition, test conditions (specimen, measurement) are programmable, all the mechanical properties can be obtained autom

Standard:
    It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant
Specification:

1.Max.testing power	300kn
2.Software control	PC controlled electro-hydraulic servo UTM software
3.Testing power distance	2%-100%FS
4.Distortion testing precision	±1%/±0.5%
5.Distortion testing range	2%-100% full range of extensometer
6.Displacement measuring	0.01mm
7.Max.lift speed of testing board	70mm/min
8.Piston travel	150mm
9.Testing power precision	grade 1
10.Max.tension distance	750mm
11.Compress distance	0-610mm
12.Clamp dia of round specimen	dia10-32mm
13.Clamp thickness of flat specimen	0-15mm
14.Clamp width of flat specimen	80mm
15.Size of compression plate	160mm×160mm
16.Bending stick distance	350mm
17.Bending stick width	140mm
18.Bending degree allowance	100mm
19.Main frame size	740×580×2045mm
20.Controller size	650×860×1040mm
21.oil pump power	1.5kw
22.Distortion:testing device	Staff
23.Overload protection	2-5%
24.Low grip motor power	0.75kW
25.Weight	1800kgs
