• Model NO.：STMGY-1
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：1500
• Power Source：AC380V
• Oil Cylinder Position：Under
• Capacity：0-4000kn 0-5000kn 0-6000kn 0-8000kn 0-9000kn
• Displacement Resolution：0.1 mm
• Max. Distance of The Piston：0-200 mm
• Deformation Display：0-200 mm
• Features：Stainless Steel Housing; Computer Data Processing
• Transport Package：Wooden Case
• Specification：950x400x1160mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STMGY-1 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 1500 Power Source AC380V Oil Cylinder Position Under Capacity 0-4000kn 0-5000kn 0-6000kn 0-8000kn 0-9000kn Displacement Resolution 0.1 mm Max. Distance of The Piston 0-200 mm Deformation Display 0-200 mm Features Stainless Steel Housing; Computer Data Processing Transport Package Wooden Case Specification 950x400x1160mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

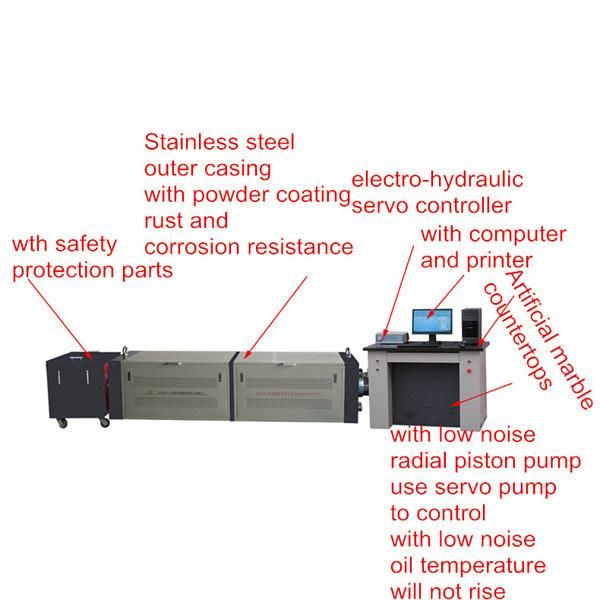

STMGY-1 Microcomputer Dead-load Anchor Testing Machine (Fully automatic)

The machine uses computer for data process, save and printing. It can automatically follow and measure tensile force and displacement, maintain peak value and inspect loading speed. All test records can be saved, mechanical performance index can be calculated and integrated test report can be printed. This anchor testing machine is reccomended to university, industrial enterprises, quality monitoring department and measuring & calibration department for mechanical property tests of raw materials.


Features: Stainless steel housing; computer data processing; easy to operate,
using servo motor driven mute pump.

Parameters:


Capacity	0-4000kN 0-5000kN 0-6000kN 0-8000kN 0-9000kN
Displacement resolution	0.1 mm
Max. distance of the piston	0-200 mm
Deformation display	0-200 mm
