• Model NO.：HTPV-08
• Application：Solar Panel
• Reverse Load：2400PA
• Dynamic Laod Test Frequency：7s
• Cylinder：8 (Can Customized)
• Transport Package：Wooden Case
• Specification：IEC61215, UL1703, IEC61646, IEC62782
• Trademark：HOTOTECH
• Origin：Dongguan, Guangdong Province
• HS Code：9031809090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. HTPV-08 Application Solar Panel Reverse Load 2400PA Dynamic Laod Test Frequency 7s Cylinder 8 (Can Customized) Transport Package Wooden Case Specification IEC61215, UL1703, IEC61646, IEC62782 Trademark HOTOTECH Origin Dongguan, Guangdong Province HS Code 9031809090 Production Capacity 100 Sets / Month

Product Description

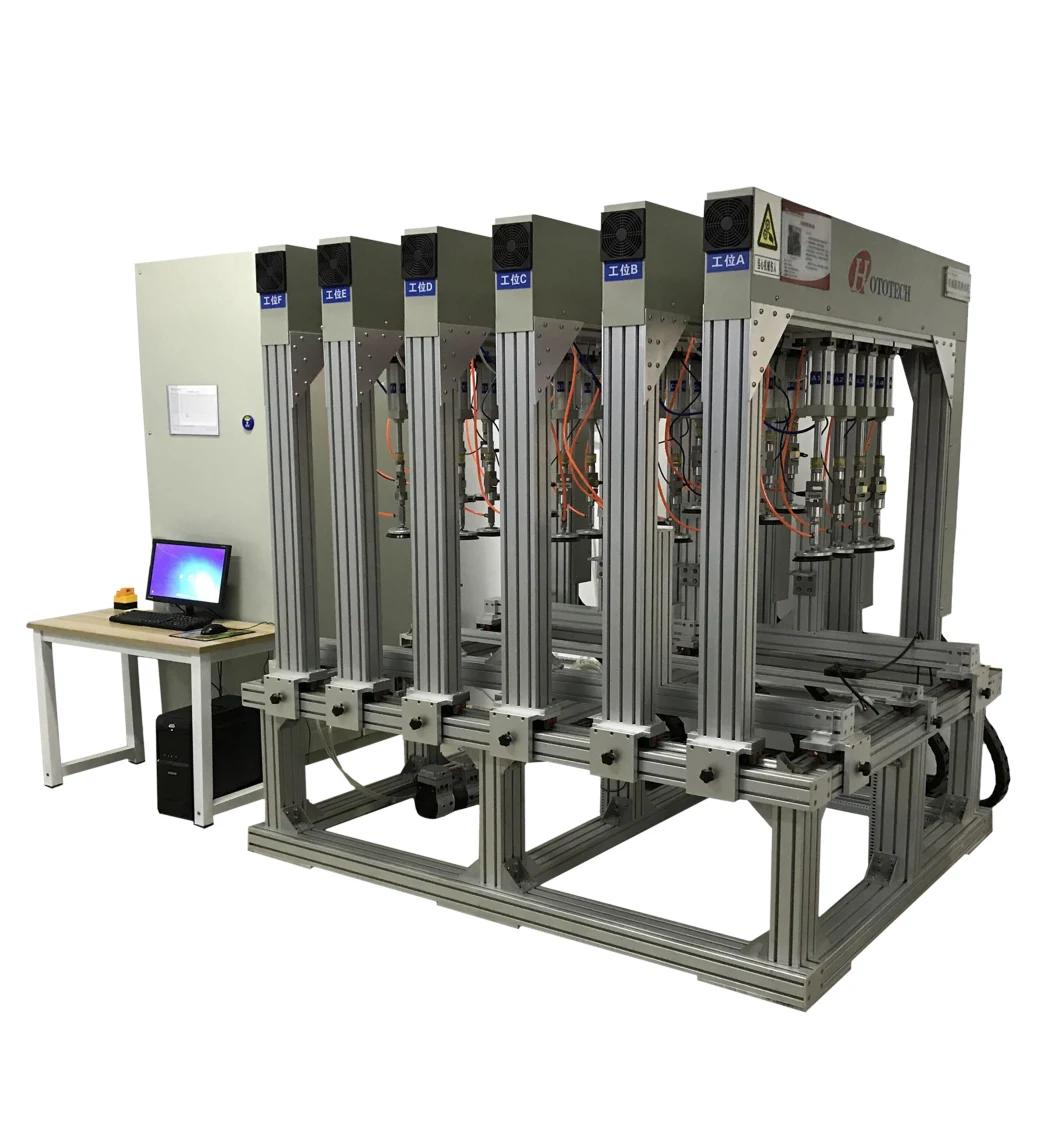

Low Temperatuare Dynamic Mechanical Load Tester/Testing Machine for solar panel

purpose
verification and ensure component under the different install angle suffer wind ,snow,or cover ice etc static ,dynamic load ability.width use to check PV component resistance press strength test , adopt dynamic holding press technical , simulate load test, in order to products under the load statue resistance press ability.    stanard
It's according to IEC61215 , IEC61646 etc standard


Specificaitons
1.Machine table exterior size:L 320 × D 180 × H 195 cm
2.Test positive load the max 2400 Pa,negative load the max 2400 Pa
3.Aluminum extrusion structure , platform and support under the test suffer the force statue not deformation ( aluminum surface with the paint dealing , ensure its not discolor)
4.Customization test platform clamp , can according to the pending specimen install method to do the adjust )
5.The max test size 120 × 240cm
6 .  Calibrator:350 kg
7 .DC constant voltage and current power :0~100Vor 0~15A adjustable;the resolution 0.001V or 0.001A;the voltage setting accurate more than 0.1V,current setting value accurate more than 0.1A.
8..Cylinder number:4 groups, in total 8 pcs
Cylinder outside diameter 80mm
Pneumatic cylinder single the max pressure > 6 bar
Pneumatic cylinder single group the max put out force > 300 kg
Pneumatic cylinder stretch stroke:150 mm
9.sucker number 8 groups , in total 32 PCS
Sucker diameter:120 mm
Every pneumatic attach a vacuum pressure monitor
Between the two suckers mid point  spacing can adjust 120mm~ and 400mm
10.Running environment : 0ºC , -20ºC , -40 ºC

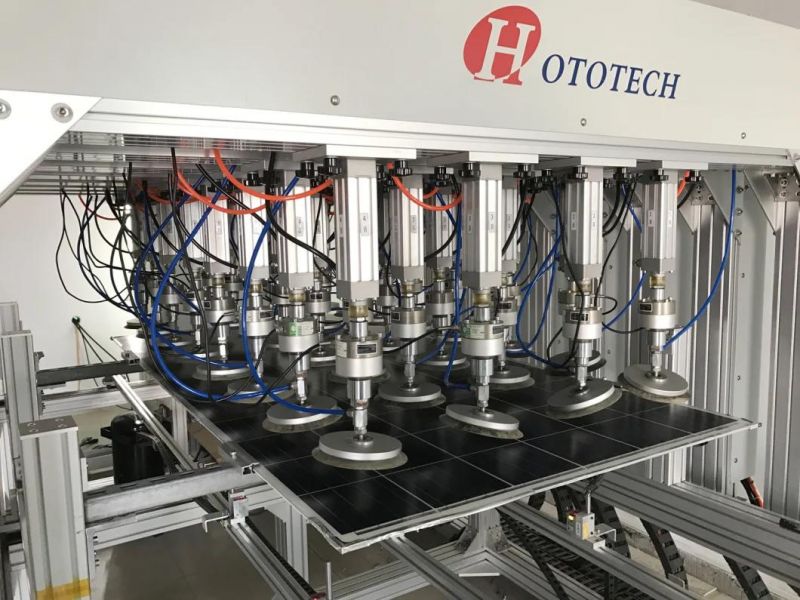

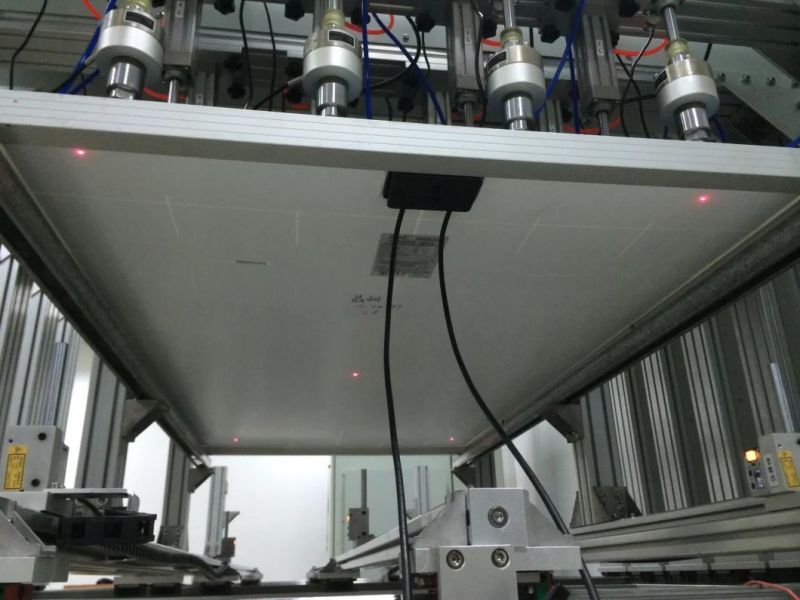

Product image show
