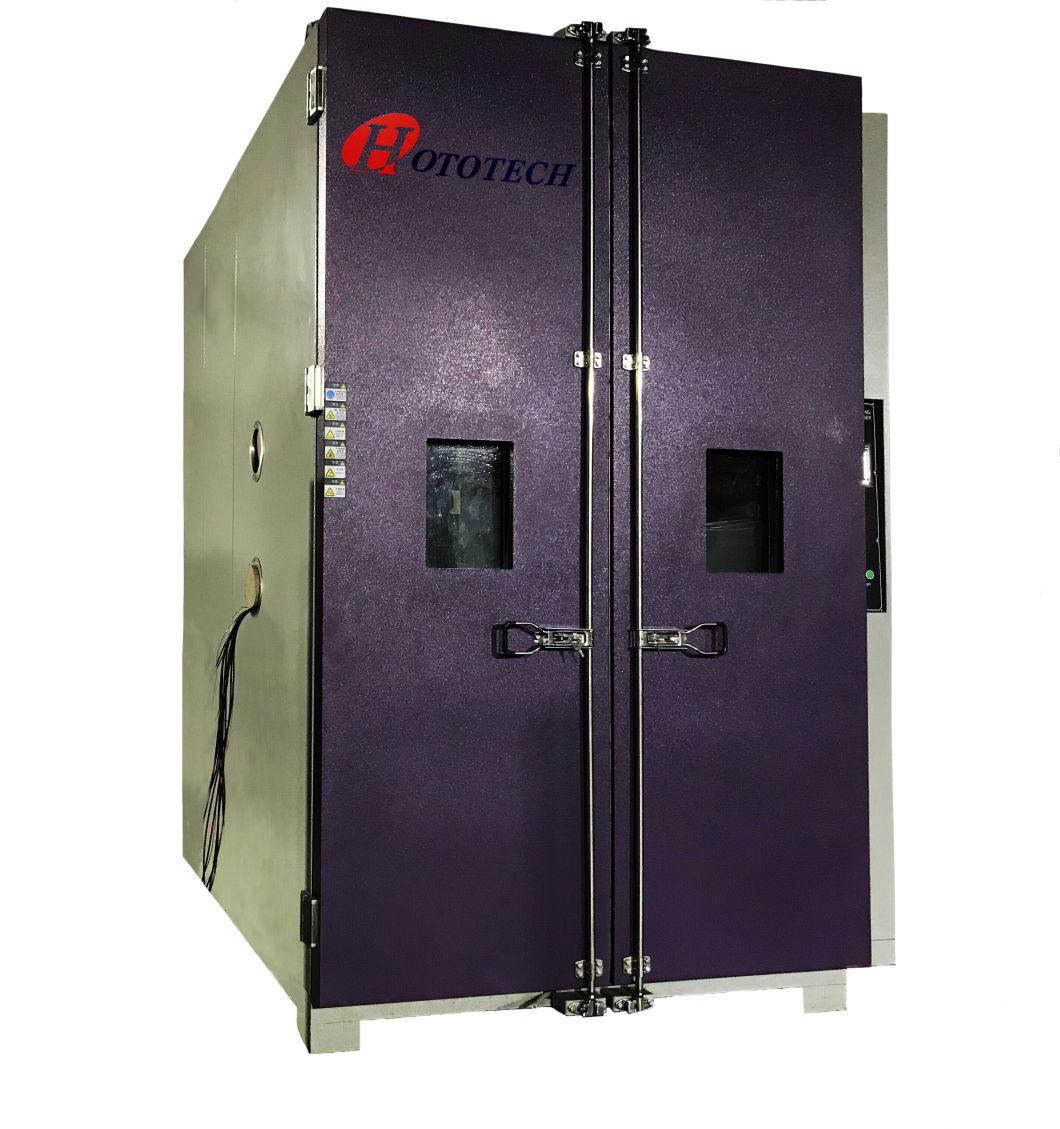

PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard

Dongguan Hong Tu Instrument Co., Ltd.
  • Certification：ISO
  • Warranty：1 Year
  • Product Name：Solar Panel Testing Environmental Chamber
  • Testing Standard：IEC 61215-2:2016
  • Testing Temperature：85 Degree Celsius
  • Relative Humidity：85%

Base Info

  • Model NO.：HTPV-17
  • Control Ways：Touch Screen +Pid Control
  • Testing Sample Quantity：12 PCS
  • Calculus Ways：Pid Automatic Calculus
  • Chamber Door Ways：Double Type
  • Power Supply：380V 60Hz
  • Testing Sample Dimensions：2m*1m (Can Customized)
  • Transport Package：Export Wooden Case
  • Specification：Solar panel Testing Environmental Chamber
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：50 Pieces Per Month

Description

Product NameSolar panel Testing Environmental ChamberTesting temperature85ºC±2ºCRelative humidity85%±5%Temperatuare fluctuation≤±1ºCTemperature uniformity≤2ºCHumidity range30~95%RHRelative humidity deviation≤±2.5% RH (humidity 75% RH)Control waysTouch screen +PID intelligence controlTesting sample quantity12 PCS test modulesInner and outer chamber sizeCan customizedInner chamber materialsstainless steel (SUS #304)Outer chamber sizesteel plate baking finishCommunicate interfaceRS -232 or RS-485 communicate interfaceInterface showTouch screen controlData acquisitionexport , view graphic functionPower380V 60HZ

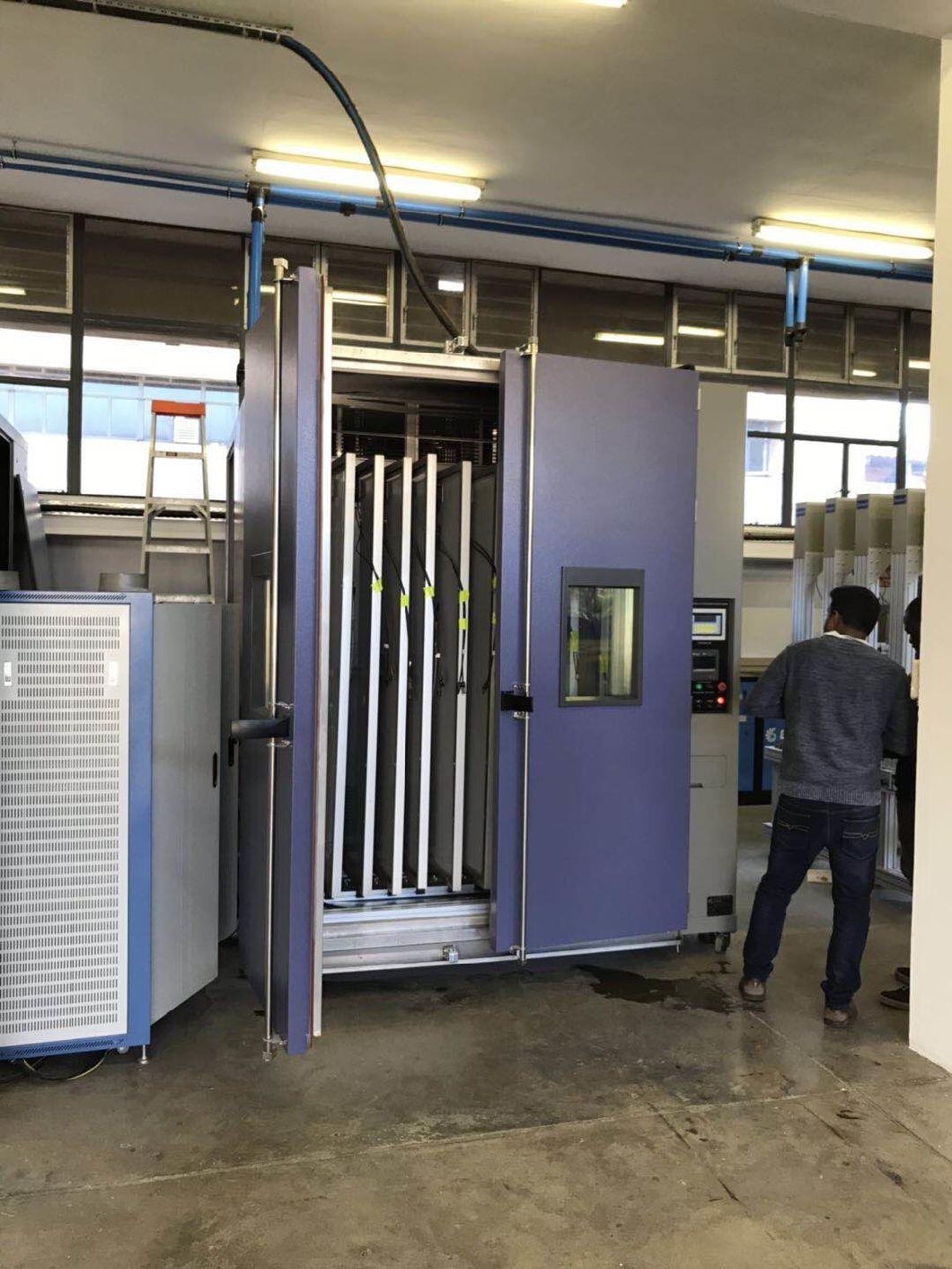

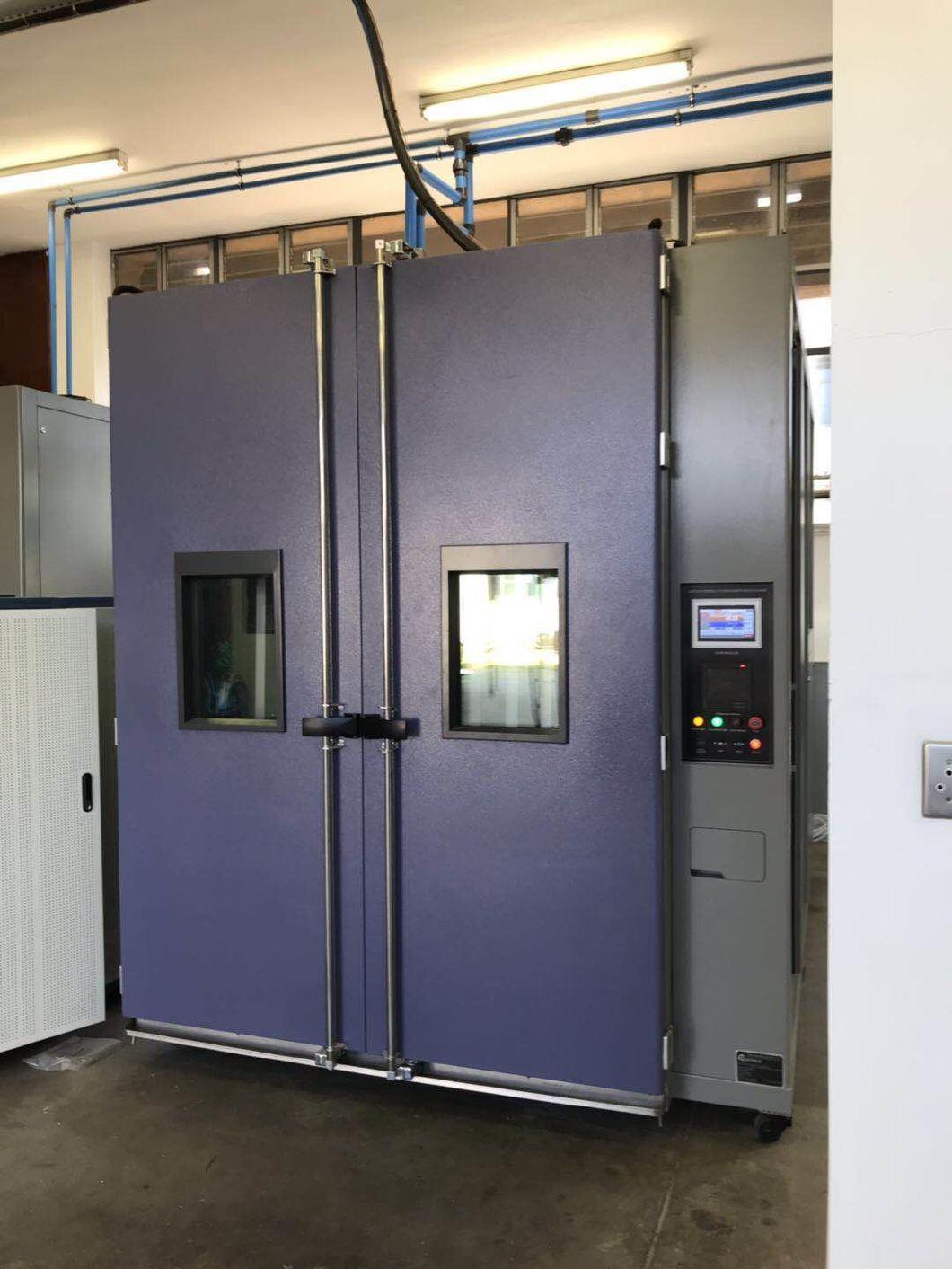

Testing Machine images show
PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard

PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard
PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard


ShangHai exibition
PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard


Customers with us
PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard

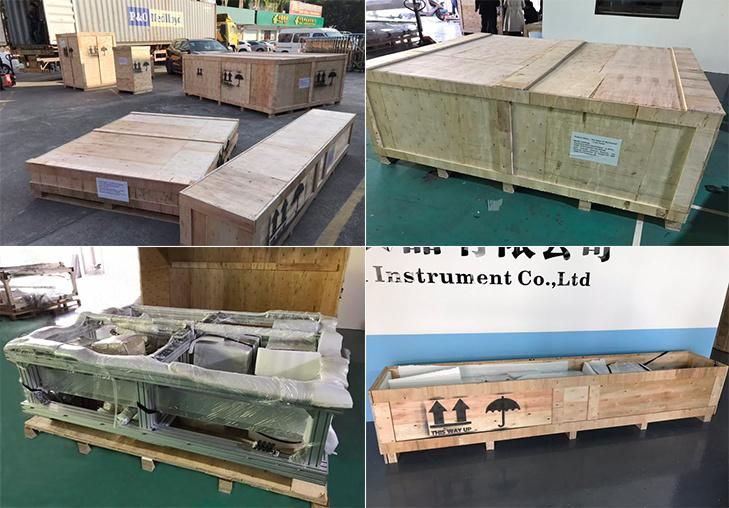

Package list
PV Module Solar Panel Testing Equipment Environmental Chamber with IEC61215-2: 2016 Standard
