• Model NO.：HD-E802-1
• Box Material：Stainless Steel
• Controller：LCD Touch Screen
• Wavelength Range：UVA: 320~420nm,UVB: 275~320nm
• Condensation Temperature Range：40ºC~60ºC
• Light Temperature Range：50ºC~70ºC
• Transport Package：Wooden Case
• Specification：ISO, ASTM, JIS
• Trademark：HAIDA
• Origin：Dongguan
• Production Capacity：30 Set , Month

Basic Info.

Model NO. HD-E802-1 Box Material Stainless Steel Controller LCD Touch Screen Wavelength Range UVA: 320~420nm,UVB: 275~320nm Condensation Temperature Range 40ºC~60ºC Light Temperature Range 50ºC~70ºC Transport Package Wooden Case Specification ISO, ASTM, JIS Trademark HAIDA Origin Dongguan Production Capacity 30 Set / Month

Product Description

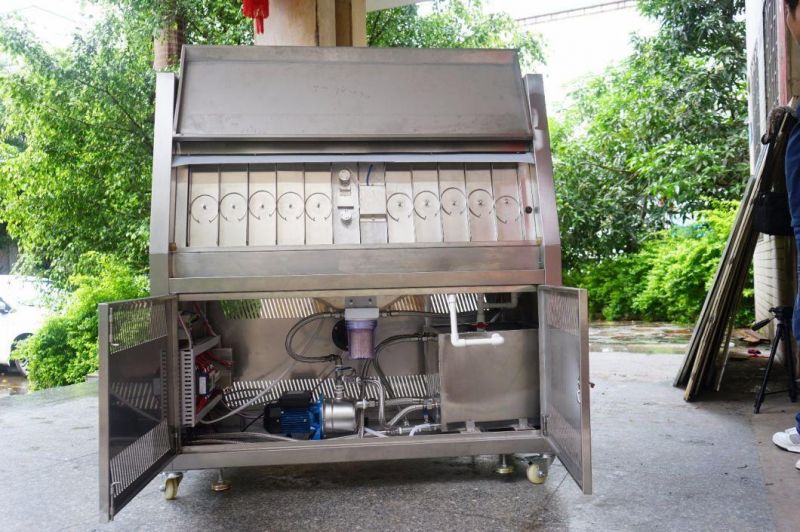

ISO Certificated UV Test Chamber for Material Weatherability Test
Description:

UV Test Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products for the performance of reliability tests, to predict product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

Design standard:ISO 4892-3ISO 11507; EN 534; EN 1062-4 BS 2782; JIS D0205; SAE J2020.

The main technical parameters:


Studio size	1140*400 *380mm(L*D*H)
Overall size	1300*500 *1460mm(L*D*H)
Center distance of the lamp	70mm
Distance of specimen from lamp surface	The distance between the specimen and the nearest parallel surface of the lamp surface is about 50mm
Wavelength range	UVA: 320~420nm Long wave black spot effect UV UVB: 275~320nm Medium wave erythema effect ultraviolet light
Radiation intensity	within 1W/m2/340nm
Temperature resolution	0.1ºC
Light temperature range	50ºC~70ºC / temperature tolerance is ±3ºC
Condensation temperature range	40ºC~60ºC / temperature tolerance of ±3ºC
Measuring range of blackboard thermometer	30~80ºC / tolerance is ±1ºC
Temperature control mode	PID self - tuning temperature control mode
Humidity range	about 45%~70% R.H.
Water tank requirements	water depth not more than 50mm, and with an automatic water supply controller
Standard specimen size	75×150mm 48pcs
Recommended operating environment	5~35ºC, 40%~85%R•H, 300mm away from the wall
Voltage	220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch

(The table parameters for the company Standard Model parameters, we support customer customization parameters)



Our Company:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Customer Feedback:


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
