Electronic DIN Type Abrasion Test Instrument with Competitive Price

Dongguan Haida Equipment Co., Ltd.
  • Type：Material Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-P307
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Certificate：ISO9001: 2008
  • Warranty Period：12 Months
  • Wheel Diameter：150mm
  • Wheel Length：460mm
  • Specimens Size：16mm, 6-15mm (D)
  • Fixture Load：2.5n
  • Weight Load：2.5n, 5n
  • Fixture Lateral Displacement：4.2mm,Wheel Each Lap
  • Wheel Rotate Speed：40rpm
  • Travel Reservations：40m,20m
  • Transport Package：Strong Wooden Case
  • Specification：ISO9001: 2008
  • Trademark：Haida
  • Origin：China
  • Production Capacity：80 Sets,Month

Description

Basic Info.

Model NO. HD-P307 Control Computer Control Weight 0-100Kg Power Source AC220V Certificate ISO9001: 2008 Warranty Period 12 Months Wheel Diameter 150mm Wheel Length 460mm Specimens Size 16mm, 6-15mm (D) Fixture Load 2.5n Weight Load 2.5n, 5n Fixture Lateral Displacement 4.2mm/Wheel Each Lap Wheel Rotate Speed 40rpm Travel Reservations 40m/20m Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin China Production Capacity 80 Sets/Month

Product Description

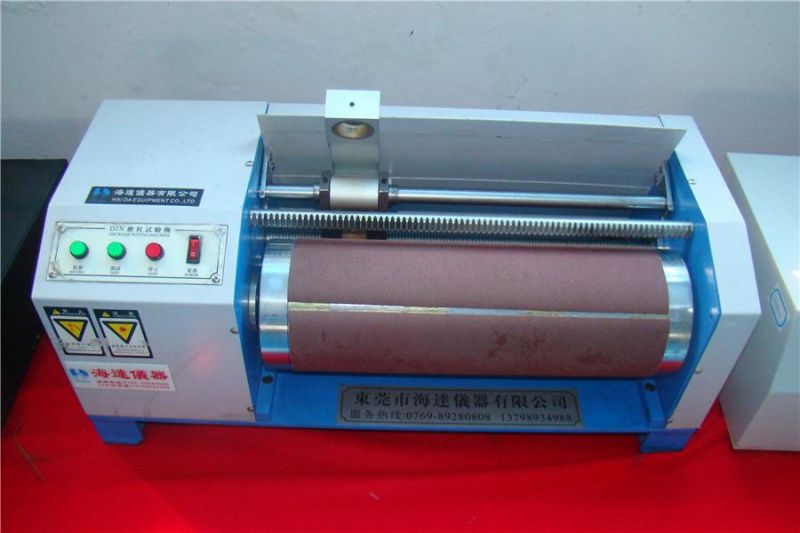

                    Electronic DIN Type Abrasion Test Instrument With Competitive Price

Product introduction:
Din Type Abrasion Test Instrument applies to the abrasion test of resilient material, rubber, tyre, transport belt, synthetic leather. It's effictive and esay to operate.

Standard Parameters:
  Model  HD-P307
  Specimens size  16mm, 6-15mm (D)
  Fixture load  2.5N
  Weight load  2.5N, 5N
  Fixture lateral displacement   4.2mm/wheel each lap
  wheel diameter  150mm
  wheel length  460mm
  wheel rotate speed  40rpm
  Travel reservations  40m/20m
  Abrasion speed  0.32m/sec
  Dip angle  3° the angle of the specimen
  back shaft with vertical roller face

Principle:
At a predetermined contact pressure and a given area, the sample and the sandpaper into a certain angle, the measurement sample at a certain level of friction generated on the abrasive wear resistance.
Sandpaper attached to the surface of the roller package, the sample is pressed against the drum with the sandpaper, so that the lateral movement of the drum sample.
Wear the sample in the cylindrical end of the generation, measurement value of the sample mass loss, calculate the volume density of the sample by the amount of wear.

According to the standard
This instrument reference standard: DIN-53516, ISO-4649, GB / T 9867.

Electronic DIN Type Abrasion Test Instrument with Competitive Price

Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
