• Model NO.：CXRW-300CL
• Deformation Measurement Range：- 0.1-10 mm
• Supporting Span of Specimen：64mm 100mm
• Transport Package：Plywood Case
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. CXRW-300CL Deformation Measurement Range - 0.1-10 mm Supporting Span of Specimen 64mm 100mm Transport Package Plywood Case Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

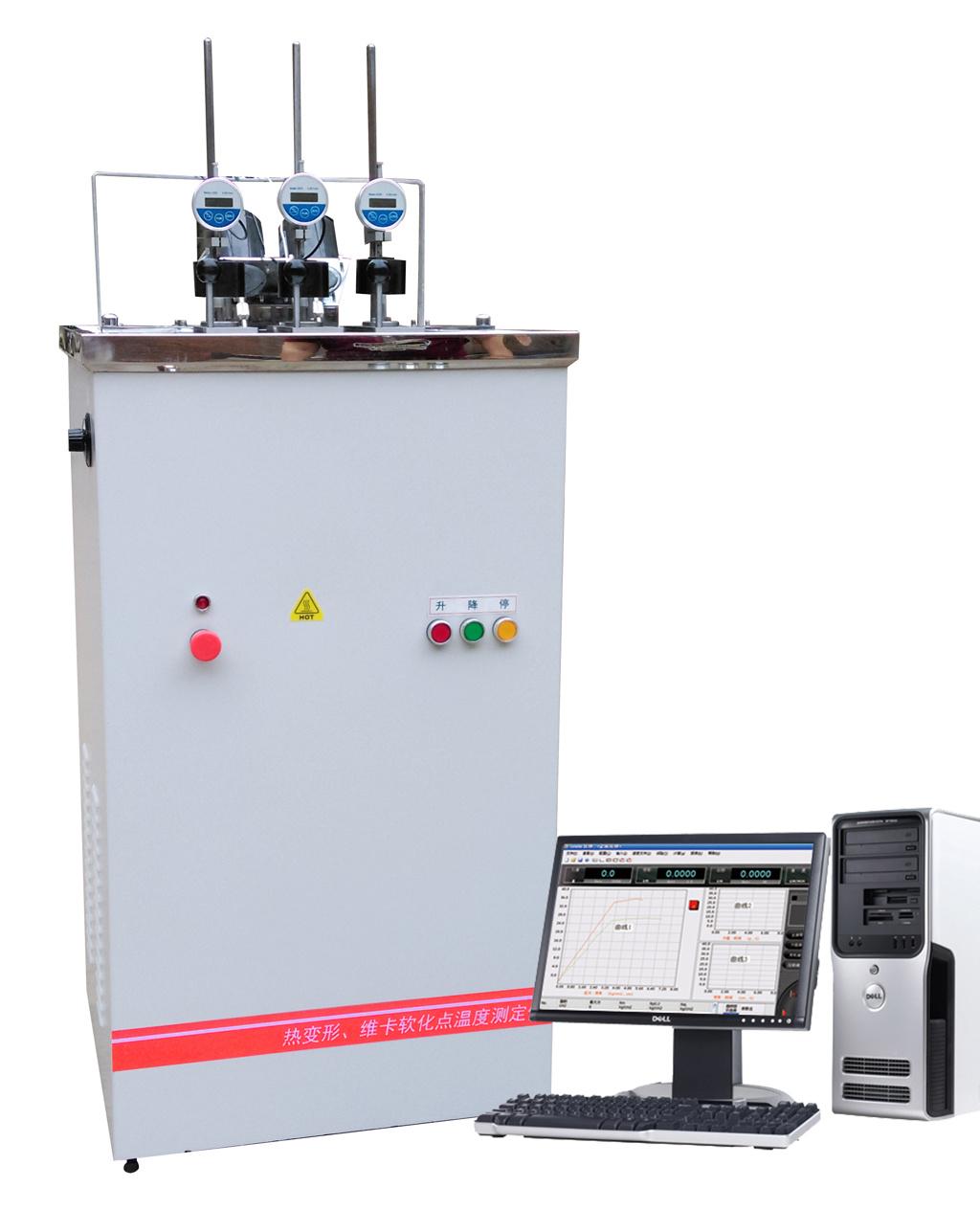

CXRW-300CL Computer Controlling heat Deformation Vicat Softening Point Temperature Tester for Plastic Material




Usage :
It is mainly used to measure the thermal deformation temperature and Vicat softening point temperature of non-metallic materials such as plastics, hard rubber, nylon, electrical insulating materials, long fiber reinforced composites, high strength thermosetting laminates and so on. Easy to operate and precise to control, it is a highly intelligent testing instrument, which is widely used in Colleges and universities, scientific research units and product quality supervision and inspection units.
The machine uses a Chinese operating interface to monitor the test temperature, draw the curve of temperature and deformation in real time, print the test report, and realize the historical storage. When the mouse clicks on any part of the deformation and temperature curve, the interface will automatically display the deformation and temperature value. High precision displacement sensor (intelligent remote micrometer) is selected to measure deformation.

Standards Complied:
GB/T 1634.1, GB/T-1634.2-2004 latest standard ,
GB/T 8802-2001 determination of Vicat Softening Point temperature for thermoplastics pipe and accessories,
ISO 2570 Determination of Vicat Softening Point temperature for PVC pipe and GB/T 1633 , ISO 75-1997(E), ISO 306-1987(E). ASTM D1525,ASTM D648.

Features :
1.Lifting System of Test Frame
The automatic lifting function of the test stand greatly facilitates the operation of the test, improves the test efficiency and avoids personal injury.
2.Advanced Control System
With super high stability, it is easier to install, test and analyze.
3.Humanized Software Control System
Simulated digital tube displays temperature and displacement, draws test curves, provides a variety of coordinate curves, centralizes data management, and can analyze test data, print test curves, test data and test reports.
4.Four-fold safety protection of condyle
Mechanical temperature upper limit protection switch, software temperature upper limit protection, automatic test stop and administrator operating keys and other multiple hardware and software safety design, to ensure the safe and stable operation of the test.
5.High Precision Measurement and Control System
High performance temperature sensor and advanced capacities grating digital micrometer are used to accurately measure the small changes of the sample. Advanced PID algorithm and all-photoelectric isolation phase modulation module are used to control the temperature rise, which ensures that the temperature rise rate error is less than 0.5 C.

Technical Parameters:
The temperature control range: room temperature ~ 300 °C;
Maximum temperature error: ± 0.5 °C;
Temperature rising speed: 50 C/h, 120 C/h, or between 50 and 120 C/h;
 Temperature measurement point: 1;
Number of test frames: 3;
Deformation measuring instruments: high precision digital display micrometer;
Deformation measurement range: - 0.1-10 mm;
Maximum deformation error: +0.005mm;
Deformation resolution: 0.001 mm;
Supporting span of specimen: 64mm, 100mm;
It has software upper limit temperature protection function and hardware upper limit temperature protection function (temperature switch imported from Korea, with current of 30A, not pseudo protection, heating power of 4000W, can ensure temperature rise to 300 degrees at 120 C/h speed)
The thermal expansion coefficient of the specimen frame is less than0.005 / 100 °C(emphasis, directly affecting experimental results);
MCU and PC distributed control system are adopted in the control mode.

It has an automatic lifting system for the sample stand.
Use medium: methyl silicone oil or transformer oil;
Cooling mode: natural cooling above 150 C, water cooling below 150 C or natural cooling.

Packing list:
Main machine                              1
Sample frame                                   3
Thermal deformation pressure      3
Vicat pressure pin                            3
Test Software                                   1
Power line                                        1
Signal communication line            1
Weight                                               1 set
Dial Indicator  -0.1 ~ 10mm Measurement        3
