Sx-2.5-12 Electric Heating Muffle Furnace for Ash Analyzing

Jinan Chenji International Trade Co., Ltd.
  • After-sales Service：Whole Life
  • Power Supply：220V 380V
  • Certification：TUV, ISO
  • Warranty：1 Year
  • Model No.：Sx-2.5-12
  • Temperature：Rt + 50-1000 ºC

Base Info

  • Model NO.：SX-2.5-12
  • Timing Range：1-9999s
  • Atmospheric Pressure：86-106kpa.
  • Power：2.5kw
  • Studio Size：80 * 120 * 200mm
  • Temperature Resolution：1 ºC
  • Relative Humidity：85%
  • Production Capacity：100 PCS , Month

Description

Basic Info.

Model NO. SX-2.5-12 Timing Range 1-9999s Atmospheric Pressure 86-106kpa. Power 2.5kw Studio Size 80 * 120 * 200mm Temperature Resolution 1 ºC Relative Humidity 85% Production Capacity 100 PCS / Month

Product Description

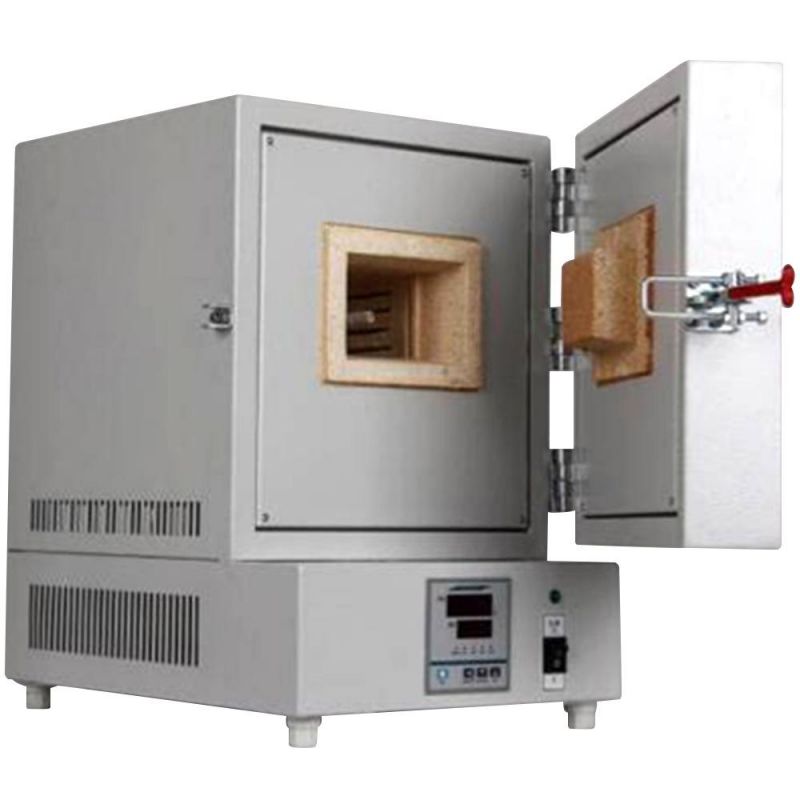

SX-2.5-12 Electric Heating Muffle Furnace for Ash analyzing

Sx-2.5-12 Electric Heating Muffle Furnace for Ash Analyzing
Functions:

The integrated muffle furnace is used for metallurgical factories, mining enterprises, colleges and universities, scientific research, medical institutions and various laboratories.

Characteristics
SX2 series integrated muffle furnace is composed of a box body, a temperature control system and. The shell of the box body is made of high-quality steel plate by stamping. Its surface is electrostatic spray molded and has good heat insulation performance. Small heat loss, good energy saving effect.

Temperature control system: it adopts micro-computer artificial intelligence regulation technology, with PID fuzzy control, self-tuning function and high control accuracy.

The furnace has the characteristics of balanced temperature field, low surface temperature, fast temperature rise and fall rate and energy saving.


Working conditions

1. Ambient temperature + 5-40 ºC.

2. Relative humidity ≤ 85% RH.

3. Atmospheric pressure 86-106kpa.

4. There is no strong vibration around, and the clearance around is more than 50cm.

5. The test chamber shall be free from direct sunlight and heat source radiation.

6. There is no strong air flow to directly blow the box.

7. There is no high concentration of dust and corrosive substances around.


Technical parameters

Temperature range: RT + 50-1000 ºC

Power supply voltage: 220V 50Hz

Input power: 2.5kW

Studio size: 80 * 120 * 200mm

Overall dimension: 440 * 460 * 500mm

Constant temperature fluctuation ± 2 ºC

Temperature resolution: 1 ºC

Timing range: 1-9999min.
