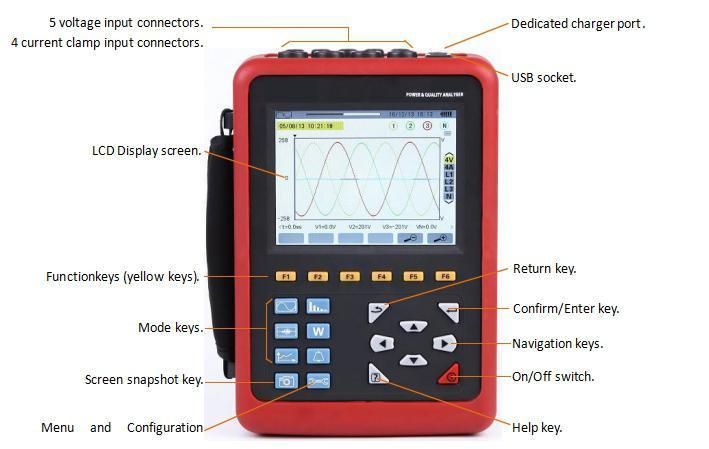

Factory 3 Phase Power Quality Measuring Electrical Power Quality Analyser
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Type：Digital Power Analyzer
- Accuracy Grade：1
- Display：Digital
- Control：Computer Control
Base Info
- Model NO.：HZCR-5000
- Weight：0-100Kg
- Power Source：AC220V
- Accuracy Class：0.2
- Current Measurement Range：5A~2000A (Optional)
- Power Supply：AC100~240V,45Hz-55Hz
- Power Consumption：≤ 3va
- Communication Interface：3 Phase Power Quality Analyzer
- Power：Electronic
- Size：320mmx240mmx130mm
- Voltage：0-400V(Auto)
- Current：(Clamp Type) 5A,25A 100A,500A
- Frequency Testing Range：45~55Hz
- Transport Package：Wooden Box with Foam Inside
- Specification：CE,ISO,IEC
- Trademark：HuaZheng
- Origin：Hebei, China
- HS Code：9030899090
- Production Capacity：100 PCS,Month
Description
WeightHost: 1.6kg (with battery). 10Asmall sharp current clamp: 170g×4; 100A circle current clamp: 190g×4; 1000Acircle current clamp: 510g×4; Test wires and power adapter: 900g; Total weight: about 7.8kg (with packaging). Length of voltage test wire 3m. Length of current sensor wire 2m. Working temperature and humidity -10°C~40°C; below 80%Rh. Storage temperature and humidity -10°C~60°C; below 70%Rh. Input impedance Input impedance of test voltage: 1MΩ. Withstand voltage Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell. Insulation Between instrument wiring and shell ≥10MΩ. Structure Double insulation, with insulation vibration-proof sheath. Safely rules IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

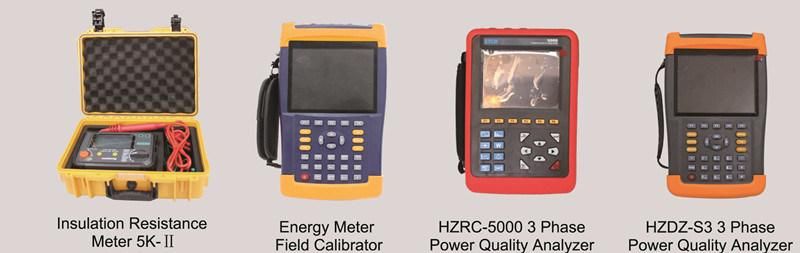

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
