Wds-500n Digital Electronic Rubber Plastic Wire Universal Tensile Tester

Jinan Kason Testing Equipment Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：WDS-05
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Delivery Time：3 Days After Get Tt Payment
  • Max Test Load：200n-5kn
  • Transport Package：Standard Export Packing
  • Specification：425*400*1315mm
  • Trademark：HST or OEM
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：300 Sets Per Month

Description

Single column double spacesControl methodcomputer controlLoad accuracy1 classLoad range2%~100%F·S/0.2%-100% FS Displacement Resolution 0.01mmTest speed0.05-500mm/min(can be customized) Tensile space600mm(can be customized)Compression space600mm(can be customized)Power supplyAC220V±10%,50Hz(can be customized)GripsWedge type, plate type and other grips as consumer's demand Dimension425*400*1315mmWeight90kg

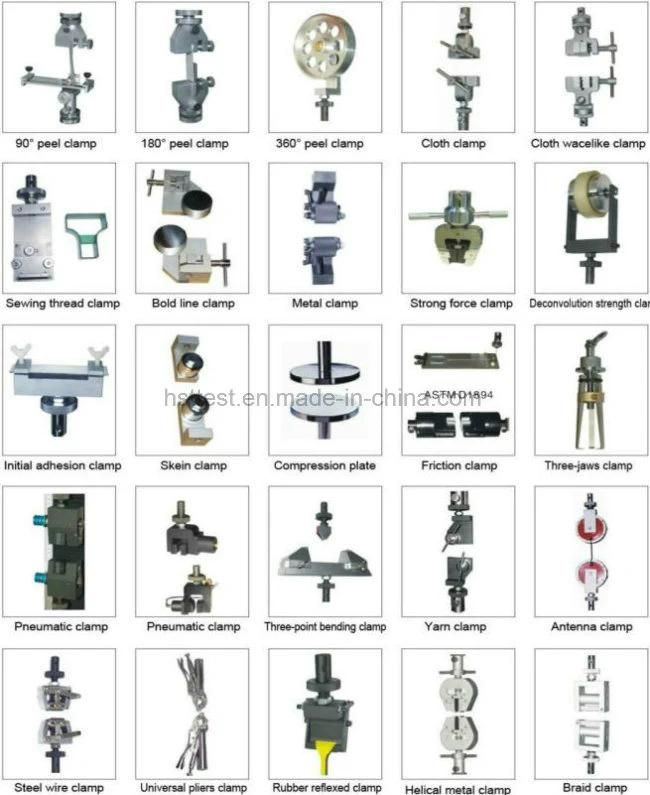

Fixtures for choice according to different material:
