• Model NO.：WDS-100
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：5 Working Days After Get Tt
• Color：Customized
• Power Supply：220V 50Hz Single Phase
• Transport Package：Standard Export Packing
• Specification：750*510*1900mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. WDS-100 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Delivery Time 5 Working Days After Get Tt Color Customized Power Supply 220V 50Hz Single Phase Transport Package Standard Export Packing Specification 750*510*1900mm Trademark HST Origin China HS Code 9031809090 Production Capacity 300 Sets Per Month

Product Description

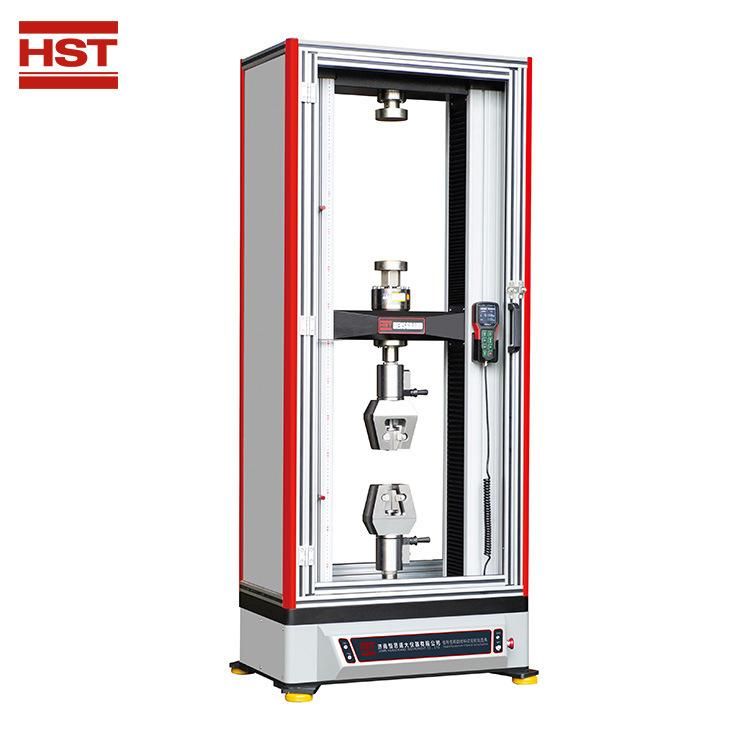

100KN Two Columns Electronic Universal Testing Machine (WDS-100 display control)



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:

Model	WDS-100
Max. Load	100 KN
Structure	Four-column Floor Model (Upper Is Tensile And Lower Is Compression)
Control Method	Single Chip Control
Load Accuracy	1 Class
Load Range	2%~100%F·S
Displacement Resolution	0.04um
Test Speed	1~200mm/min
Tensile Space	600mm (Can be customized)
Compression Space	600mm (Can be customized)
Test Width	450mm (Can be customized)
Power Supply	AC220V±10%, 50Hz (Can be customized)
Grips	Wedge Type, Plate Type And Other Grips As Customers' Demand
Weight	400 KG
Dimension	750*510*1900mm
