• Model NO.：GD-H1722
• Foaming Test：Foaming Characteristics of Lubricating Oils at 150
• ASTM D6082：Foaming Characteristics Test Apparatus
• Foaming Characteristics Tester：Oil Foam Test Apparatus as Per ASTM D6082
• Foaming Characteristics Apparatus：High Temp Foaming Characteristics Test Apparatus
• Temperature Control Method：Import Pid Digital Display Thermostat
• Temperature Control Accuracy：150+,-0.1c
• Heating Method：Liquid Bath Heating
• Working Unit：2 Tubes
• Flow Control：Electronic Flow Meter
• Timing Mode：LCD Touch Screen Automatic Timing
• Transport Package：Wooden Case or Plywood
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1722 Foaming Test Foaming Characteristics of Lubricating Oils at 150 ASTM D6082 Foaming Characteristics Test Apparatus Foaming Characteristics Tester Oil Foam Test Apparatus as Per ASTM D6082 Foaming Characteristics Apparatus High Temp Foaming Characteristics Test Apparatus Temperature Control Method Import Pid Digital Display Thermostat Temperature Control Accuracy 150+/-0.1c Heating Method Liquid Bath Heating Working Unit 2 Tubes Flow Control Electronic Flow Meter Timing Mode LCD Touch Screen Automatic Timing Transport Package Wooden Case or Plywood Origin Chongqing of China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Foaming Characteristics Test Apparatus for the foaming characteristics of lubricating oils at 150C


Introduction:

Foaming of lubricating oils in applications involving turbulence, high speed gearing or high volume pumping can cause inadequate lubrication, cavitation, overflow and premature oxidation.The standard ASTM D6082 describes the procedure for determining the foaming characteristics of lubricating oils (specifically transmission fluid and motor oil) at 150ºC.


Functional Characteristics:

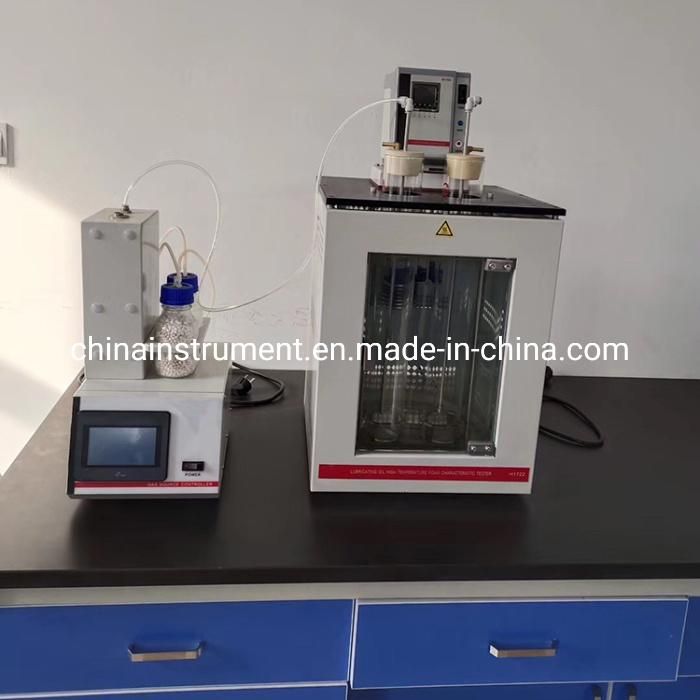

1. The Foaming Characteristics Test Apparatus is a split type, including a heating bath and an accurate flow meter.
2. High temperature resistant borosilicate glass cylinder, Φ300×450mm, in line with standard requirements.
3. Environmental oil bath heating to reduce the damage of oil smoke to the human body, efficient heat insulation effect.
4. Stainless steel heater.
5. Very accurate electronic flowmeter, automatic constant current 200±5ml/min.
6. Air filter with glass wool.
7. Micro-processing thermostat and PID control digital display temperature accuracy 0.1 °C, Pt100 RTD temperature probe.
8. Operating temperature range: room temperature ~ 150 ° C, safety measures to prevent overheating or low liquid level.
9. Sputtered turbine agitator to ensure the uniformity of bath temperature.
10. Touch screen operation, foam volume segmentation timing wind reminder.

Application Range:

1. Lubricant production enterprises
2. Detection department

Technical Parameters:


Model No.	GD-H1722 Lubricating Oil Foaming Characteristics Test Apparatus
Applicable standard	ASTM D6082, SH/T0722
Temperature control method	Import PID digital display thermostat
Temperature control accuracy	150±0.1°C
Heating method	Liquid bath heating
Working unit	2 tubes
Flow control	Electronic flow meter, LCD touch screen digital display
Timing mode	LCD touch screen automatic timing
Working power	AC220V/50HZ
Total power	2500W
Instrument size	400mm*360mm*760mm
Net weight	40KG
